I really surprised by your works and intentions to help people,
Now allow me to get to my point,
I need a voltage regulator with these capabilities as possible
1-focus on low voltage problems rather than high voltages preferably around 100v and up to 250v
need it to be capable of starting and sustaining 3.5 ton air
conditioner about 30 amps and other design capable of sustaining 5A for
3-Avoid big transformer as much as possible, I like ferrite transformers
I found this idea of stabilizer ( https://drive.google.com/file/d/0B5Ct1V0x1-jac19IdzltM3g4N2s/view?usp=sharing )
here is the link I need an schematic with the same idea
low input voltage around 100-135v
high current to start and sustain 3.5 ton air conditioner and second design for lightening of 6A
if you have time I want third design with a crazy 100A stabilizer for my whole home
I have requested design earlier but I Was having no idea this design looks pretty good to my with elegant efficiency
like it to has an LCD to display parameters and a custom name,high
voltage cut off, over heat protection but drop it if its makes the
design more complex.
I know what I have asked for is way too much to accomplish in one cirute so drop the impossibles
sum up I need three designs one is for high current of air
conditioner,two the same regulator but with secondary features mentioned
and three one for lightening
you may wonder why its that low 100v
input required, most of the time in summer we have no public electricity
but we have local generator with electricity of 120-170v at home with
our ceiling fan barely rotates
Public electricity is grid electricity which has high current but low
voltage with supply time at its best of eight hours a day in summer, on
the other hand as I said we have big local generators during this time
we pay on the basis of ampers (rated current of the circuit breaker for
local electricity) for example say you want 50A they will supply you
electricity with circuit breaker of 50A and you have to pay for 50A
regardless of your usage (they will assume you are using the whole 50A),
so in my house I pay for grid electricity and local generator
electricity, local generator is not my home generator, you can imagine
it as a second grid electricity but owned by private sector, in both
cases we have voltage problem but not current, lastly I now that the
voltage optimizer in boost mode will use more current to produce the
required voltage on the The principle of conservation of energy
(V1xI1=V2xI2) assuming 100% efficiency,the current solution I use now is
step up transformer which will reduce the usable current may be to 30A
of 50A but with good voltage but it is not safe because of lack
regulation,on public electricity we have apparently no limits we pay on
the basis of KWh,Before the transformer I have purchased a voltage
regulator but it did not work because the minimum of 180V is not met.
The complete design for the proposed H-bridge mains voltage stabilizer circuit for controlling 100V to 220V can be witnessed in the following figure:
The circuit is functioning is quite similar to one of the earlier discussed posts regarding a solar inverter circuit for a 1.5 ton air conditioner.
However for implementing the intended automatic 100V to 220V stabilization we employ a couple of things here: 1) the 0-400V auto transformer boost coil and the self optimizing PWM circuit.
The above circuit utilizes a full bridge inverter topology using the IC IRS2453 and 4 N-channel mosfets.
The IC is equipped with its own in-built oscillator whose frequency is appropriately set by calculating the indicated Rt, Ct values. This frequency becomes the recommended operating frequency of the inverter which could be 50Hz (for 220V input) or 60Hz (for 120V input) depending on the country utility specs.
The bus voltage is derived by rectifying the input mains voltage and is applied across the H-bridge mosfet network.
The primary load connected between the mosfets is a boost auto-transformer positioned for reacting with the switching mains DC voltage and for generating a proportionately boosted 400V across its terminals through back EMFs.
However with the introduction of a PWM feed for the low side mosfet this 400V from the coil can be controlled proportionately to any desired lower RMS value.
Thus at max PWM width we can expect the voltage to be 400V and at minimum width this could be optimized close to zero.

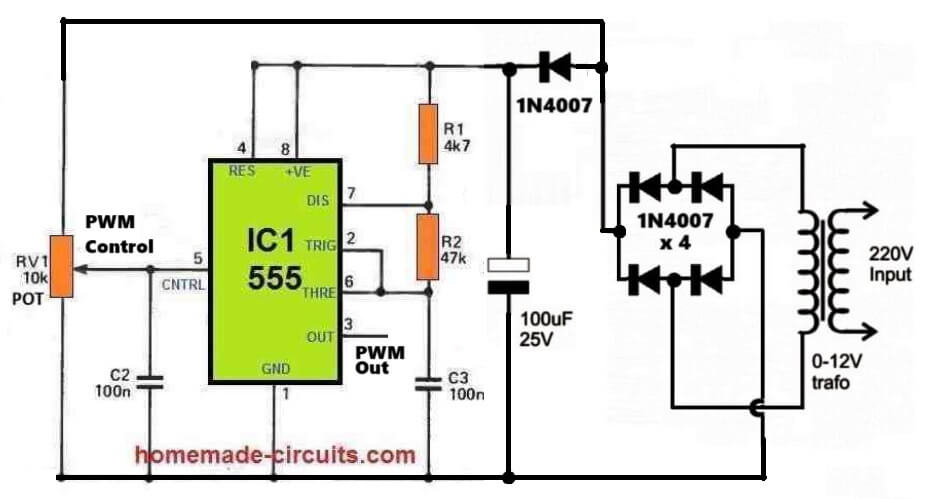

The PWM is configured using a couple of IC 555 for generating a varying PWM in response to the varying mains input, however this response is inverted first before feeding the low side mosfets, which implies that as the mains input drops, the PWMs become wider and vice versa.
To correctly set this response the 1K preset shown attached with pin#5 of the IC2 in the PWM circuit is adjusted such that the voltage across the auto-transformer coil is around 200V when the input is around 100V, at this point the PWM could be at the max width level and from here on the PWMs become narrower as the voltage increases, ensuring an almost constant output at around 220V.
Thus, if the mains input goes higher the PWM tries to pull it down by narrowing the pulses and vice versa.
How to make the Boost Transformer.
A ferrite transformer cannot be used for the above discussed 100V to 220V H-bridge mains voltage stabilizer circuit since the base frequency is adjusted to 50 or 60 Hz, therefore a high grade laminated iron core transformer becomes the ideal choice for the application.
It can be made by winding a single end to end coil of around 400 turns over a laminated EI iron core, using 10 strands of 25 SWG wire...this is an approximate value and is not a calculated data...the user may take the help of a professional auto transformer manufacturer or winder for getting the actual required transformer for a given application need.
In the linked pdf document it is written that its proposed design does not require the AC to DC conversion for the circuit, which looks incorrect and is practically not feasible, because if you are using a ferrite boost transformer inverter then the input AC has to be first converted to DC. This DC is then converted to a high switching frequency for the ferrite transformer whose output is switched back to the specified 50 or 60Hz in order to make it compatible with the appliances.
