2 Best Long Duration Timer Circuits Explained

2 Best Long Duration Timer Circuits Explained

In this post we learn how to make 2 accurate long duration timer circuits ranging from 4 hours to 40 hours, which can be upgraded further for getting even longer delays. The concepts are full adjustable.

A timer in electronics is essentially a device which is used for producing time delay intervals for switching a connected load. The time delay is set externally by the user as per the requirement.

Introduction

Please remember that you can never produce long accurate delays using only a single 4060 IC or any CMOS IC.

I have confirmed practically that beyond 4 hours IC 4060 begins deviating from its accuracy range.



IC 555 as a delay timer is even worse, it's almost impossible to get accurate delays even for an hour from this IC.

This inaccuracy is mostly due to capacitor leakage current, and inefficient discharging of the capacitor.

So beware of misleading designs and concepts.

ICs like 4060, IC 555, etc basically generate oscillations which are adjustable right from a few Hz to many Hz.

Unless these IC are integrated with another divider counter device such as IC 4017, getting very high accurate time intervals may not be feasible. For getting 24 hour, or even days and week intervals you will have integrate a divider/counter stage as shown below.

In the first circuit we see how two different modes of ICs can be coupled together to form an effective long duration timer circuit.

1) Circuit Description

Referring to the circuit diagram.

  1. IC1 is an oscillator counter IC consisting a built in oscillator stage and generates clock pulses with varying periods across its pins 1,2,3,4,5,6,7,9,13,14,15.
  2. The output from pin 3 produces the longest time interval and therefore we select this output for feeding the next stage.
  3. The pot P1 and the capacitor C1 of IC1 can be used for adjusting the time span at it pin 3.
  4. The higher the setting of the above components the longer the period at pin #3.
  5. The next stage consists of decade counter IC 4017 which does nothing but increase the time interval obtained from IC1 to ten folds. It means if the the time interval generated by IC1s pin #3 is 10 hours, the time generated at pin #11 of IC2 would be 10*10 = 100 hours.
  6. Similarly if the time generated at pin #3 of IC1 is 6 minutes, would mean a high output from pin#11 of IC1 after 60 minutes or 1 hour.
  7. When power is switched ON, capacitor C2 makes sure that the reset pins of both the ICs are appropriately reset, so that the ICs begin counting from zero rather than from some irrelevant intermediate figure.
  8. As long as the counting progresses, pin #11 of IC2 remains at logic low, such that the relay driver is held switched OFF.
  9. After the set timing lapses, pin#11 of IC2 goes high activating the transistor/relay stage and the subsequent load connected with the relay contacts.
  10. The diode D1 ensures that the output from pin#11 of IC2 locks the counting of IC1 by providing a feed back latch signal at its pin #11.
    Thus the whole timer latches until the timer is switched OFF and restarted again for repeating the entire process.

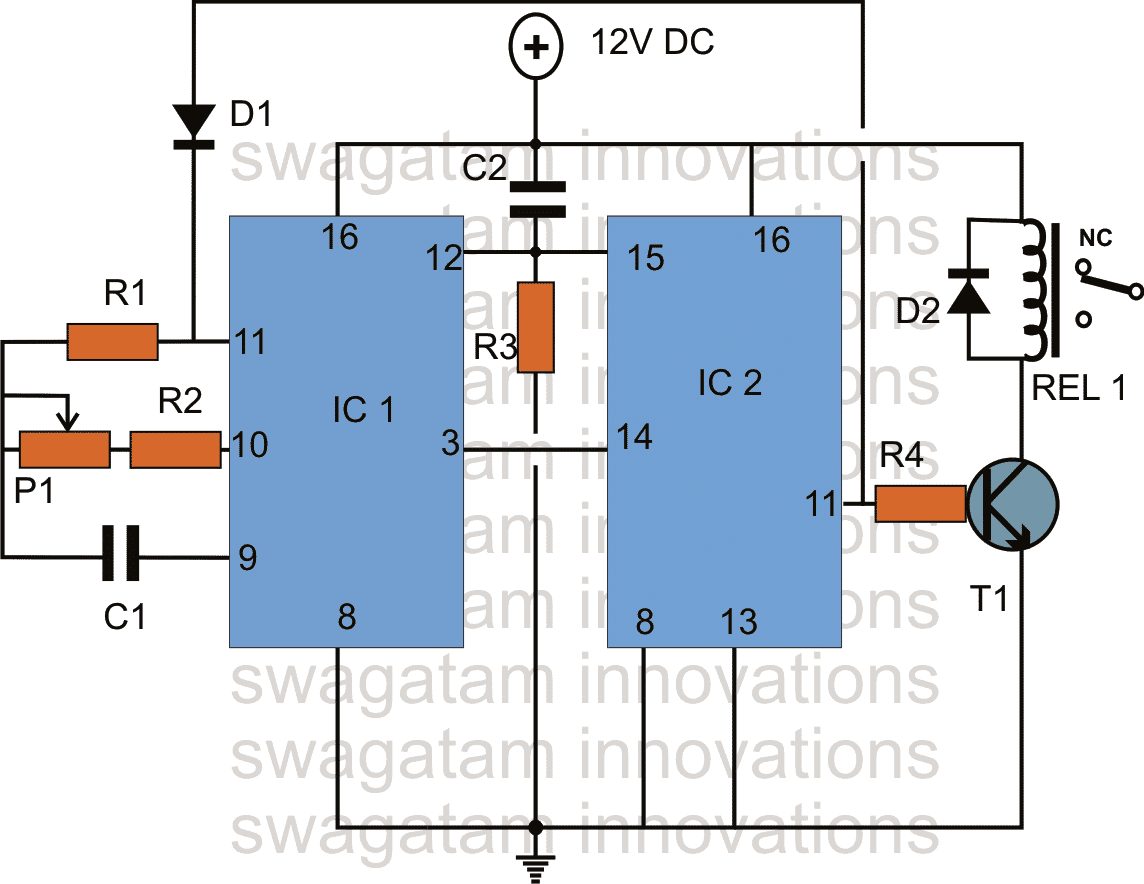

long duration timer using IC 4060 and IC 4017

Parts List

R1, R3 = 1M
R2, R4 = 12K,
C1, C2 = 1uF/25V,
D1, D2 = 1N4007,
IC1 = 4060,
IC2 = 4017,
T1 = BC547,
POT = 1M linear
RELAY = 12V SPDT

PCB Layout

Long Duration timer PCB layout

Formula for Calculating Delay output for IC 4060

Delay Period = 2.2 Rt.Ct.2(N -1)

Frequency = 1 / 2.2 Rt.Ct

Rt = P1 + R2

Ct = C1

R1 = 10(P1+R2)

2) Using Only BJTs

The next design explains a very long duration timer circuit which uses only a couple of transistors for the intended operations.

Long duration timer circuits normally involve ICs for the processing because executing long duration delays requires high precision and accuracy which is possible only using ICs.

Achieving High Accuracy Delays

Even our very own IC 555 becomes helpless and inaccurate when long duration delays are expected from it.

The encountered difficulty for sustaining high accuracy with long duration is basically the leakage voltage issue, and the inconsistent discharging of the capacitors which leads to wrong starting thresholds for the timer producing errors in the timing for each cycles.

The leakages and inconsistent discharge issues become proportionately bigger as the capacitor values get bigger which becomes imperative for obtaining long intervals.

Therefore making a long duration timers with ordinary BJTs could be almost impossible as these devices alone could be too basic and cannot be expected for such complex implementations.


So How can a Transistor Circuit Produce Long Accurate Duration Time Intervals?

The following transistor circuit handles the above discussed issues credibly and can be used for acquiring long duration timing with reasonably high accuracy (+/-2%).

It's simply due to effective discharging of the capacitor on every new cycle, this ensures that the circuit begins from zero, and enables accurate identical time periods for the selected RC network.

Circuit Diagram

long duration timer circuit using transistors only

The circuit may be understood with the help of the following discussion:

How it Works

A momentary push of the push button charges the 1000uF capacitor fully and triggers the NPN BC547 transistor, sustaining the position even after the switch is released due to the slow discharging of the 1000uF via the 2M2 resistor and the emitter of the NPN.

Triggering of the BC547 also switches ON the PNP BC557 which in turns switches ON the relay and the connected load.

The above situation holds on as long as the 1000uF is not discharged below the cut off levels of the the two transistors.

The above discussed operations are quite basic and make an ordinary timer configuration which may be too inaccurate with its performance.

How the 1K and 1N4148 Work

However the addition of the 1K/1N4148 network instantly the transforms the circuit into a hugely accurate long duration timer for the following reasons.

The 1K and the 1N4148 link ensures that each time the transistors break up the latch due to insufficient charge in the capacitor, the residual charge inside the capacitor is forced to discharge fully through the above resistor/diode link via the relay coil.

The above feature makes sure that the capacitor is completely drained off and empty for the next cycle and thus is able to produce a clean start from zero.

Without the above feature the capacitor would be unable to discharge completely and the residual charge inside would induce undefined start points making the procedures inaccurate and inconsistent.

The circuit could be even further enhanced by using a Darlington pair for the NPN allowing the use of much higher value resistors at its base and proportionately low value capacitors. Lower value capacitors would produce lower leakages and help to improve the timing accuracy during the long duration counting periods.

How to Calculate the Component Values for the Desired Long Delays:

Vc = Vs(1 - e-t/RC)

Where:

  1. Vc is the voltage across the capacitor
  2. Vs is the supply voltage
  3. t  is the elapsed time since the application of the supply voltage
  4. RC is the time constant of the RC charging circuit

PCB Design

long duration timer PCB with transistors
