6 Useful DC Cell phone Charger Circuits Explained

Last Updated on December 26, 2020 by Swagatam 252 Comments

A DC cell phone or mobile phone charger is a device which charges a cellphone from an available DC supply source. The device converts the unregulated DC source into a constant current and constant voltage output which becomes safe for any mobile phone charging.

In this article we learn how to build DC to DC cell phone charger circuits using 6 unique concepts. The first concept concept uses the IC 7805, the second concept works with a single BJT, the third idea uses a IC M2575, in the fourth method we try LM338 IC, the 5th circuit shows how to charge multiple mobiles from a single source while the last or the 6th technique shows us how to use PWM for implementing an effective charging of a mobile phone.

Warning: Although the concepts are all tested and technically correct, the author does not take any responsibility of the results, please do it at your own risk.

Introduction

A simple DC cell phone charger circuit is one of those mates of cell phone that cannot be ignored because a cell phone would be dead without a charger.

Normally a DC cell phone charger circuit come as an integral part of a cell phone package and we use it in conjunction with our AC mains supply.

But what happens if your cell phone gasps for power in the middle of a journey, probably when you are driving or biking away on a middle of a highway?

How it Functions

A very simple yet reasonably effective DC to DC cell phone charger circuit is discussed in this article, which can be easily built at home even by a layman.

Though the proposed charger circuit won't charge your cell phone at the rate equal to a normal AC to DC charger, nevertheless it will complete the function without fail and won't betray you for sure.

The proposed DC cellphone charger circuit can be understood with the following points:

We all know the general specs of a cell phone battery, it's around 3.7 volts and 800 mAH.

It means the cell phone would require at around 4.5 volts for initiating the charging process.

However a Li-Ion battery which is employed inside cell phones are pretty sensitive to bad voltages and may just blow off causing serious life and property issues.

Keeping this in mind the cell phone internal circuitry is specifically dimensioned very strictly.

The parameters just won't permit any voltage which may be even slightly out of the range of the battery specifications.

The use of the versatile IC 7805 in the circuit answers the above issue just perfectly, such that the charging voltage at its output becomes ideally suitable for charging the cell phone battery.

A high wattage resistor connected at the output of the IC makes sure that the current to the cell phone stays well within the specified range, though this might have not been a problem anyway, the cell phone would just refuse to charge if the resistor was not included.

1) Circuit Diagram of the DC cellphone charger

DC cell phone charger using IC 7805

Pictorial Diagram

You can use this DC cellphone charger circuit for charging you cell phone during emergencies when there's no mains AC outlets, the circuit may be powered from any 12 volt lead acid battery or similar DC power source

Parts List

R1 = 5 Ohm, 2 Watt,
C1, C2 = 10uF/ 25V,
D1 = 1N4007,
IC1 = 7805, mounted on a heatsink,
Battery, any 12 volt automobile battery

Wiring diagram for a 5V cell phone charger circuit

Using LM123/LM323

In the above concept a 7805 IC is used for charging, which can deliver a maximum of 1 amp. This current may not sufficient enough for charging smart phones, or cellphones with bigger mAH rating in the range of 4000 mAh. Since these high current batteries may require current up to 3 amps for charging at reasonably fast rate.

A 7805 might be completely useless for such applications.

However, the IC LM123 is one candidate which can fulfill the above requirement, by providing a precision 5 V output with a good 3 amp current. The input can be from any 12 V source such a car/motorcycle battery, or a solar panel. The simple 3 amp mobile phone charger diagram can be seen below:

As can be seen above the 3 amp charger circuit requires no external components for implementing the procedures, and yet is extremely precise with its output voltage and current regulation, and is virtually nondestructive due to it many internal protection features.

2) DC Cell phone Charger using a Single Transistor

The next design explains a DC cell phone charger using a single BJT is probably the simplest in its forms and may be built very cheaply and used for charging any standard cell phone from a DC 12 volts external source.

Circuit Operation

The circuit diagram illustrates a rather straightforward design incorporating very few components for implementing the proposed cell phone charging actions.

Here the main active part is an ordinary power transistor which has been configured with another active part, the zenet diode for forming a nice little DC to DC cell phone charger circuit.

The resistor is the only passive component other than the above couple of active parts which has been associated in the circuit.

So just three component is to be used and a full fledged cell phone charger circuit is ready within minutes.

The resistor acts as the biasing component for the transistor and also acts as the "starter" for the transistor.

The zener has been included to inhibit the transistor from conducting more than the specified voltage determined by the zener voltage.

Though, a cell phone ideally requires just 4 volts for initiating the charging process, here the zener voltage and subsequently the output voltage has been fixed at 9V, because the current releasing ability of this circuit is not very efficient and presumably the power should be dropping to the required 4v level once the cell phone is connected at the output.

However the current may be decreased or increased by suitably increasing or decreasing the value of the resistor respectively.

If the cell phone "refuses" to get charged, the resistor value nay be increased a bit or a different higher value may be tried for making the cell phone respond positively.

Kindly note that the circuit was designed by me based on assumptions only and the circuit has not been tested or confirmed practically.

Circuit Diagram

DC cellphone charger circuit using a single Transistor

3) Using  1-A Simple Step-Down Switching Voltage Regulator

If you are not satisfied with a linear regulator charger, then you can opt for this 1 A simple step-down switching voltage regulator based DC cell phone charger circuit which works with a switched buck converter principle which enables circuit to charge a cell phone with great efficiency.

How it Works

In one of my previous posts we learned about the versatile voltage regulator IC LM2575 from TEXAS INSTRUMENTS.

As can be seen, the diagram hardly utilizes any external components for making the circuit functional.

A couple of capacitors a schottky diode and an inductor of all that is needed to make this DC to DC cell phone charger circuit.

The output generates an accurate 5 volts which becomes very much suitable for charging a cell phone.

The input voltage has a wide range, right from 7V to 60V, any level ma be applied which results the required  5 volts at the output.

The inductor is introduced specifically for obtaining a pulsed output at around 52 kHz.

Half of the energy from the inductor is used back for charging the cell phone ensuring that the IC remains switched only for half the charging cycle period.

This keeps the IC cool and keeps it effectively in working even without using a heatsink.

This ensures power saving as well as efficient functioning of the entire unit for the intended application.

The input may be derived from any DC source like an automobile battery.

Courtesy and Original Circuit: ti.com/lit/ds/symlink/lm2575.pdf

4) DC Double Cellphone Charger

A recent request from one of my followers Mr. Raja Gilse (via email), prompted me to design a DC double cellphone charger circuit that is able to facilitate charging of many cell phones simultaneously, let's learn how to make the circuit.

I have already explained regarding a couple of DC to DC cellphone charging circuits, however all these are designed for charging a single cell phone. For charging more than one cell phone from an external DC source like an automobile battery, requires an elaborate circuit.

Technical Specifications

Dear sir. Please tell me that what alterations should i do, to charge two mobiles at a time from your "12V BATTERY OPERATED CELL PHONE CHARGER CIRCUIT".(from bright hub) I am using the circuit from last 8 months, it's fine. Please post that article in your new blog also.

Dear sir, i tried so many time to post this comment in your blog in the "simple dc to dc cell phone charger circuit" but in vain. Please answer here~ Sir, i used another 10 ohm 2 watt resistor in parallel with the existing one, as i don’t have the higher watt resistor. It’s working fine. Thank you very much, i have one doubt, earlier, in bright hub in the same article you told to use 10 ohm resistor, but here it is 5 ohm which is suitable ?

I have another question out of this article; please guide me could I use three 1N4007 silicon diode instead of one 1N5408 silicon diode? My aim is to allow 3A current in only one direction. But i don’t have diode of 3A i.e. 1N5408. As 1N4007 is of 1 amps capacity could use three 1N4007 in parallel and like wise for 5A five 1N4007 in parallel, because i have number of 1N4007

rajagilse

Solving the Circuit Request

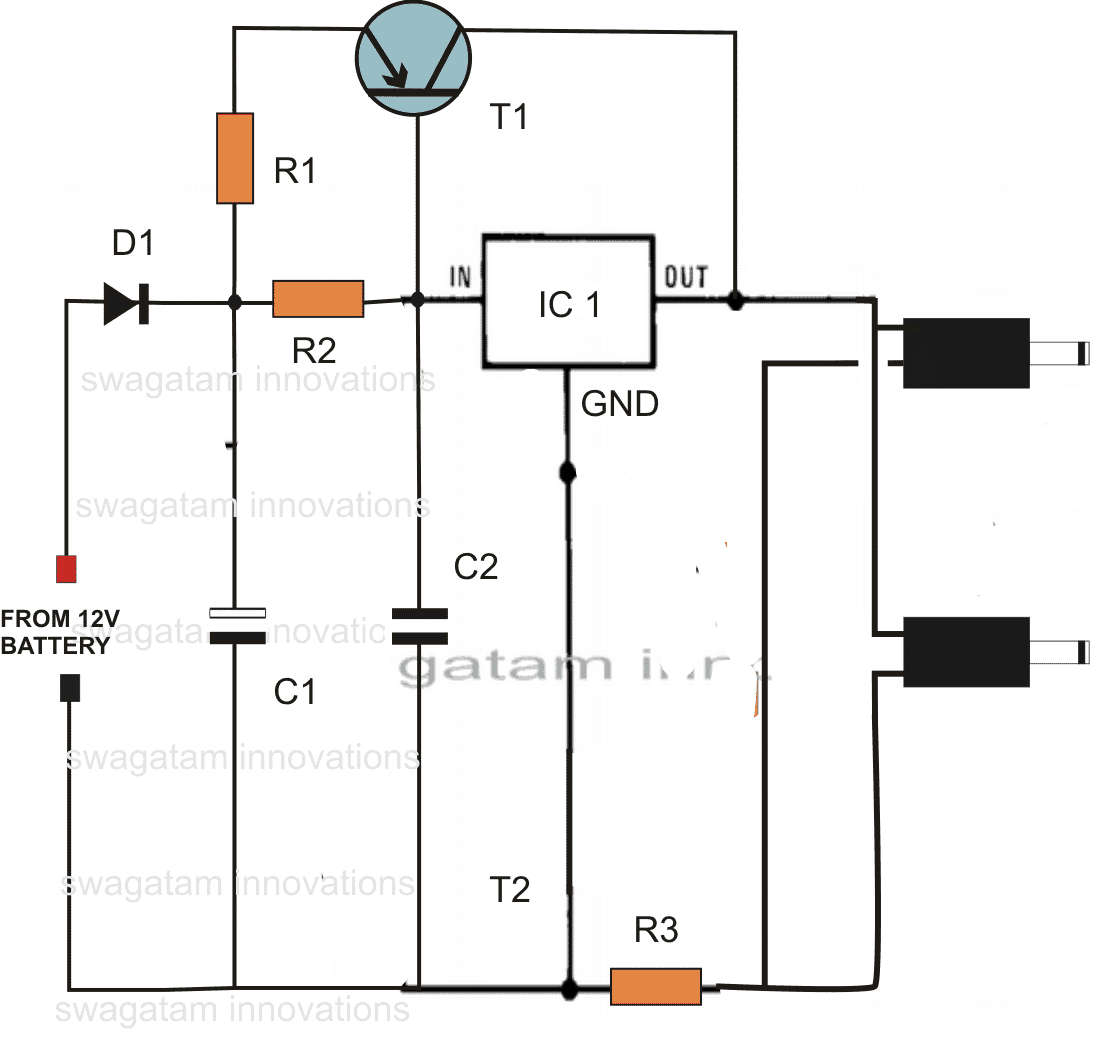

Hi Rajagilse,Use the following DC double cellphone charger circuit given below:

Hi Raja,

As you increase the limiting resistor value, the charging becomes slower, therefore a 5 Ohm resistor would charge the cell phone faster than a 10 Ohm, and so on. I'll check the problem with the commenting in my blog...however other comments are coming normally as usual! Let's see. Thanks and Regards.

Parts List

  • R1 = 0.1 Ohms 2 watt,
  • R2 = 2 Ohms 2 Watt
  • R3 = 3 Ohms 1 watt
  • C1 = 100uF/25V
  • C2 = 0.1 discT1 = BD140 D1 = 1N5408
  • IC1 = 7805

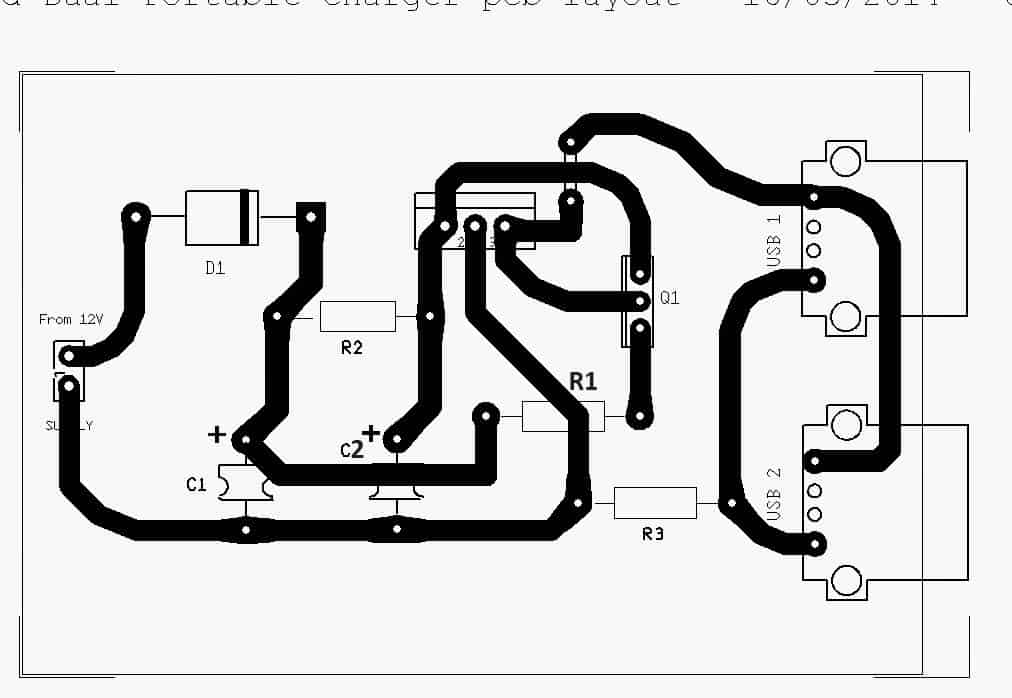

PCB Design

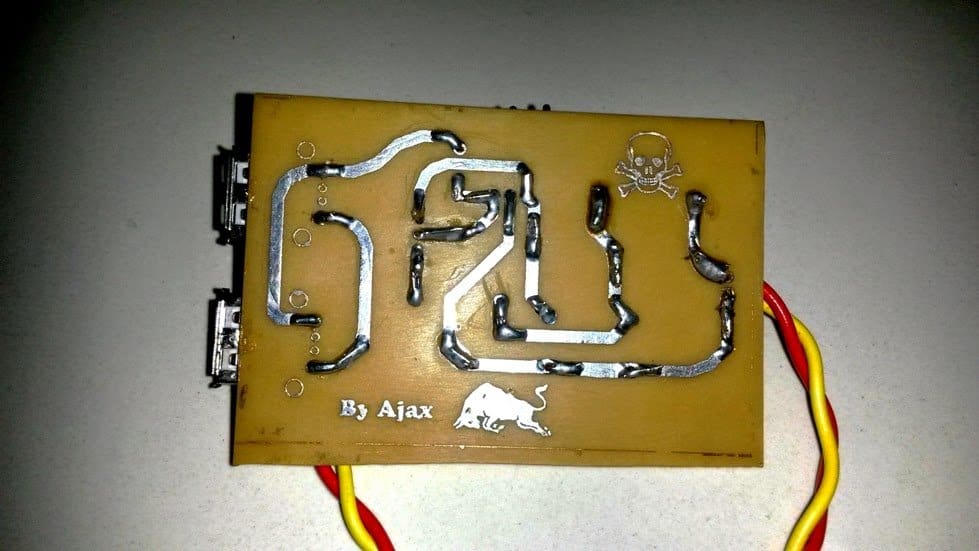

The circuit of the double DC cell phone charger was successfully tried and built by Mr. Ajay Dussa over a home designed PCB, the following images of the PCB layout and the prototype were sent by Mr. Ajay.

5) LM338 Based Cell Phone Charger Circuit

The following circuit can be used for charging as many as 5 cell phones at a time. The circuit employs the versatile IC LM338 for producing the required power. The input is selected to be a 6V but can be as high as 24V. A single cell phone can also be charged from this circuit.
The circuit was requested by Mr. Ram.

Multiple Cellphone Charger Circuit using IC 7805

Any desired number of cellphones can be charged by using IC 7805 in parallel as shown the following figure. Since the ICs are all mounted on the same heatsink the heat among them is uniformly shared ensuring a uniform charging across all the connected multiple cellphone devices.

Here 5 ICs are used for charging by medium sized cellphones, more number of ICs could added to accommodate more number of cellphones in the charging array.

charging cellphones by parallel IC 7805 ICs

6) Using PWM For Charging Cellphone Battery

This circuit can be easily made at home by any school kid and used for displaying in his science fair exhibition. The circuit is a simple cell phone charger that may be operated in conjunction with any DC source, from a car or a motorcycle battery or from any ordinary 12 V AC DC adapter.

Nowadays we find most of the vehicles have their in built cell phone battery charger units which surely becomes very handy for travelers who mostly remain outdoors travelling in their vehicle.

The proposed cell phone charger circuit is as good as the conventional chargers which come fitted inside the cars and bikes.

Moreover the circuit can be simply integrated to ones own vehicle if the feature is not originally available in the vehicle.

Alternatively one may think of manufacturing the present unit and selling them in the market as an automobile cell phone charger and earn some hard bucks.

Circuit Operation

Cell phones as we all know are highly sophisticated gadgets by nature and when it comes to charging cell phones the parameters no doubt also needs to be of very high standards.

The AC/DC cell phone chargers which come with the cell phones are all SMPS based and are extremely good with their outputs and that’s why the cell phone gets so efficiently charged by them.

However if we try to make our own version, it may fail altogether and the cell phones may just not respond to the current and display a “not charging” on the screen.

Cell phone battery cannot just be charged by supplying DC 4 volts, unless the current is optimally dimensioned the charging won’t initiate.

PWM vs Linear

Using voltage regulator IC for making a DC to DC charger, which I have discussed in one of my earlier article is a good approach, but the IC tends to become too hot while charging the cell phone battery and therefore requires adequate heatsinking for remaining cool and operative.

This makes the unit a bit bulkier and moreover some significant amount of power is wasted in the form of heat, so the design cannot be considered very efficient.

The present PWM controlled DC to DC cell phone charger circuit is outstanding in its respect because, the involvement of PWM pulses helps to keep the output very suitable to the cell phone circuitry and also the concept involves no heating of the output device, making the entire circuit truly efficient.

Looking at the circuit we find that again the work horse IC 555 comes to our rescue and performs the important function of generating the required PWM pulses.

The input to the circuit is supplied through some standard DC source, ideally from an automobile battery.

The voltage powers the IC which instantly starts generating the PWM pulses and feeds it to the components connected at its output pin #3.

At the output the power transistor is used for switching the DC voltage at its collector directly to the cell phone.

However only the average DC voltage is finally fed to the cell phone due to the presence of the 10uF capacitor, which effectively filters the pulsating current and provides a stable, standard 4 volts to the cell phone.

After the circuit is built, the given pot will need to be optimized perfectly so that a well dimensioned voltage is produced at the output which may be ideally suited for charging the cell phone.

Circuit Diagram

Previous: Simple 12V, 1A SMPS Circuit
Next: How to Make a Digital Voltmeter, Ammeter Module Circuits

About Swagatam

I am an electronic engineer (dipIETE ), hobbyist, inventor, schematic/PCB designer, manufacturer. I am also the founder of the website: https://www.homemade-circuits.com/, where I love sharing my innovative circuit ideas and tutorials.
If you have any circuit related query, you may interact through comments, I'll be most happy to help!

You'll also like:

  • 1.  Bicycle Dynamo Battery Charger Circuit
  • 2.  Self Optimizing Solar Battery Charger Circuit
  • 3.  PWM Solar Battery Charger Circuit
  • 4.  Precise Battery Capacity Tester Circuit – Backup Time Tester
  • 5.  12V Battery Charger Circuits [using LM317, LM338, L200, Transistors]
  • 6.  Lipo Battery Balance Charger for Charging of Series Connected Lipo Cells

Please Subscribe (Only if you are Genuinely Interested in our Newsletters)




Reader Interactions

Comments

    Your Comments are too Valuable! But please see that they are related to the above article, and are not off-topic! Cancel reply

    Your email address will not be published. Required fields are marked *

  1. Search Related Posts for Commenting

  2. LUKMON ABDULRASHEED says

    Thanks so much for putting us through this. I am working on a charging hub where up to 30 phones can be charged at a time using a 12V battery of 100Ah. I don’t want to convert the DC to AC, I want to use it directly to charge the phones using voltage regulators to lower the voltage to 5V. Kindly help with the best circuit to use, Thanks a lot.

    Reply
    • Swagatam says

      If you use a 5V regulator 30% to 50% of the battery power will be lost in heat. Instead you can try using mobile phone in sets of two in series, and check the result.

      Reply
  3. khalid says

    Hello sir khalid here how are you sir hope you are fine.i did the above circuit with 338 but problem is when i connect the phone after 1 minute it shows disconnected and after 1 minute again itself shows connected but the percentage slowly goes down not up every minute it hapoen same i changed the resister from 5ohms to 1 ohm same problem then i changed resister to 1.2 ohm quarter watts same problem then i put 1 more 1.2 ohm quarter on series same problem .so i need your help please your help will solve the problem i will be waiting reply thankyou very much i will back with tesult take care.

    Reply
    • Swagatam says

      Hello Khalid,

      The mobile phone internal circuitry has a strict regulator which follows strict criteria for the charging, therefore even a slightest variation will cut off the charging operation.

      So make sure the current limiting resistor is correctly calculated, you may increasing the value and see if that helps
      Also Replace the R2 pot with a fix calculated resistor such that the output is a fixed 5 V.

      And put the LM338 over a large heatsink, otherwise the IC will shut down automatically inhibiting the charging process.

      Reply
  4. Vishal wakade says

    Hello sir I am making mobile charger from Wind turbine as project Ill be using DC greared motor with 60- 100 rpm but I want a good and efficient circuit to charge smartphone or power bank having 5v dc and around minimum 1 amp current and also it should not heat up so much. Even if size is big that’s okay for me.

    Reply
    • Swagatam says

      Hello Vishal, it is important first know the output voltage and current specification of the windmill, please provide the details I’ll try to suggest an appropriate solution.

      Reply
      • Vishal wakade says

        Sir I’ll be using 12 v dc motor and i dont know how much output voltage and current. But i need at least 1 amp current Also tell me should i use12v dc motor for this project ?

        Reply
        • Swagatam says

          Vishal, you will have to check and specify the current and voltage outputs from the motor, only then the circuit can be suggested. It is the motor that will generate the current, no the circuit.

          You will need a 12V dynamo or an alternator for charging a phone….

          Reply
          • Vishal says

            I’ll be using 12v dc motor as generator but I don’t know how much current it will generate. Is there any way to know that or you suggest which one i should use for best result

            Reply
            • Swagatam says

              You will need to connect a 3 amp bridge rectifier across the motor wires, and connect an ammeter at the bridge output. Then rotate the motor hard to check the maximum current capacity from the motor.

  5. Francis says

    Sir I’m using a 21v 550mAH solar panel.. How can I connect it to a phone charger without making use of 7805 ic please? Because I don’t know where to get the 7805 ic from.. Please..

    Reply
    • Swagatam says

      Francis, you can try the transistorized circuit concept using TIP122.

      Reply
  6. GIRISH NARAYAN says

    HI,
    Can you tell me how to convert 19v 10.5 amps to 12v 10.5 amps using LM7812c?

    Reply
    • Swagatam says

      Hi, you can try the concept explained in this article;

      https://www.homemade-circuits.com/high-current-transistor-tip36-datasheet/

      you can ignore the diodes connected with its center pin, and connect the center pin directly to ground

      Reply
  7. Mohammed Tharik says

    Hello sir,
    I have 20v DC source can I make as a series connect with two or three 7805 ic to get for two or three charging points.

    Reply
    • Swagatam says

      Mohammad, you must connect the ICs as shown in the second last image in the above article.

      Reply
      • Mohamed Tharik says

        Hi, sir i have done this series connection. but i want to discuss about with the circuit diagram, how can i send this diagram to you.

        Reply
        • Swagatam says

          Mohammad, it is not series connection, it’s parallel connection. You can upload the diagram on any free image hosting site and send the link to me here through comment.

          Reply
          • Mohamed Tharik says

            https://drive.google.com/file/d/1-FVNl-Mi27fANIaD4_R0J38jWAiJNHix/view?usp=drivesdk

            Reply
            • Swagatam says

              Did you check it practically? please check it practically

          • Mohamed Tharik says

            https://drive.google.com/file/d/1-j33i28v_glo7RReAnvOcFu-LN_4PKuE/view?usp=drivesdk

            Reply
  8. Marcelo says

    Good evening Sir Swagatam,
    Thanks for the post.
    I did the last circuit with the 555. In the tests with adjustable source, I raised the voltage up to 13.5V / 750mA. I kept the preset at 6V, the maximum I got on the smartphone was 500mA and the TIP122 got very hot.
    I adjusted the source to 9V / 660mA the transistor was good temperature, but only got 460mA (with loss of 200mA). Will changing the resistor value from 470R to 330R from the transistor base increase the circuit current? (I intend to use this circuit on a 12V / 12Ah battery.
    Hug

    Reply
    • Swagatam says

      Thanks Marcelo for trying the PWM circuit. Appreciate it a lot!

      I don’t think it’s a good idea to supply 13V to a 5V cell phone. Although the cellphone has an internal regulator, still it’s not advised.

      The current consumption is decided by the phone battery, and not by the charger. So we can’t force current into the phone, and this can be dangerous.

      Moreover, the output from the IC is PWM so what you are measuring is the average value from the ON/OFF cycles. The actual ON time current could be much higher.

      The TIP122 has a gain of 1000 that’s very high and a 470 ohm is quite low to drive ample current. Still you may try reducing it to 100 ohm. But make sure to mount the TIP on a large heatsink, and keep the supply at 9V.

      Reply
  9. Dayo says

    Good day sir, for #2 circuit, with 24v input supply, how can I use it to charge a smart phone because #1 circuit was too slow. Thanks

    Reply
    • Swag says

      Dayo, what is the input current of your 24V supply?

      Reply
      • Dayo says

        Current is from 24v battery supply

        Reply
  10. tine says

    Hi, may I know what is the ouput power of the circuit? the voltage and current output? im trying to make this one for our project and im planing to connect it to the load side of a charge controller with 12v output. thank you.

    Reply
    • Swag says

      The max output power will be 5 to 6 watts 5 x 1amp = 5 wats

      Reply
  11. Unknown says

    Can I usethe back emf of DC motor as a Input???

    Reply
    • Swagatam says

      yes you can

      Reply
    • Rolan says

      Good day sir! You have a great work sir. I would like to ask your suggestion of what should I do to have an output of 5 volts 2 amperes on this circuit you’ve made. Thank you sir!

      Reply
      • Swag says

        Thanks Rolan, you can connect two or three 7805 ICs in parallel to get 2 amps.

        However make sure that you mount all the ICs over a single common large heatsink.

        Reply
  12. The Rocking Time says

    Sir,
    Can you suggest a simple circuit to charge an android smart phone using a 9V PP3 battery…. I have tested one in which 5 V is taken using 7805 with the battery.. but the phone takes a lot of charging time.. even for charging 1 % it takes more than 15 to 20 minutes.. so is there anything to do with the D+ AND D- terminals of the usb to make it a fast chargeable one… and also there is a lot of wastage of battery power due to the conversion from 9V to 5V by 7805…
    so please suggest a circuit in which all these problems can be compensated but utilizing a 9V PP3 battery is a must

    Reply
    • Swagatam says

      RT, you can try any suitable buck converter circuit for the purpose…you will find many if you do an online search

      Reply
  13. Shaan says

    Sir, how can add an led indicator in this circuit…

    Reply
    • Swagatam says

      shaan, connect an LED in parallel with the 5 ohm resistor, with its anode towards the output side…put a 22ohm resistor in series with it.

      Reply
  14. gigi pineda says

    good day sir, i would like to know what part shou;d i replace if im going to mount it in a Electronic bike with a 48volts? ty in advance & more power

    Reply
    • Swagatam says

      gigi, this circuit won't work with a 48V input, instead you can try the following concept:

      https://homemade-circuits.com/2016/08/0-60v-lm317-variable-power-supply.html

      Reply
  15. Unknown says

    Dear Sir,
    Is it applicable for all smart phone having different mah battery ?

    Reply
    • Swagatam says

      yes it is, just change the 5 ohm resistor with 1 ohm…and use a large heatsink on the IC

      Reply
  16. Jeyaseelan Selan says

    Hi sir charging done but not ingress battery level

    Reply
  17. Biswajit Banerjee says

    Hi I recently checked your circuit..
    But I saw my mobile battery percentage can't be increased up..
    Please give me a suggestion

    Reply
    • Swagatam says

      Hi, please try reducing the resistor value to 1 ohm or 2 ohm and check the response

      Reply
  18. dhvani patel says

    can i get 1 amp current from 7805 battery

    Reply
    • Swagatam says

      yes you can, provided the IC is mounted on a large heatsink

      Reply
  19. Kara914 says

    What would happen if I use a 1K ohm resistor??will the charger work?

    Reply
  20. Kara914 says

    Will the charger work if value of resistor is decreased?

    Reply
  21. lima toshi says

    Thank you very much sir, i totally forgot, when ever there is a load on a SMPS/Transformers etc there is a voltage drop. Thanks much.

    Reply
    • Swagatam says

      you are welcome!!

      Reply
  22. lima toshi says

    Hi, i am new to electronics, i was wondering, can i use a lm7806 not lm7805, because when i check the DC output with a multimeter of a cell phone's charger, the DC voltage is not a 5volts its 6volts, i don't want to cook my cell phone, so any help will be greatly appreciated. Thank you.

    Reply
  23. lima toshi says

    hi firstly one if the best learning electronics sites ever, thank you sir for sharing your knowledge with us appreciated. Sir i was wondering can i use lm7806 to make a power bank for charging a cell phone, because when i check a cell phone's charger with a multimeter the DC voltage is 6volts and not 5volts, i am new to electronics so i don't want to cook my cell phone, so any help will be greatly appreciated. Thank you.

    Reply
    • Swagatam says

      Hi Lima, even with 10V your cell-phone will not fry because it has an internal voltage control protection.

      however 5V is the correct recommended voltage for charging a cell phone. the 6V which you are seeing is due to the absence of load, as soon as you connect the cell phone, you will find it dropping significantly….so I would recommend you to use 5V and not 6V for the operations.

      Reply
    • Swagatam says

      …and thank you for liking my site

      Reply
  24. Unknown says

    what is the use of GND in 1805?

    Reply
  25. Swagatam says

    It is safe, because all cell phones have in-built automatic full charge cut-off circuitry

    you can use the circuit with a car battery without issues

    Reply
  26. Joshua Uddipa says

    sir,
    what was the out put Volts of that diagram sir?

    Reply
  27. sandeep sundaresan says

    Hai sir,
    I made this circuit and my phone is charging, but its very slow and my phone battery is drawing around 250 mA.Is it working properly and what is the importance of 5ohm 1watt resistor. Also regulator ic is getting hot i am using a heat sink also i connected a cooler fan ( 12v) at the input pin of 7805. I am using an old 12v 7 AH battery. Plz guide me sir

    Reply
    • Swagatam says

      Hi Sandeep,

      you can try reducing the 5 ohm to some lower value for increasing the current and improve the efficiency….this resistor acts like a buffer and limits the current to an acceptable level, otherwise the phone circuit might refuse to accept the charge….

      If you attach a large heatsink, then I don't think a fan cooling would be required.

      Reply
  28. Bibin Joseph says

    Hi sir..hi do tho circuit..sOme mobiles can charge..my Lumia 720 couldn't get charged..how I modify the circuit?.. It's battery spec. is BP-4GW 20mah 3.7v 7.4WH Lithium polymer max 4.2

    Reply
    • Swagatam says

      Hi Bibin, reduce the value of the 5 ohm resistor some lower value and check…

      Reply
  29. Swagatam says

    please specify the panel voltage??

    Reply
  30. Swagatam says

    testing

    Reply
  31. Govinda Raju Kolla says

    Dear sir
    im using below circuit but im not using 5ohm R im using 4.7ohm resistance but my mobile was silly charging but not changing charging levels its constant please help me sir whats problem in my circuit

    Reply
    • Swagatam says

      Govinda, you can try reducing the value to 1 ohms and see if that helps

      Reply
  32. Design Engineering says

    This circuit work to possible high variation speed bike (45 kmph to 90 kmph)

    Reply
  33. Deepak Tewatia says

    What is there. D1 C1 C2 R1

    Reply
  34. Deepak Tewatia says

    Dear sir what is there d1 c1 c2. Etc tell me about this

    Reply
  35. Swagatam says

    you will have to experiment with the resistor to get the right current….or calculate it using Ohms law formula

    Reply
  36. Muhammad Arslan says

    Sir I want to make a mobile phone charger using transformer, bridge retifiers and capacitors as well as zener diode restriction is that there is no use of IC can u plz help me in finding the circuit and components I shall be very thanksful to you ..

    Reply
    • Swagatam says

      Muhammad, you can do it by using 0-3V/500mA or a 0-4.5V/500mA transformer and rectifying its output with bridge/capacitor network. A zener diode will not be required for this, but make sure to add a current limiting resistor such as a 2ohm or 3 ohm 1 watt resistor.otherwise the cellphone might just refuse to accept the supply

      Reply
  37. bantei sumer says

    Sir my battery is decreasing … Why ? … It supposed to be charged bur it isn't . 🙁

    Reply
  38. Arindam says

    Hi
    Can I use 4pcs 1.2v 2000mah rechargeable batteries in series to charge the cell phone battery directly, if yes then how the rechargeable batteries to be charged

    Reply
    • Swagatam says

      Hi, please refer to the following article for more:

      https://homemade-circuits.com/2012/11/homemade-cell-phone-emergency-charger.html

      Reply
  39. Umair Anwar says

    I mean ….can I use 9v,3w solar panel as input in this circuit?..I m using this..but output voltages are exact 4.50volts and ampereges are 1.70A…my cell phone charges few percent only..then stops charging but connection keeps there(charging)…

    Reply
    • Swagatam says

      without load the output from a 7805 should be around 4.9 to 5.1V with a 9V input….if it's showing 4.5V then the IC could be duplicate or bad in quality.

      and make sure the IC is not hot while charging the phone…use a large heatsink to avoid this

      Reply
  40. Umair Anwar says

    Sir…I will make the circuit mentioned by u in near future…One thing I want to ask…can i use 9V,3w solar panel as input source….?

    Reply
    • Swagatam says

      you mean to say without 7805? It can be done by suitably increasing the 5 ohm resistor

      Reply
    • Swagatam says

      Umair,you can use any value between 1 and 5 ohms which suits your mobile the best in terms of quick charging

      Reply
  41. tarun kumar says

    what will happen if i use 7809 instead of 7805

    Reply
    • Swagatam says

      It will still work

      Reply
  42. Umair Anwar says

    Ok..but sorry…this circuit just charge few percent(5-10%) very fast in first time connection..then stops and keep stops for many hours until I remove connection…no exceeding further…I check the voltages in USB port..these are good in between 475-520…but charging not increase.i have changed many input 12V batteries…what will be the problem…?

    Reply
    • Swagatam says

      you can try the following circuit:

      https://homemade-circuits.com/2012/01/how-to-build-simple-pwm-controlled-dc.html

      but the pot will need to be adjusted very carefully for initiating the charging process…I have tested this circuit and this could charge a small cellphone within an hour

      Reply
  43. Umair Anwar says

    Sir I have made this circuit…Output voltages are 5.45V..charging speed is so high,10% in just about 10 minutes…but when disconnected..same case that discharging was so high…then steady at the same where from I start charging…

    Reply
    • Swagatam says

      Umair, you must keep it connected until the cell phone indicates "battery full", if you remove it in the middle then it could drop quickly.

      Reply
  44. Umair Anwar says

    Sir I have made this circuit.my out put voltage is 5.20.but my cell phone charges only 2% or 3%.then it stays connected(charging) but percentage of charging not increases…like it shows very very slow charging.what is the problem and how I can solve this

    Reply
    • Swagatam says

      Umair, try lower value resistor for the 5 ohm and check the response, initially you can try 3 ohms and see how it works.

      Reply
  45. emman donato says

    Sir my mobile battery is a 5000mah. what adjustment should I do on your diagram to charge my battery more faster. Im using a 5volts with 1amp dc power.

    Reply
    • Swagatam says

      emman, you can try connecting a transistor current booster with the IC 7805, and replace the 5ohm resistor with a 0.5 ohm resistor.

      you can refer to the first diagram from the following article to learn how the transistor and the associated resistors need to be configured:

      https://homemade-circuits.com/2012/05/dc-to-dc-double-cell-phone-charger.html

      Reply
  46. Swagatam says

    .

    Reply
  47. SOBHAN MAJUMDAR says

    sir . i have 4 1.2 v ,1800amh battery, i want to make a power bank.I make it,but it charge only my nokia,samsung(old verson phone).it can not charge my redmi2 phone. redmi2 input voltage is 5v 1A. how can i make it.please help mw to solve it out.

    Reply
    • Swagatam says

      Sobhan, try the bigger batteries instead of the AAA type…and check the response.

      Reply
  48. siddu says

    hi swagatam,
    thanks for all ur valuable comments.
    as u said cell phone will accept 5V only but how its possible may if we gave >5Volts also accepting because i have seen practically example motorola cell phone battery buldge or bad condition if you use long period using with compatible charger ERD charger. if i use original charger branded one then battery become good condition this thing i have observed long time by comparing both things so can u clarify me why my cell battery become buldge or bad what are reason ?

    Reply
    • Swagatam says

      Hi Siddu,

      all cell phones have internal overcharge protection and sophisticated voltage regulator circuitry, so what you are saying can NEVER happen unless you have used a duplicate battery inside the phone…..so the problem may be not in the charger but the battery used in the phone….or may be the cellphone itself could be a duplicate MOTOROLA, not an original motorola. 5V input is well handled by any cellphone, and if at all it anticipates a incompatibility the phone will simply stop charging.

      Reply
  49. siddu says

    about cell phone charger

    Dear sir. Please tell me what alterations should i do, to charge two mobiles at a time from this circuit.Could i give the parallel connection with the existing mobile charging pin. As ic 7805 is capable of giving 1A out put. Please let me know

    Reply
    • Swagatam says

      you can try the first circuit from here:

      https://homemade-circuits.com/2012/05/dc-to-dc-double-cell-phone-charger.html

      Reply
  50. kaushik wavhal says

    Can this circuit charge a phone with a 3000mAH battery?
    My phone's charger outputs 5V , 2.1A . Though this will output max current till 1.5A and the charging will be a tad slower.

    Reply
    • Swagatam says

      If you are having a 5V charger then I don't think the above circuit would be required…you can use the 5V charger directly to charge the cellphone.

      Reply
  51. Salman Ahmad says

    Sir in the diagram you show C1 and C2=1uF But in parts list you write 10uF.which is right.You also write 5 ohm =1 watt but in parts list you write 2 watt pllzz guide me which is right..

    Reply
    • Swagatam says

      Salman, C1, C2 values are not critical, you may use any capacitor in that place, the resistor could be 1 watt…. but 2 watt will provide even better cooling…so it's up to you to choose

      Reply
  52. Salman Ahmad says

    can i use usb for charging

    Reply
  53. Jignesh Parmar says

    Hello sir,
    My question is if we will used this ckt for long periods then it will occur damage in the mobile battery and mobile components pls give me the answer , thank you sir

    Reply
    • Swagatam says

      Hello Jignesh,

      No, there will not be any problem even if you connect the charger permanently with the cell phone because the cell phone internally has an over charge protector…which will instantly cut off the current as soon as the battery gets fully charged…however it's always a good practice to disconnect the charger through a visual monitoring….

      Reply
  54. Unknown says

    Hello sir,
    If we will used this ckt for long time then it will occur damage in the mobile battery and mobile components. Waiting for your answer sir ,thank you sir

    Reply
  55. Swagatam says

    Dear dharmendra, reduce the value of the resistor to 2 ohm and check

    Reply
  56. Unknown says

    Dear sir
    i wanna made a dc mob battery charger but , my mob display show battery power,decreaseing
    plz send your views,
    or contact no,
    my self DHARMENDRA KUMAR ,I ALSO WANNA BE ELECTROLOGIST,
    PLZ GIVE YOUR CONTACT NO , OR SEND AT erdharmendra30@gmail.com

    Reply
  57. mohammad dani says

    sir mene ye circuit 12v 7amp dry battery me connect kiya but it does not work,,
    just charging hoti rehti hy jese hi pin remove karo cell se to charging wohi ki wohi hoti hy:(
    will u help me?????

    Reply
    • Swagatam says

      this will not charge your mobile quickly, it might take 3 to 4 hours,

      reduce R1 to 2 ohms and check whether it helps or not…

      Reply
  58. Rehan Qurashi says

    Dear sir can I use old cellphone batteries as a cellphone power bank if yes then how plz give a simple circuit

    Reply
    • Swagatam says

      Rehan, no that's not recommended because old batteries may have different voltage and health conditions so they cannot be put in parallel for implementing the power bank.

      Reply
  59. JYOTIBA HODAGI says

    hello sir
    can u provide me a circuit to charge a laptop using 6v solar panel,

    Reply
    • Swagatam says

      hello jyotiba,

      you can try the following circuit:

      https://homemade-circuits.com/2014/11/12v-car-laptop-charger-circuit-using.html

      here you can use 6V as the input

      Reply
  60. NITIN says

    sir ,Is it possible to build a circuit to charge a laptop using 6v solar panel,
    if yes plz provide the link

    Reply
    • Swagatam says

      Nitin, you can try the following design:

      https://homemade-circuits.com/2014/11/12v-car-laptop-charger-circuit-using.html

      you can use 6V panel as the input but make sure it's rated at 3 amps minimum

      Reply
  61. Ravin Kumar says

    Hi sir this is Ravin Kumar.
    what we have discussed about 7805, I was used 7805 as a Voltage regulator for mobile battery charger using 6V battery.
    what is the problem I was facing is mobile in display showing charging symbol and connect sound ….!
    But its charging % indication looks like decreasing condition…
    I dont know what is the problem in that….!

    Reply
    • Swagatam says

      Hi Ravin, when you connect the charging input to your mobile it should immediately acknowledge by showing the "charging" indication….the battery symbol should start showing a sequencing response….if this not happening then you can be sure that your mobile is not accepting the charge input.

      do not use the mobile while it's being charged,, otherwise the charging level will start decreasing.

      Reply
  62. Ravin Kumar says

    Sir in communication unit is their any chance to damage if short circuit happens..?
    And is their any protection circuit…and it dint switched ON.

    Reply
    • Swagatam says

      what is a communication unit, are you referring to a cellphone? with a 7805 IC there cannot be any danger…

      Reply
  63. Ravin Kumar says

    Hi sir, Using 6V battery to charge mobile battery can I use as a 7805 as a 5v regulator…?

    Reply
    • Swagatam says

      Hi Ravin, with a 6V input, a 7805 can be avoided….just use two 1N5408 diodes in series with the positive…that will do the job.

      but if you prefer a 7805 you can try it as a 5V regulator.

      Reply
    • Ravin Kumar says

      I am getting 5 volts out put clearly (Input 6V battery) but mobile indication showing like decreasing slowly…is it possible to decreasing…?

      Reply
    • Swagatam says

      after connecting the mobile should indicate "charging"…if this not happening that means your mobile is not accepting the input charge.

      Reply
  64. Jhud Ador says

    Hi.. sir I have Samsung Galaxy duos Gt I9082
    Battery 3.8V Li-ion
    2100mAh

    can i charge it in my motorcycle battery using the above Circuit?

    thanks in advanced.

    Reply
    • Swagatam says

      Hi Jhud, you can do it, but use two 7805 ICs in parallel for getting a better current gain and quicker charging rate. Make sure that both the ICs are mounted on a common heatsink. also reduce R1 to 3 ohms/5 watts

      Reply
    • Swagatam says

      …also add one 1N5408 diode in series with the output positive line, this will cut down the output to 4.3V approx…making it perfectly suitable for charging the 3.7V Li-ion cell.
      However please remember that the circuit does not include an over charge protector so make sure to monitor it manually and remove it as soon as it gets fully charged.

      Reply
    • Swagatam says

      Hi Jhud, you can use it with a 1 ohm 2 watt resistor instead of the shown 5 ohm….but still the the charging time could be much prolonged with this IC.

      Reply
  65. Ajay Verma says

    sir my model is shoe mobile charger can i use the circuit of battery opperated mobile charger in my model

    Reply
    • Swagatam says

      Ajay, can you provide more details about the shoe charger, regarding its concept and voltage?

      if the output from it is above 5V in that case you can employ the above shown circuits.

      Reply
  66. Suriya Sundar says

    Hi sir,i am surya can i increase the watts of the R1 to10w it will work or damage the cellphone

    Reply
    • Swagatam says

      Hi Suriya, yes you can do it, it will not affect the cellphone or the charging of the cellphone

      Reply
  67. Sudhee Krishnan B says

    SIR
    WHAT WILL HAPPEN WHEN THE PHONE IS FULLY CHARGED….
    DOEST IT STOP CHARGING
    ( IS OVERCHARGE PROTECTION FEATURE THERE IN MOBILE PHONES)

    Reply
    • Swagatam says

      Sudhee, yes all cell phones have an in-built highly accurate over charge cut off circuitry, so there's never a danger of an over charge to the connected cell phone even if it remains permanently connected with a switched ON charger……

      Reply
  68. Swagatam says

    capacitors that are marked with (+) or (-) sign for their leads are polarized and ones that are without this are non-polarized….for example all ceramic capacitors are non-polar while all electrolytic caps are polar, unless specified

    Reply
  69. Ahamed Anaz says

    Sir wat is polar and non polar. Plz

    Reply
  70. Ahamed Anaz says

    Sir can u plz tell us how u chose the specs of parameters. And help us to know the purpose of each and every components used in the circuit plz. And finally Shall we use 50v capacitors instead of 25 V capacitors? Thank u.

    Reply
    • Swagatam says

      Ahmad, since a cell phone normally requires around 4.5 to 5V as the charging input therefore I selected 7805 IC for regulating the input to 5V. The capacitors are just for filtering any residual noise in the DC and are not so crucial, the limiting resistor acts like a buffer so that the all types of cell phones become compatible to the output from the charger, and the current gets adjusted accordingly through the resistor.

      Reply
    • Swagatam says

      …50V capacitors will also do…

      Reply
    • Ahamed Anaz says

      Thank u very much sir. I thought this post was outdated so u may not reply. Happy to see ur reply. And does the value of output current differs wen we use differently rated batteries. If it so then different current values don't affect th mobile phone battery?

      Reply
    • Swagatam says

      You are welcome Ahamad,…..nothing is outdated in my site, everything's LIVE and updated regularly with my expertise.

      output current does not matter because the voltage is constant, so you can use any mobile with this circuit which uses 3.7V cell, it will start charging immediately….but bigger cellphones will take much longer time to get charged than smaller phones

      Reply
  71. raymond gablines says

    Good Day Sir,
    I follow the circuit that you given sir, but i use other value of components sir. D1= 1n4007, C1= 100uF/16v, R1= (Brown, Block, Brown, Gold= 10 x 1= 10 ohms [5%]), C2= 100uF/25v. Is it ok sir?

    Reply
    • Swagatam says

      Good day raymond,

      the 10 ohm resistor should be rated at 2 watt, rest are all OK.

      Reply
  72. laiza banatlao says

    can i use solar panel as a 12v supply for this circuit…tnx for the answe..

    Reply
    • Swagatam says

      yes you can do it.

      Reply
  73. Vivekanand Prasad says

    helllo sir, i am using a 18650 battery hat i have extracted from my laptop cell. NOw please provide me a circuit that can provide an ouput of 5v 2amp, while im giving an input of 4.1 volts.

    Reply
    • Swagatam says

      hello Vivekanand,

      it's not possible to get 2amp current from a 18650 battery.

      Reply
    • Vivekanand Prasad says

      But, I have purchased a power bank recently and when i opened it apart i have found the same battery lying inside the power bank. The output of the power bank is 2 amps.

      Reply
    • Swagatam says

      2amp may be OK at 3.7V but not at 5V, anyway you can try the following circuit:

      https://homemade-circuits.com/2014/11/boost-charger-circuit-for-super.html

      use 5.1V zener for Z1.

      Reply
  74. Muhammad Fahad says

    Hi sir
    i made this circuit. but when i am connecting diode IT DOESN'T WORK. BUT WHEN I DISCONNECT DIODE IT'S WORK. KINDLY SIR PLEASE TELL ME IS THERE ANY PROBLEM IF I NOT CONNECT DIODE IN THIS CIRCUIT?

    Reply
    • Swagatam says

      Hi Muhammad,

      the diode is not crucial you can simply remove it and connect the battery directly with the 7805

      Reply
    • Muhammad Fahad says

      Hi Swagatam!
      I did it but i am facing one more problem. it is outputting 4.5v dc i need 5vdc proper voltage for charging my android phone. and run my usb portable speaker i removed resistor . but it's not working. by this circuit my phone is charging just 4% in hour. it is too slow,

      Reply
    • Swagatam says

      Hi Muhammad,

      a 7805 will give 5V precisely, your IC could be duplicate, check it.

      For fast charging you may need to build a PWM charger as shown here:

      https://homemade-circuits.com/2013/03/how-to-convert-12v-dc-to-220v-ac-using.html

      just modify the coil for generating 6 to 10V instead of the proposed 220V in the diagram.

      Reply
  75. Dev Aarya says

    Hello Sir,
    I made that charger and its working but theres slow charging rate for Samsung mobiles, it takes many hours. can i fix it by modifying the circuit? and i want to put an LED indicator light in that circuit, where do i fix it?
    THANX!

    Reply
    • Swagatam says

      Hello Dev, try reducing the 5 ohm resistor to 2 ohm and check the response….for getting an LED indication connect a LED with a series 1 k resistor across the 2 ohm or the 5 ohm resistor

      Reply
  76. Dev Aarya says

    dear sir
    can i use (100uF and 220uF) 25volt capacitors on above circuit and IC ctc13651?
    it will work properly ?

    Reply
    • Swagatam says

      dear Dev, such big value caps are not required for the above 7805 circuit, you can use smaller caps, I am not sure about ctc13651 circuit because i have not seen it

      Reply
  77. siddu says

    Hi sir,

    Above mobile charging ckt is working fine but charging time taking more with battery 12V/7Ah I mean its not charging normally using charger as my Samsung Mobile charger specs out put is 12V/0.7A so kindly suggest me how to reduce long charging time.
    From Siddhalingesh

    Reply
    • Swagatam says

      Hi Siddu,

      the above circuit will not charge your phone quickly, if we try to increase current the phone may refuse to take the charge…..however you can try decreasing the 5ohm resistor to 3 ohm or 2 ohm and check the difference.

      Reply
  78. Utkarsha 1992 says

    Hello sir, i am utkarsh . Sir, i am try to make cell phone charger by lm 7805 resiser diode and the capacitor . All the components are same as you mention except capacitor(it is 63v 1micro f) .
    But sir i have a proble my phone shows charging but it take more than 10 hours to charge and then i replace all componet then charge it by only ic but i did not get any gain. I also try to vary resistor value but no effect . Please help me soon to make charging fast and also the above circuit could not able to charge nokia 1600 and 2626 … Thank you sir… Please reply soon at my mail (rudresht2@gmail.com) thankyou…

    Reply
    • Swagatam says

      Hello Utkarsha,

      what is the input current that you have used? It should be minimum 1amp rated.

      If you want an smps version you may try the following design, it will charge all your phone battery quickly:

      https://homemade-circuits.com/2014/02/220v-smps-cell-phone-charger-circuit.html

      Reply
  79. Yoshin says

    Ok sir..tq for ur comment

    Reply
  80. Yoshin says

    Oh i see..sir i also would like to ask you about hardware implementation for speed control of DC drive by mobile phone. The mobile key in the amount of duty cycle and send the signal to the chopper, connected to the dc motor. Speed changes by duty cycle. Do you have any idea on how to make the circuit since no software is needed. I mean how we key in the amount of duty cycle in the mobile phone? Thanks..

    Reply
    • Swagatam says

      sorry, I do not have any easy idea for this, it could possibly be done through DTMF but will consume phone balance.

      Reply
  81. Yoshin says

    Hi sir. Im thinking about using piezoelectric sensor to be used as the input supply for the mobile charger. Do you think it is possible?

    Reply
    • Swagatam says

      Hi Yoshin,

      you would require a 1000 piezos in series/parallel and a lot of sound pressure to create a valid charging voltage for the cell phone.

      Reply
  82. jacob arul says

    Sir normally mobile phone charger have lot of components so mobile battery life is well.but in this circuit have simple few components how to trust this and what about mobile battery life after charged this circuit?plz ans me sir.

    Reply
    • Swagatam says

      Jacob, the above circuit also has many many components all hidden or embedded inside the 7805 IC, so it's also sophisticated and absolutely safe, moreover your cell phone has a built-in overcharge cut-off protection so there's no danger of the battery getting over charged.

      Reply
  83. marque torres says

    Hi Sir..

    Your blog gives a lot of knowledge about charger circuit… thanks for this ideas as will as the circuit you shared to us… i would like to make a 48 v 1+ amp supply, can i use the above circuit with IC??? or what should be the value of R=?,C=? and the IC number=? … thanks a lot Sir…. God Blesses you always…

    Reply
    • Swagatam says

      Thanks Marque,

      48v cannot be achieved using fixed voltage regulator ICs, you will have to make a transistor regulator circuit as given in the following post:

      https://homemade-circuits.com/2012/01/how-to-make-versatile-variable-voltage.html

      Reply
  84. Mayur khuman says

    hello sir can i use 4.7 ohm resistance at output side instead of 5 ohm
    and can this circuit charge my android phone also
    plzz ur rply is very important for me

    Reply
    • Swagatam says

      yes 4.7 ohms will do.
      It will charge your android phone also, the 4.7 ohm may need to be reduced for making the charging a little quicker.

      Reply
  85. Moazzam Shah Jee says

    Sir,
    Plz tell me how to control 24watt energy sever for remote control.

    Reply
  86. Kazuto Kirigaya says

    hello sir,
    sir what if I remove the diode,capacitors and the resistor in the circuit and just connect the wires directly to its places connected to the IC? Will it still work?

    Reply
    • Swagatam says

      hello kazuto, the resistor is compulsory, the capacitors can be removed, and it will still work provided the input is a pure DC

      Reply
  87. ABDUL BASIT says

    sir using different gates,i have to make circuit . there are 7 tanks available,when 3 0f them are empty so led which is connected at output is glow. A combination of gates is using here.what logic is using sir??

    Reply
  88. ABDUL BASIT says

    Hello sir.
    Sir I want some help from your side. Sir I have project regarding computers logic design. Topic is:
    DESIGN AND IMPLEMENT A CIRCUIT THAT COULD GLOW A LED WHEN 3 OF THE AVAILABLE 7 TANKS NEED A REFILL.
    Sir I want circuits or if u have idea, so tell me.
    THANKS SIR………

    Reply
    • Swagatam says

      Hello Abdul,

      You will have to provide me with full details regarding the application need, only then I would be able to come up with something suitable

      Reply
      • kurt Aljarreau tordeilla says

        HI sir can i use this circuit on my 3.8v 1500mah battery?

        Reply
        • Swagatam says

          yes you can, just reduce the resistor values from the shown 5 ohm to 1 ohm

          Reply
    • Swagatam says

      Helol Abdul,

      Where will these tanks be used, what kind of liquid will be used in these tanks?

      Reply
    • Rehan Qurashi says

      Dear sir can I use old cellphone batteries as a cellphone power bank if yes then how plz give a simple circuit

      Reply
  89. charles Odtohan says

    good day sir… i did loved your blog.. bcoz its very usefull here in our place this time becauze we have no electricity… so i did make your circuit but i got an error in my cellphone.., bad contact of charger… i did use 2 10uf, and 5ohms 2 watt.. pls help.. thnx..

    Reply
    • Swagatam says

      thanks charles, try 10 ohms in place of 5 ohms or some higher value and check the result

      Reply
    • charles Odtohan says

      tnx sir… i'll try as soon as i can buy 10 ohms or higher…
      —–
      sir, i have here a 9v dc solar panel.. i only get around 5.5v-8v dc (not stable) if its not so sunny… can i still use this circuit?

      Reply
    • Swagatam says

      yes, you can safely use the above circuit with your solar panel.

      Reply
  90. ali khan says

    sir meray pas12v 2.5amp dc bttry hy or mujay 9v aor 1amp output ke zarurat hay,,,,plz Circuit Diagram share krday,,,,,

    Reply
    • Swagatam says

      You can use a 7809 IC at the output, it will give you a 9V/1amp output from your 12V battery.

      The connections will be same as in the above 7805 design

      Reply
    • Jhud Ador says

      hello sir.. i have a samsung galaxy duos gt i9082 the battery is 3.8V Li-ion, 2100mAh

      can i charge it in my motorcycle using the above circuit?

      Reply
    • Swagatam says

      Hi Jhud, you can do it, but use two 7805 ICs in parallel for getting a better current gain and quicker charging rate. Make sure that both the ICs are mounted on a common heatsink. also reduce R1 to 3 ohms/5 watts

      Reply
  91. Alealu says

    Thank you,and what about the fluctuation of the sun,it cant affect the battery?
    bic the output from the sun is not constant,

    Reply
    • Swagatam says

      when you say it's a 5V panel it signifies the peak value at peak sunshine, so technically it cannot exceed this level.

      But anyway you can use the above circuit in conjunction with it for better safety.

      Reply
    • Alealu says

      I mean, even if it is 5v peak this voltage do not exceed 5v but may goth below 5V ,so the voltage may be 5,4,3,2…..v depending up on sunshine,As a resale,is such low voltage is safe for mobile battery life????

      Thank you

      Reply
    • Swagatam says

      The cell phone will stop charging once the voltage reaches below 4V.

      Lower voltages will not harm the cell phone.

      Reply
  92. Alealu says

    Heloo Dear sir
    I like your response and advise and bless you!!
    My question is is it good to use 5v,1w solar panel for the above circuit application with out 7805??What about 6v ,1w solar panel with 7805????

    Reply
    • Swagatam says

      Hello Alealu

      Thanks!

      with a 5V solar panel you don't have to use any IC at the output, you can connect your cell phone directly with the panel via a 5 OHM/ 1 watt resistor….it will start charging.

      Reply
    • Swagatam says

      ……same with a 6v panel.

      Reply
  93. faizan khan says

    hello sir
    sir mujhy 12v bike ki battery sy mujhy 15v out chahey or internet device chalane hai
    or woh bhe atomatic yane k lite jae to auto battery per ajae plz plz plz plz plz sir help me…………plz plzp plz.

    Reply
    • Swagatam says

      hello faizan,

      make this circuit first for 12v to 15v conversion:

      https://homemade-circuits.com/2012/09/led-emergency-light-circuit-using-boost.html

      then i'll tell you what to do next.

      Reply
  94. Swagatam says

    You are welcome, Pukhrambam!

    Reply
  95. Danish Khan says

    hello sir!!!!
    can u please tell me what is the function of capacitors in the above circuit ???

    Reply
    • Swagatam says

      Hello Danish,

      It's there for filtering noise and voltage spikes.

      Reply
  96. Swagatam says

    I am sorry the above circuit cannot be upgraded any further. You can use an LM338 design and adjust the voltage to suit the cell phone needs. You may refer to the first circuit in this link:

    https://homemade-circuits.com/2012/04/ic-lm338-application-circuits-explained.html

    Reply
  97. Ravinder Kumar says

    Ravinder Kumar from Indigenous Home made Tech is here -Dear sir i used u r given circuit (with C1,C2= 10uF/25V )BUT by using diode and resistance does not work ,so i have removed diode and resistance now its charge but not 100% it charges the cell phone only to 70% by using 6volt 4.5Ah Battery ,
    Request you please suggest to increase charging efficiency limit to 100% .

    Reply
  98. Swagatam says

    will depend on the AH rating of the battery and the phone.

    Reply
  99. ABDUL BASIT says

    HELLO SIR..
    SIR MJHE UNI PROJECT K LIA AK CIRCUIT CHAHEA JISME 2 IC lm714 US HO..SIR PLEASE KOE HOMEMADE PJOJECT KA LINK SEND KR DIJEA..
    I WILL BE THANKFUL TO YOUU…………….

    Reply
    • Swagatam says

      Hello Abdul,

      You can try the first circuit given in this link:

      https://homemade-circuits.com/2011/12/how-to-build-electronic-spy-bug-circuit.html

      Reply
    • Swagatam says

      ….sorry, the above circuit uses a single 741, try the following one, replace the LM324 opamps with two IC741:

      https://homemade-circuits.com/2012/04/make-this-simple-motion-detectorsensor.html

      Reply
      • Khan Baig says

        Sir, I want to build a cell phone charger which input is 220 V AC. When cell phone charging is completed then charger should be switched off automatically to save / conserve the elctricity. The reason is that when cell phone is charged fully and charger will not switch off automatically. Then two problems occures. One is over charging which can damage the cell phoe circuit. Second charger it self may be burn out. Please provide me full guidance. Thanks

        Reply
        • Swagatam says

          Khan Baig, All cell phones have in-built auto cut off, so the battery will never get over charged. Still if you wish to switch OFF the circuits presented above automatically, to reduce power consumption, I’ll surely do it soon and update the same.

          Reply
    • ABDUL BASIT says

      thanks sir.
      but I m student of 3rd semester. this schemetic is little bit complex
      for me.so sir please send me an easy schematic. so I can make it .
      thank u sir for helping me a lot… …

      Reply
    • Swagatam says

      Hi Abdul,

      I don't have any simpler circuit than this at the moment, I'll try to find it and tell you soon.

      Reply
    • ABDUL BASIT says

      HELLO SIR……..
      SIR APNE JO SEND KIA THA LINK ME WOHE BNA RHA HUU..
      MENE APKE BLOGES ME RELAY CONNECTION PARHA . KCH SMJH AYA SIRF YH BTA DE AP K JO RELAY KI 5 PINS HA WO KHA KHA CONNECT HA???
      N/C & N/O KHA CONNECTED HA:COIL TERMNALS KHA CONNECTED HA??
      AUR JO PICTURE ME 12 VOLT K UPAR BLUE LINE HA WO KHA CONNECT HORAE HA.
      SIR I HAVE ONLY 3 DAYS TO MAKE IT .
      THANKSS…..

      Reply
    • Swagatam says

      The square box named 'relay" is the coil of the relay, among the contacts the upper circle is the N/C and the lower circle is the N/O, the central link is the moving pole of the relay.

      Reply
    • ABDUL BASIT says

      THANKS SIR.. YOU CLEARED MY CONCEPTS.
      BS MJHE YH BTADE N N/O, N/C & MOVING POLE OF THE RELEY CIRCUIT ME KHA CONNECTED HAIN????AK TO YH RELAY ME CONNECTED HA LEKIN YH CIRCUIT ME KHA CONNECTED HA YH NAE PTA CHAL RAHA..

      Reply
    • Swagatam says

      N/O, N/C and the pole are not connected to the circuit, they are connected to the load or an alarm via AC mains, there's no connection with the circuit.

      If you are using a DC alarm then you may connect it with the circuit 12v supply.

      Reply
    • ABDUL BASIT says

      ok sirr
      sir jo 12 volt dc alarm ha iska koe link send krde. mjhe zehan me idea nae arha..
      project bhht acha lga ha mjhe iSlia yhe bnana cha hu.complex ha but i will try my level best.
      aur relay ki 3 wire jo alarm se connect HA uska be lnk btade
      THANKS SIR…….

      Reply
    • ABDUL BASIT says

      sir mjhe dc alarm ka idea nae ho rha. plz send me link about dc alarm. aur is circuit me sensor knsi chez ha jaha se motion indicat hogi aur alarm on hoga

      Reply
    • Swagatam says

      don't make the aarm, buy it from the market, you can use a car musical horn or a 12v musical door bell.

      relay connection:

      pole to 12V(+), N/O to alarm (+) wire and (-) of alarm to circuit ground or supply negative.

      Reply
    • ABDUL BASIT says

      THANKS SIR..
      sir yh jo diagram me A1 HA ISKI Pin 1 to led k sth aur pin aur pin 2 potentiometer k sth ha but confusing pont is k pin 1 & pin 2 k bech me se ak point upar 12 volt aur resister k sth node bna rha ha. yh ks pin se nkal k upar ja rha ha.aur sirf A1 KI 3 PIN CONNECTED ha bki kia ground krni ha???
      and same question for A2 .usme be pin 5 & 7 connected ha aur bech mese ak wire jake grounded ha.yh knsi wire ha???

      Reply
    • ABDUL BASIT says

      SIR IS THERE ANY WAY TO CONNECT WITH YOU & YOUR KNOWLEDGE DIRECTLY????
      BECAUSE SOMETIMES I WANT QUICK ANSWERS AND FROM BLOGS, I HAVE TO WAIT 1 DAY. KINDLY TELL ME ANOTHER WAY SO THAT I CONNECT WITH YOU DIRECTLY ..
      THAKNS SIR..

      Reply
    • Swagatam says

      It's the supply pins of IC324….positive line goes to pin4 and the ground pin goes to pin11.

      I am sorry you can contact only through this blog.

      Reply
    • ABDUL BASIT says

      SIR………
      datasheetoo.com/datasheet-application/automotive/electronic-siren-circuit-diagram-using-741-op-amp-ic.html
      THIS IS ELECTRONIC SIREN . SIR I WANT TO ASK THAT SPEAKER IS PRESENT THERE,WHERE I CONNECTED INPUT SOUND SO SPEAKER CAN AMPLIFY???
      THANKSS SIR FOR HELPING ME A LOT…

      Reply
    • Swagatam says

      I did not understand your question, what are you trying to make?

      Reply
    • ABDUL BASIT says

      Sir please tell me connection of relay with dc alarm . I am using dc alarm for output.
      Secondly, if I want to check the circuit that it is working or not without an alarm, how I check it???
      Actually mjhe teacher ko check krwana ha without alarm.

      Reply
    • Swagatam says

      relay connection:

      pole to 12V(+), N/O to alarm (+) wire and (-) of alarm to circuit ground or supply negative.

      The red leds will be shut off after setting up, and when a motion is detected across any of the LDRs the relevant red LED will light up indicating a motion.

      Reply
    • ABDUL BASIT says

      This means sir that N/0 does not use in this circuit.??
      And pole se phir 12 volt p connect krna ha?? I can't understand. Please send any diagram from which I understand.
      THANKS….

      Reply
    • Swagatam says

      pls read the connections again, N/O is connected to (+) of alarm circuit, N/C is blank, not connected anywhere.

      (-) of alarm circuit is connected to supply negative

      relay pole is connected to supply positive

      Reply
    • ABDUL BASIT says

      I UNDERSTAN SIR..
      SIR IN MY CIRCUIT,ONLY ONE LDR IS WORKING ,WHEN I DISCONNECT ONE LDR,OTHER LDR WORK AND OTHER PROBLEN IS THAT IT WORKS IN OPPOSITE FORM MEANS WHEN IT DETECTS ANY MOTION,LED OFF OTHERWISW IT ON ALL THE TIME.
      AND SIR TELL ME HOW I SET P1 & P2???
      THANKSS….

      Reply
    • Swagatam says

      you may have connected the pinouts wrongly, i have tested this circuit it works superbly.
      when correctly set both LEDs will switch off completely and illuminate only when a shadow is detected across any of the LDRs.
      I have explained the set up procedures in the article.

      Reply
    • ABDUL BASIT says

      sir kindly tell me the connection of potentiometer?? like it's first leg is connected to 10k resister ,i m confused about second & third pin connection.tell me the connections for both , P1 AND P2.
      THANKS FOR HELPING ME ALOT..

      Reply
    • Swagatam says

      use the center pin and any one of the other pins, that's all…
      center pin is compulsory, the other one can be any of the remaining two.

      I have made some changes in the diagram, please do it in your circuit also, it will give better results, and pls comment on motion sensor article, not on this page.

      Reply
  100. umang jain says

    can i use mobile charger to start motor?
    motor = 0/6.0 v
    charger = output – DC 6.0 v

    Reply
    • Swagatam says

      yes you can

      Reply
  101. umang jain says

    can i use mobile charger to start motor?
    motor = 0/6.0 v
    charger = output – DC 6.0 v

    Reply
  102. Swagatam says

    yes you can.

    Reply
  103. Swagatam says

    No changes would be required, use the same circuit for 6V input.

    Reply
  104. Swagatam says

    If it's 4V then it would charge your cell phone when hooked directly, anything less than 4V would make the charging inefficient and sluggish.

    You are welcome!

    Reply
  105. Swagatam says

    mobile chargers do not have auto shut off feature, rather cell phones have auto cut off feature in-built, therefore it's safe because the cell phone in-built circuit would cut off as soon as its battery gets fully charged.

    Reply
  106. Myhomm4u says

    Dear Sir ,
    Can i use your diagram to power up my cell phone without attached the battery to the phone?

    Thanks

    Reply
  107. Myhomm4u says

    Dear Sir ,

    I would to know , can I use this circuit to power up mobile phone without battery attached.

    Thanks in advance.

    Reply
    • Swagatam says

      Nope! the circuit will require an input source, otherwise it won't work

      Reply
  108. Siva Murugan says

    sir,this condition ok…the 12v continuously going at 7805 and step down to 3v…normally example you take mobile charger,u have charging mobile, charging and the battery is full….and automatically disconnect the charger….

    in this project,only charging the battery not getting the charge is full condition automatically disconnect condition..how to get automatically disconnect after the batter full..plz give me the circuit and information………

    Reply
  109. Swagatam says

    Hello Omar, just replace the 7805 with a LM123 and it will become suitable for the required application.

    Reply
  110. Swagatam says

    you can use the same circuit which is shown above.

    Reply
  111. ABDUL BASIT says

    sir please tell me if you have any knowledge about any softwere about circuit designing in which bicycle dynamo ,d.c motor or other mechanical equipments present????

    Reply
    • Swagatam says

      No, sorry I don't have any such software.

      Reply
  112. ABDUL BASIT says

    THANKS SIRRR
    THANK YOU…!!!

    Reply
  113. ABDUL BASIT says

    sir can i connect this circuit with motorbike battery and car battery??
    if yes ,so will there any problem of input & outout current because automobile battery's current is very high??
    i know voltage is not a problem.. what about current.
    THANKS FOR YOUR ALL PREVIOUS HELP SIR…..

    Reply
    • Swagatam says

      As long as the input voltage is within 24V, current will not mater, so you can use it freely with your motorcycle battery also.

      Reply
  114. ABDUL BASIT says

    it help me alot.THANKS SIR…
    sir app bta skte ha k ak battery ktne dair run kr skti haa??

    Reply
    • Swagatam says

      i mentioned it in the previous comment, 2 to 3 hours.

      Reply
  115. ABDUL BASIT says

    thanks sir
    sir can you tell me how much time required for charging a mobile???
    & sir i have project about bicycle dynamo. sir if you don't mind can you send me an easy diagram to make bicycle dynamo/bicycle generator??

    Reply
    • Swagatam says

      2 to 3 hours will be required.

      you can connect the dynamo output to the above circuit via a bridge rectifier stage and start charging the cell phone as explained above.

      Reply
  116. Swagatam says

    diode is placed only for safeguarding the circuit from accidental reverse input connection. You can remove it but be sure you connect the input polarity correctly then.

    Reply
