Simple Ni-Cd Battery Charger Circuits Explored

Last Updated on January 20, 2022 by Swagatam 94 Comments

The post discusses a simple NiCd charger circuit with an automatic overcharge protection and a constant current charging.

When it comes to correctly charging a Nickel-Cadmium cell, it is strictly recommended that the charging process is halted or cut off as soon as it reaches the full charge level. Not following this may adversely affect the working life of the cell, reducing its backup efficiency significantly.

The simple Ni-Cad charger circuit presented below effectively tackles the overcharging criterion by including facilities like a constant current charging as well as cutting off the supply when the cell terminal reaches the full charge value.

Main Features and Advantages

  • Automatic cut off at full charge level
  • Constant current throughout the charging.
  • LED indication for full charge cut off.
  • Allows the user to add more stages for charging up to 10 NiCd cells simultaneously.

Circuit Diagram

simple NiCd charger circuit with overcharge protection and constant current charging

How it Works

The simple configuration detailed here is designed to charge a single 500 mAh 'AA' cell with the recommended charge rate of close to 50 mA, nonetheless it could conveniently be customized cheaply to charge several cells together by repeating the area shown in dotted lines.

Supply voltage for the circuit is acquired from a transformer, bridge rectifier and 5 V IC regulator.

The cell is charged with a T1 transistor which is configured like a constant current source.

T1 on the other hand is controlled by a voltage comparator using a TTL Schmitt trigger N1. During the time the cell charges the terminal voltage of the cell is held at around 1.25 V.

This level appears to be lower than the positive trigger threshold of N1, which keeps the output of N1 high, and the output of N2 becomes low, enabling T1 to get the base bias voltage through the potential divider R4/R5.

As long as the Ni-Cd cell gets charged the LED D1 remains illuminated. As soon as the cell gets close to the full charge status its terminal voltage climbs to approximately 1.45 V. Due to this, the positive trigger threshold of N1 rises causing the output of N2 to go high.

This situation instantly turns off T1. The cell now stops charging and also the LED D1 is shut off.

Since the positive activation limit of N1 is approximately 1.7 V and it is controlled by a specific tolerance, R3 and P1 are incorporated to alter it to 1.45 V. The negative trigger limit of the Schmitt trigger is around 0.9 V, which happens to be lower than the terminal voltage of even a completely discharged cell.

This implies that connecting a discharged cell in circuit will never trigger the charging to initiate automatically. For this reason a start button S1 is included which, when pressed, takes the input of NI low.

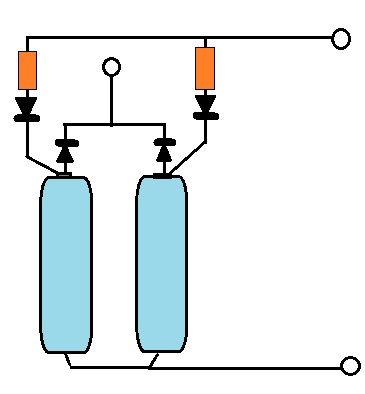

To charge more number of cells the portion of the circuit revealed in the dotted box may be repeated separately, one for each battery.

This ensures that, regardless of the discharge levels of the cells, each one of them is individually charged to the correct level.

PCB Design and Component Overlay

In the PCB design below two stages are duplicated for enabling two Nicad cells to be charged simultaneously from a single board set up.

Ni-Cad Charger using a Resistor

This particular simple charger could be constructed with parts that could be seen in just about any constructor's junk container. For optimum life (number of charging cycles) Ni-Cad batteries must be charged with a relatively constant current.

This is often accomplished rather easily by charging via a resistor from a supply voltage many times higher than the battery voltage. Change in the battery voltage as it charges will likely then have minimal influence on the charge current. The proposed circuit is made up just a transformer, diode rectifier and series resistor as indicated in figure 1.

The associated graphical image facilitates the necessary series resistor value to be determined.

A horizontal line is drawn through the transformer voltage on the vertical axis until it crosses the specified battery voltage line. Then, a line pulled vertically down from this point to meet the horizontal axis subsequently provides us the necessary resistor value in ohms.

For instance, the dotted line demonstrates that if the transformer voltage is 18 V and the Ni-Cd battery to be charged is 6 V, then the resistance value will be around 36 ohms for the intended current control.

This indicated resistance is calculated to deliver 120 mA, while for some other charging current rates the resistor value will need to be reduced down appropriately, e.g. 18 ohms for 240 mA, 72 ohms for 60 mA etc. D1.

NiCad Charger Circuit using Auto Current Control

Nickel-cadmium batteries generally require a constant current charging. The below shown NiCad charger circuit is developed to supply either 50mA to four 1.25V cells (type AA), or 250mA to four 1.25V cells (type C) connected in series, eventhough it could simply be modified for various other charging values.

In the discussed NiCad charger circuit R1 and R2 fix the off-load output voltage to approximately 8V.

The output current travels by means of either R6 or R7, and as it rises transistor Tr1 is gradually switched on.

This causes point Y to increase, switching on transistor Tr2 and enabling point Z to become less an less positive.

The process consequently decreases the output voltage and has a tendency to bring down the current. A balance level is ultimately attained which is determined by the value of R6 and R7.

Diode D5 inhibits the battery which is being charged, providing supply to the IC1 output in case of the 12V is removed, which could otherwise cause serious damage to the IC.

FS2 is incorporated to protect against damage to the batteries which are under charge.

Choice of R6 and R7 is done through some trial and error, which means you will need an ammeter having a suitable range, or, if R6 and R7 values are genuinely known, then the voltage drop across them could be calculated through Ohm's Law.

Ni-Cd Charger using a Single Op Amp

This Ni-Cd charger circuit is designed for charging standard AA size NiCad batteries. A special charger is mostly recommended for NiCad cells for the reason that they possess an extremely low internal resistance, resulting in an increased charging current even if the utilized voltage is just slightly higher.

The charger should therefore include a circuit to restrict the charge current to a correct limit. In this circuit, T1, D1, D2, and C1 work like a traditional step-down, isolation, full-wave rectifier, and DC filtering circuit. The additional parts offer the current regulation.

IC1 is employed like a comparator with a separate buffer stage Q1 providing a appositely high output current functionality in this design. IC1's non-inverting input is supplied with a 0.65 V: reference voltage presented through R1 and D3. The inverting input is connected to ground through R2 within quiescent current levels, allowing the output to get completely positive. Having a NiCad cell attached across the output, a high current may make an effort to via R2, causing an equivalent amount of voltage to develop across R2.

It might merely increase to 0.6V, nevertheless, an increasing voltage at this point reverses the input potentials of the IC1 inputs, causing the output voltage to be reduced, and lowering the voltage around R2 back 0.65 V. The highest output current (and also the charge current received) is as a result the current generated with 0.65 V across 10 ohms, or 65 mA put simply.

Most AA NiCad cells possess a optimum preferred charge current of no more than 45 or 50 mA, and for this category R2 must be increased to 13 ohms so that you can have the appropriate charge current.

A few rapid charger varieties may work with 150 mA, and this demands lowering R2 to 4.3 ohms (3.3 ohms plus 1 ohm in series in case a ideal part cannot be procured).

Furthermore, T1 needs to be improved to a variant with a current rating of 250 mA., and Q1 must be installed using a tiny bolt-on finned heatsink. The device can easily charge up to four cells (6 cells when T1 is upgraded to a 12 V type), and all these should be attached in series over the output, and not in parallel.

Universal NiCad Charger Circuit

Figure 1 exhibits the full circuit diagram of the universal NiCad charger. A current source is developed using the transistors T1, T2 and T3, that offer a constant charging current.

The current source becomes active only when the NiCad cells are attached the correct way round. ICI is positioned to check the network by verifying the voltage polarity across the output terminals. If the cells are rigged properly, pin 2 of IC1 is not able to turn as positive as on pin 3.

As a result IC1 output gets positive and resources a base current to T2, which turns on the current source. The current source limit could be fixed using S1. A current of 50 mA, 180 mA and 400 mA could be preset once the values of R6,R7 and RB are determined. Putting S1 at point 1 shows that the NiCad cells can be charged, position 2 is intended for C cells and position 3 is reserved of D cells.

Miscellaneous Parts

TR1 = transformer 2 x 12 V/0.5 A
S1 = 3 position switch
S2 = 2 position switch

The current source works using a very basic principle. The circuit is wired like a current feedback network. Imagine S1 to be at position 1 and IC1 output is positive. T2 and 13 now begin getting a base current and initiate conduction. The current via these transistors constitutes a voltage around R6, which triggers T1 into operation.

An escalating current around R6 signifies that T1 can conduct with greater strength thus minimizing the base drive current for transistors T2 and T3.

The second transistor can at this point conduct less and the initial current rise is restricted. A reasonably constant current by means of R3 and the attached NiCad cells thus gets implemented.

A couple of LED's attached to the current source indicate the operational status the NiCad charger at any instant. IC1 resources a positive voltage once the NiCad cells are hooked up in the right way illuminating the LED D8.

If the cells are not connected with correct polarity, the positive potential at pin 2 of IC1 will be higher than pin 3, causing the op amp comparator output to become 0 V.

In this situation the current source will remain switched off and LED D8 will not illuminate. An identical condition can transpire in case no cells are connected for charging. This may happen because pin 2 will possess an increased voltage compared to pin 3, due to the voltage drop across D10.

The charger will only activate when a cell comprising of a minimum of 1 V is joined. LED D9 shows that the current source is operating like a current source.

This might appear quite peculiar, however an input current generated by IC1 just isn't adequate, the voltage level also needs to be large enough to reinforce the current.

This implies that the supply should always be greater than the voltage across the NiCad cells. Only in this situation the potential difference will be sufficient for the current feedback T1 to kick-in, illuminating the LED D9.

PCB Design

Using IC 7805

The circuit diagram below demonstrates an ideal charger circuit for a ni-cad cell.

This employs a 7805 regulator IC to deliver a constant 5V across a resistor, which causes the current to be dependent on the value of resistor, instead of on the cell potential.

The value of the resistor should be adjusted with regard to the type that is used for charging; any value between 10 Ohm to 470 Ohm could be used depending on the cell mAh rating. Due to the floating nature of the IC 7805 with respect to the ground potential, this design could be applied for charging individual Nicad cells or series of a few cells.

Using 7805 and LED based Constant Current

The next circuit is dependent on a voltage regulator 7805 which handles a fixed load R1, and a varying load in the form of two NiCd batteries. The outcome is quite noticeable: voltage and load both are constant. The complete device including the voltage regulator and load R1 could subsequently be hooked up in series to a varying potential load, which is in this particular case our nickel cadmium battery which is going to be charged, and we have the current remaining totally constant. This situation is, surely, always assuming that the input voltage is adequately high.

The circuit includes a small extra feature which is the LED connected in series with the ground pin of the regulator lC. This LED is configured to work like a NiCd charging indicator.

A predetermined current of 8mA +/-1 mA, that is determined by the preferred output current and which should be incorporated to this output current, runs by means of the LED. While fixing the value of the resistor R1, it is crucial to rememeber about the extra 1.5 V dropped across the LED.

As already considered, this current source is utilized as the charging current for NiCad batteries. As opposed to lead-acid batteries NiCd batteries must be charged with a constant current.

Typical NiCads needs to be charged with a current that must be 1/10th value of its mAH rating, and charged for a approximate duration of 14 hours.

It is always recommended to ensure that the NiCd cell is fully always discharged, and then quickly connected to a charger. This will enable the cell to have a longer life and provide higher number of charge/discharge cycles.

Charging Ni-Cd Cell from a 12V Supply

The most fundamental principle for a battery charger is that its charging voltage must be more than the nominal battery voltage. For example, a 12 V battery should be charged from a 14 V source.

In this 12V Ni-Cd charger circuit, a voltage doubler based on the popular 555 IC is used. Because output 3 of the chip is connected alternately between the +12 V supply voltage and earth, the IC oscillates.

C3 gets charged through D2 and D3 to almost 12 V when pin 3 is a logic low. The moment pin 3 is logic high, the junction voltage of C3 and D3 boosts to 24 V due to the negative terminal of C3 which is plugged at +12 V, and the capacitor itself holds a charge of the same value. Then, diode D3 becomes reverse biased, but D4 conducts just enough for C4 to get charged over 20 V. This is more than enough voltage for our circuit.

The 78L05 in the IC2 positions acts as a current supplier which happens to hold its output voltage, Un, from appearing across R3 at 5 V. The output current, In, can be simply calculated from the equation:

Iη = Uη / R3 = 5 / 680 = 7.4 mA

The properties of the 78L05 include drawing current itself as the central terminal (usually earthed) gives ours around 3 mA.

The total load current is about 10 mA and that is a good value for constantly charging NiCd batteries. To display that charging current is flowing, an LED is included in the circuit.

Charging Current Graph

Figure 2 depicts the properties of the charging current against battery voltage. It is quite evident that the circuit is not entirely perfect as the 12 V battery will be charged with a current measuring only around 5 mA. A few reasons for this:

  • The circuit’s output voltage seems to drop with the escalating current.
  • The voltage drop across the 78L05 is around 5 V. But, an additional 2.5 V must be included to ensure the IC operates precisely.
  • Across the LED, there is most likely a 1.5 V voltage drop.

Considering all the above, a 12 V NiCd battery with a rated capacity of 500 mAh could be charged uninterruptedly using a current of 5 mA. In total, it is only 1% of its capacity.

Charging 8 Cells in Series with Auto Cut off

With a constant current of up to 100 mA, this circuit can charge up to eight 1.25 V Nicad batteries. The charger trips and charging stops when the battery voltage reaches a predefined threshold. The voltage of a Nicad cell rises as it is charged, reaching a maximum of about 1.45 V when completely charged.

NOTE: Q3 should be 8550 or BD140

When the voltage of an eight-cell battery reaches 11.6 V, it is completely charged. A Nicad cell's suggested charging current is generally 10% of its mAh rating, or 50 mA for a 500 mAh battery. Connect a voltmeter to terminals A and B to complete the circuit. PR1 is set to the appropriate trip voltage, which in this case is 11V6 for eight batteries.

Then, between terminals C and D, a milliampere is attached. The minimum charging current is adjusted by PR2 when the reset button SW1 is briefly pushed. Between terminals C and D, the battery could now be attached. LED 2 illuminates as soon as SW1 is pushed, indicating that the battery is charging.

The charging current reduces to zero when the battery voltage reaches the predefined trip voltage, and LED 1 illuminates, showing that the battery is completely charged.

You'll also like:

  • 1.  3 Simple Solar Panel/Mains Changeover Circuits
  • 2.  Simple Kitchen Timer Circuit – Egg Timer
  • 3.  High Current Solar Battery Charger Circuit – 25 Amps
  • 4.  How to make simple a LI-FI (Light Fidelity) Circuit
  • 5.  LM10 Op Amp Application Circuits – Works with 1.1 V
  • 6.  Simple Car Burglar Alarm Circuit

About Swagatam

I am an electronic engineer (dipIETE ), hobbyist, inventor, schematic/PCB designer, manufacturer. I am also the founder of the website: https://www.homemade-circuits.com/, where I love sharing my innovative circuit ideas and tutorials.
If you have any circuit related query, you may interact through comments, I'll be most happy to help!

Subscribe2




Reader Interactions

Comments

    Your Comments are too Valuable! But please see that they are related to the above article, and are not off-topic! Cancel reply

    Your email address will not be published. Required fields are marked *

  1. A. K. GOEL says

    Dear Sir. Now I got a great teacher like you. Thank you very much. As I am a hobbyist and not a well trained person in electronics, I need assistance from you to understand the working and construction of the circuits. For the last few days I came to contact with you and regularly seeking help to make the circuits and you quickly solved my problems. Now I am a big fan of yours.
    Your NI-CD charger is good I will certainly make it. But now a days cell 18650 is being widely used in solar based and circuits. Please publish a solar panel charger charging the cell 18650.
    Please I tell that to charge a cell 18650 (2100mah) what should be parameters for solar panel
    that is how much volt and amp/watt should be given by the solar panel to charge the cell 18650 and what is time required to charge the cell 18650. If you provide the information regarding solar panel, it will be very easy to purchase a suitable and correct solar panel.

    One more suggestion and I am sure that your subscriber and hobbyist will be very much benefitted. There are large No of places which are not well connected with the electronics components markets and it is very difficult to get the desired components and and due to non availability of the components we could not make the circuit. If you can provide the components, on price, required for the circuits to the subscriber if they demand, it will be great
    help to them. Thanks again.

    Reply
    • Swagatam says

      Thank you Dear AK Goel,
      I have an article published in this website regarding the mentioned cell, you can read it here:
      https://www.homemade-circuits.com/18650-2600mah-battery-datasheet-and-working/
      You can easily charge a 18650 cell from a solar panel through an LM317 regulator circuit by setting its output voltage to 4.1 V.
      The solar panel should be rated 7 V/ 1 Amp minimum.
      There are already many online stores from where the parts can be purchased cheaply. You can buy them from popular stores like amazon, aliexpress etc quite reasonably. I myself purchase the parts from these sellers, and so far there hasn’t been any issue with them.

      Reply
  2. Carlos says

    Hello good afternoon I am a faithful follower of the website. I want to know if you have a circuit to charge 1.5V and 9v alkaline batteries. Thank you.
    Carlos of Buenos Aires Argentina.

    Reply
    • Swagatam says

      Hello Carlos, sorry I do not have a circuit to charge dry batteries.

      Reply
      • shampuan says

        Hello Swagatam, we are actually able to charge dry batteries (zinc-carbon and alkaline). But how productive this is is an open to discussion fact. By charging my dry batteries for years, I have been able to minimize my annual battery consumption. So I am more respectful to nature. I would like to help you with this. If you like the idea, I can give you some ideas about it. For example, in the charging of dry cells, the 1/10 charge current theory does not apply as in other types of batteries. Consider an AA zinc-carbon battery. To charge this battery, you must apply 2.5V voltage and 10mA current. Also, your power supply should not supply a clean and smooth current to the battery. It may sound strange, but batteries do not like the smooth charging currents that do not involve ripple. I’ve seen you write in another article that charging with pulsed current extends the life of batteries, so I know you know this. So if you provide 2.5V voltage per battery, 10-15mA charging current and half-wave direct current, you can safely charge the batteries without leakage. This charge current is 7mA for AAA types. It is also around 4-6mA for 6F22s. For “D” size batteries produced for flashlights, 50-60mA is sufficient. I have drawn many simple charging circuits where I can do all these things. You can also evaluate this idea if you want. Remember! We do it for nature, not for saving money.

        Reply
        • Swagatam says

          Thank you Shampuan, for the interesting information! I hope the readers will find the info very useful and will be able to revive their dead dry cells and use them for a few more cycles.

          Reply
          • shampuan says

            “… for a few more cycles.”
            Apparently I didn’t need to write the above text: D You know enough and I gave up competing with you: D
            Your website is very good.
            Best regards.

            Reply
            • Swagatam says

              Thanks for the complement Shampuan, appreciate your kind feedback!

              Reply
  3. Vikram says

    Sir can u pls make a circuit for 7.5v with 500 mA output for my Ni-Cd cell .

    Reply
    • Swagatam says

      Vikra, you can try implementing one of these concepts:

      https://www.homemade-circuits.com/simple-voltage-regulator-circuits-using-transistor-and-zener-diode/

      Reply
  4. Michael McBride says

    My wife has become a huge fan of the multi-LED string lights powered by a small solar panel charging a single AA NiCad. Several of these strings have failed due to faulty charging and more seem to require battery replacement more often. I am pretty handy with project boxes and a soldering iron. Do you have a circuit design that I could use and replaces the charging and control?
    Thanks!
    Mike

    Reply
    • Swagatam says

      Hi, You can try the following simpler design, I’ll update the explanation sometime later.
      7805 NiCd battery charger circuit

      The R1 selection table is given below:

      current selection table

      Reply
      • Shalin Patel says

        Hello Sir, You are amazing.
        I have followed many ideas from you, but I am having a doubt about this circuit. Is it Autocutoff circuit after battery becomes full?

        Reply
        • Swagatam says

          Thank you Shalin, the first design is auto cut off, the second one is not, but due to the limiting resistor the design is still safe to use.

          Reply
          • Shalin says

            Sir its giving 20 V output, I am shocked ,How it’s possible?For charging 1.2 volt cell.

            Reply
            • Swagatam says

              Shalin, the series resistor drops the current to a value which ultimately becomes harmless for the battery. You can compare this with an LED, which illuminates safely even with much higher voltages due to a series resistor. However, the drawback of this circuit is that the charging process will be very slow.

              Reply
      • Shalin says

        Sir will this LED glow off after full charge?

        Reply
        • Swagatam says

          In the first circuit the LED will shut off when the battery is fully charged.

          Reply
      • Carlos says

        Hello, good afternoon, my name is Carlos, I have been a faithful follower of the website for several years. I am looking for a 1.2v NI-MH Automatic Battery Charger circuit with auto cut off. thank you very much.

        Reply
        • Swagatam says

          Hello Carlos, you can use an LM317 based power supply and adjust its output to precisely 1.5V for charging the cell safely, auto cut-off will not be required because when 1.5V cell voltage is reached the charging will automatically stop. Make sure the charging current does not exceed 50% of the cell’s mAH rating.

          Reply
          • Carlos says

            Thanks for your quick response. It can also be a timer circuit of up to 15 hours …?

            Reply
            • Swagatam says

              Yes timer can be also used provided the full charge level is slightly reduced.

              Reply
  5. Nélio says

    Hi,
    In order to charge 4 cells, I duplicate the circuit inside grey-dot area and have a single push-button to start the charging process in all 4 cells?
    Thanks.
    Nélio

    Reply
  6. Nélio says

    Never mind my comment.
    I’ve seen it in the PCB layout.
    Ok
    Nélio

    Reply
    • Swagatam says

      OK, thanks for the feedback!

      Reply
  7. Shalin says

    What is the Triggers N1,N2?
    I mean which component is this?
    I am having less experience in electronics.

    Reply
    • Swagatam says

      Those are the gates from the IC74132. These are called NAND gates, there are 4 NAND gates inside the IC, only 2 are used.
      You can also use the IC 4093 IC, it also has 4 gates, out of which 2 can be used. Make sure to ground the inputs of the other two unused gates

      Reply
      • Shalin says

        And also it can charge Ni-Mh batteries also..
        Correct?

        Reply
        • Swagatam says

          yes, surely it can.

          Reply
      • Mitesh says

        Ground the inputs means to joint the input togather?

        Reply
        • Swagatam says

          Connect the inputs of the all the unused gates with the negative line (ground).

          Reply
      • Shalin says

        Sir, How to connect IC in this circuit, because I am a first year B tech student, I don’t know much.
        First, 2 inputs from pin 1 & 2 then pin 3 is output, that output will goes to pin 5 & 6 as a input and pin 4 is final output, then another unused two gates inputs have to be grounded means pin 8 &9 will have to connect and pin 12 & 13 will have to connect and their outputs are left that means the pin 10 & 11.
        Is that correct?

        Reply
        • Swagatam says

          Yes that is correct Shalin.
          for the unused gates, connect all the inputs pins to the negative line (or the positive line), and the outputs can remain open.

          Reply
          • Shalin says

            Negative line means pin 7( Ground)?

            Reply
            • Swagatam says

              yes, and this pin7 must also connect with the negative line of the circuit. These are extremely basic things, if you do not know these things then you are supposed to attempt this circuit.

              Reply
  8. Shalin says

    Sir above diagram is very confusing, is it possible for you to email me a good schematic or change it here itself because R6 resistor is written as twice near 7805 also, What to understand?
    Plz help me out. Moreover I have started your another design but not able ti finish due to unavailability of LTC4060 and that IC is costly also. But you had helped me alot. I will never forget your appreciation. And also recommended everyone to follow your projects.

    Reply
    • Swagatam says

      Shalin, the diagram was taken from an old magazine, so may be it is a printing mistake from their end, but no problem you only have to check the actual values of the resistors, and implement them in your practical circuit.

      Soon I would be adding one more NiCad circuit in the above article. Actually I have many more variants of NiCad charges which I will try to add one by one.
      I am glad my circuits are helping to learn more about electronics, please keep up the good work.

      Reply
      • Shalin says

        Sir please post ASAP, we are waiting for your efforts. God bless you.

        Reply
        • Swagatam says

          Thanks Shalin, I have posted a new design, more will come soon…

          Reply
          • Shalin says

            Thankyou so much sir, and have you tried above circuit, will it works fine?
            Because I am going to order some if the components from online.

            Reply
            • Swagatam says

              You are welcome Shalin, I have not yet tested it, but it is tested by the Elektor electronics engineers.

              Reply
  9. Shalin says

    Sir In 1st circuit 7805 pinouts are correct?
    Bcz supply is going from output to input?🤔

    Reply
    • Swagatam says

      Shalin, the 7805 connection in the first circuit is only symbolic, in practical assembly you must confirm the pinout orientation and then do the connections.

      Reply
      • Shalin says

        But the transistor and IC Gates pinouts are perfect only right?
        And all the resistor values are 1/2 watts,?

        Reply
        • Swagatam says

          Yes they are perfectly OK. All resistors are 1/4 watt

          Reply
  10. Mitesh says

    If we are having 5volt, 800 mAh supply from adapter. Can we proceed after 7805 IC?

    Reply
    • Swagatam says

      You will just need a current limiting resistor after the 5 v supply to charge your NiCad battery safely…

      formula is

      R = 5 – Battery voltage / charging current

      assuming there are 2 AAA NiCad cells in series, then the formula could be solved as:

      R = 5 – 1.2+1.2 / 50 mA
      = 5 – 2.4 / 0.05
      = 52 ohms
      wattage = 2.6 x 0.05 = 0.13 watt 0r 1/4 watt

      Reply
      • Mitesh says

        Actually I want to make auto cutoff circuit, with the above idea it is just charging and will not halt the charging process after full charge, Right?

        Reply
        • Swagatam says

          At the full charge level the battery will stop accepting any further charge if the current is adjusted to 50 ma, however for auto cut off you can apply the other relevant circuits after the 5V input.

          Reply
          • Mitesh says

            Yeah That’s what I am telling, If I have 5V adapter, how much mAh is required?
            Just tell me Minimum and Maximum for the first auto-cutoff circuit?

            Reply
            • Swagatam says

              The input supply current can be around 100 mA

              Reply
            • Mitesh says

              You mean from 5V adopter after 7805 IC portion?

              Reply
              • Swagatam says

                Yes, the 5V adapter can be 100 mA, a 7805 may not be needed if the 5v is constant.

                Reply
            • Mitesh says

              What I will do is I am having 5V 2A supply, from current limiting resistor I will convert into 1A ,That’s it. Rest circuit after IC is same.
              Is that fine?

              Reply
              • Swagatam says

                Yes, you can use a current limiting resistor to limit the current to 100 ma and then use the 3rd design with it.

                Reply
      • Mitesh says

        I think you are wrong, it suppose to be,
        R=5+Battery Voltage/ Charging Current.

        Reply
  11. Daniel says

    What will be the output current after 7805 IC?

    Reply
    • Swagatam says

      Same as the input…

      Reply
      • Daniel says

        Ok Thankyou Sir.
        So If I am having 5V 1A regulated supply, Can I remove 7805 IC and proceed the further circuit?

        Reply
        • Swagatam says

          Sure Daniel, you can remove the 7805 IC, if the input is already 5 V. It is the 50 mA current limit for a standard AAA NiCad that really matters, an increased voltage may be of little significance.

          Reply
      • Daniel says

        If we want to increse tp 60 mAh in 1st circuit, what to do?

        Reply
        • Swagatam says

          You will have to reduce the 15 ohm resistor accordingly.

          Reply
          • Daniel says

            You mean to reduce 15 ohm resistance from potentiometer P1?

            Reply
            • Swagatam says

              I am referring to R1 resistor, reduce its value appropriately to get 60 mA…anyway the circuit is already set for delivering 50 mA so need of any change.

              Reply
  12. rob says

    Hi Swagatam. Thanks for your explanations!
    If you could help… I have four ni-cd cells (1.2v each) in series from old screwdriver. I think they are 3000mAh. I would like to make the simplest charger, this one with a diode and a resistor only. The original B&D power supply give 8.5VAC (yes, AC). Which value resistor? 10R? And how long time to full charge?
    I think I lost something… the formula to this calculation… :-/
    Regards and thanks a lot!!

    Reply
    • Swagatam says

      No problem Rob, the idea is actually provided in the second design. If the transformer is rated at 8.5 V would mean that the peak is 8.5 x 1.41 = 11.98 V or 12 V.

      Therefore applying ohms law, the resistor value should be = 12 – 6 / .05 = 120 ohms

      Reply
  13. Jay says

    If I want to charge single 600 mAh battery, what is the formula, plz reply sir?

    Reply
    • Swagatam says

      the formula has been already discussed in the previous comments

      Reply
  14. Jay L. Stern says

    Thank you for your comprehensive information. I use a gas detector powered by six NiCad “D” cells. The charger for the device has a red and green LED. The green illuminates; the red does not. There is a circuit on the gas detector that lets me know when the batteries are charged, but I always am concerned about overcharging. I haven’t been able to find a 6-cell charger that I can adapt to my gas detector, allowing the batteries to be charged without opening the device and removing the batteries, so I am considering building one using your diagrams and instructions. My electronic knowledge is limited, but I can follow directions and use a soldering iron. Since the total voltage of the six cells in series is approximately 9 V, I presume I would build a charger for 9 V. What I am wondering is if the charger power rating is that of one D cell times 6. Can you comment?

    Reply
    • Swagatam says

      Hi, I think you can take the help of the second concept shown in the above article. It is by far the easiest and the safest Ni-Cd charger that you can get. The associated graph provides all the details regarding the input supply, battery voltage and the resistor value for the current control.

      Reply
      • Jay L. Stern says

        Thank you for the reply. I shall follow your recommendations.

        — Jay

        Reply
  15. Colo says

    Sr. in section “Ni-Cd Charger using a Single Op Amp” you show an scheme circuit with is wrong connected. Electrolytic Capacitor will blow up, and O.P. will not work at all since it is not rightly power biased. Please consider revising.

    Reply
    • Swagatam says

      Thanks Colo, for pointing out the mistake, I have now corrected and updated the diagram accordingly.

      Reply
  16. Norman Kelley says

    Hi Swagatam,
    I have a circuit that requires 12v supply. The circuit is a mouse and rodent deterrent. It is activated by a PIR and flashes 15 white LEDs using a 555 timer. When there is movement the circuit flashes for about 3 minutes. If there is more movement, it will repeat. It is in a location where I only have power when the lights are turned on, so I want to power the circuit with 8-1.2v AA NIMH batteries in series for 9.6v . I would like to design a circuit to automatically charge the battery pack with 12v supply when the lights are switched on and will not overcharge the batteries, but will not discharge the batteries when the lights are switched off. The location is not very accessible, so I want the circuit to be safe and not able to start a fire. I hope you have time to post such a circuit. Thanks!

    Reply
    • Swagatam says

      Hi Norman, you can probably try applying the following concept:

      Ni-Cd over discharge protector circuit

      The LED indicates low battery, at which the load will be almost cut-off

      Reply
  17. Paul England says

    Swagtam,
    I need to initially boost charge and then switch to trickle charge 12v NiCad packs; do you have a circuit which will do that? They are standard ‘Super C’ cells with a capacity of 1200mAh

    Reply
    • Swagatam says

      Hello Paul, you can try the following circuit:

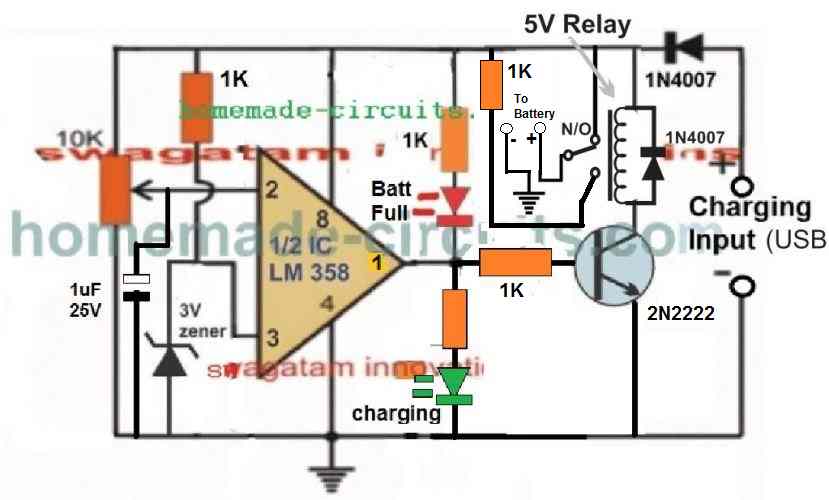

      Ni-Cd boost charger

      Reply
      • Paul England says

        That is excellent, thank you Swagatam

        Reply
        • Swagatam says

          My pleasure Paul!

          Reply
  18. Robert E Ross says

    I am wondering if I can carefully solder very fine wires to ni-cad batteries, for electric razor no longer available batteries. Thank you SIR. Respectfully, Bob.

    Reply
    • Swagatam says

      Hello Bob, If the unit had NiCad batteries originally, then it may be possible to replace with NiCd batts having the same specs as the original

      Reply
  19. Nassim says

    Dear Swagatam
    Hello. would you please tell what is the function of Diode 1N4001 in circuit under the topic “Using IC 7805”
    Thank a lot Sir
    wish you all the best
    Nassim

    Reply
    • Swagatam says

      Dear Nassim, it is for protecting the IC 7805, in case the input side is accidentally shorted. In such situation the voltage from the battery can enter through the IC and damage it, the diode bypasses the IC and protects the IC in such conditions.

      Reply
      • Nassim says

        Dear instructor; Sir Swagatam
        Hello. I thank you very much for answering my questions. You are kindly requested to please tell me:
        1. What should we do to prevent IC7805 from output short circuit ?
        2. Are we allowed to do so with all regulated power supplied 78.. series?
        3. Since the input voltage of 78.. ICs is about 30V, the voltage after bridge rectifier won’t damage the 7805?
        wish you all the best
        affectionately yours
        Nassim

        Reply
        • Swagatam says

          Hello Nassim, the 7805 has an internal short circuit protection therefore even if the output side of the IC is shorted or overloaded that won’t cause any damage to the IC.

          Yes the maximum voltage to 7805 must not exceed 30V preferably, so you will have to make sure that the input supply is rated at 30V

          Reply
          • Nassim says

            Dear Sir engineer Swagatam
            Hello. I hope that you are fine and healthy. I have still one question. I want to know the amount of DC V after bridge rectifier which is certainly
            not above 30V as you have mentioned .
            Thank you in advance for your reply
            Wish you smiling lips
            Best regards
            Nassim

            Reply
            • Swagatam says

              Dear Nassim, the output voltage after the bridge rectifier will be = transformer secondary voltage x 1.41, so you will have to select the transformer accordingly.

              Reply
            • Nassim says

              Dear Sir Swagatam
              Hello and thank you very much. I made a very bad mistake and thought that bridge diodes had been connected directly to 220V mains ???!!! thank you again for your kindness
              I will never forget you great favor
              Wish you all the best
              Truly yours
              Nassim

              Reply
              • Swagatam says

                No problem Dear Nassim, wish you all the best!

                Reply
  20. Robert Graf says

    Hi Swagatam,

    I am an electronics hoppyist and a fan of yours. I am trying to build a circuit board to charge 3 three AA NiCD batteries. The batteries supply power to 8 to 10 5mm 3 volt LED lights through the same circuit board. The input is from a water wheel supplying between 5 and 13 volts. I currently have the input going to a voltage regulator so that I have a reasonably steady 5 to 8 volts input goint to the battery charger. Although not necessary, it would be nice to have an LED light to show charging and an LED light to show fully charged. I purchased a similar product from DiGi Key Electronics. Their part number is 1738-1227-ND. This is a 3.7 volt charger for lithium batteries. The concept is what I need but it only takes a 5 volt input and it is for lithium batteries – so it won’t work for me. Thanks for any help you could give me.

    Reply
    • Swagatam says

      Hi Robert, thank you for liking this site! I Appreciate it!

      You can probably try the following design to charge your battery and also get the required LED indications. The 2N2222 along with its base zener diode restrict the output voltage to the 3.7V Ni-Cd battery to around a fixed 4V. The current limiting resistor must be calculated so that it limits the current to the battery to 50 mA.

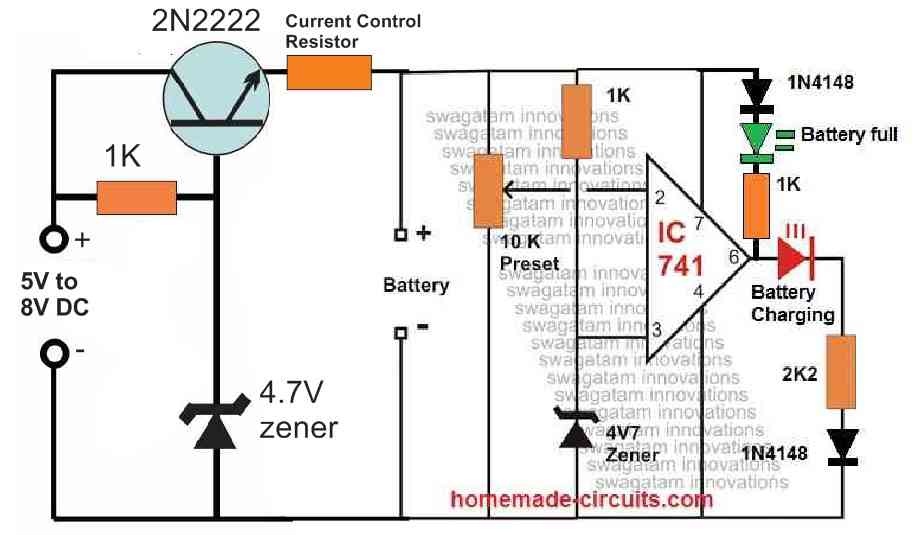

      Ni-Cd chargerwith LEDindicators and constant voltage charger.

      Reply
  21. Robert Graf says

    My previous comment was to build a 3.6 volt battery charger with a circuit board.

    Reply
  22. NÉLIO ABREU says

    Hi Swagatam,
    Can this circuit be used to charge a 9V battery, NiCD?
    Best Regards,
    Nélio

    Reply
    • Swagatam says

      Hi Nelio,

      yes the second circuit can be used for charging a 9V battery. The formula for the resistor will be:

      R = (Supply DC – 9) / 0.05

      Reply

Primary Sidebar

Categories

  • 3-Phase Power (15)
  • 324 IC Circuits (19)
  • 4017 IC Circuits (53)
  • 4060 IC Circuits (25)
  • 555 IC Circuits (98)
  • 741 IC Circuits (19)
  • Amplifiers (58)
  • Arduino Engineering Projects (82)
  • Audio Projects (94)
  • Battery Chargers (82)
  • Car and Motorcycle (94)
  • Datasheets (46)
  • Decorative Lighting (Diwali, Christmas) (33)
  • DIY LED Projects (89)
  • Electronic Components (97)
  • Electronic Devices and Circuit Theory (35)
  • Electronics Tutorial (109)
  • Fish Aquarium (5)
  • Free Energy (35)
  • Fun Projects (11)
  • GSM Projects (9)
  • Health Related (18)
  • Heater Controllers (28)
  • Home Electrical Circuits (101)
  • How to Articles (20)
  • Incubator Related (6)
  • Industrial Electronics (28)
  • Infrared (IR) (40)
  • Inverter Circuits (98)
  • Laser Projects (12)
  • LM317/LM338 (21)
  • LM3915 IC (25)
  • Meters and Testers (63)
  • Mini Projects (171)
  • Motor Controller (66)
  • MPPT (7)
  • Oscillator Circuits (24)
  • PIR (Passive Infrared) (8)
  • Power Electronics (33)
  • Power Supply Circuits (74)
  • Radio Circuits (9)
  • Remote Control (47)
  • Security and Alarm (61)
  • Sensors and Detectors (116)
  • SG3525 IC (5)
  • Simple Circuits (74)
  • SMPS (29)
  • Solar Controllers (61)
  • Timer and Delay Relay (54)
  • TL494 IC (5)
  • Transformerless Power Supply (8)
  • Transmitter Circuits (40)
  • Ultrasonic Projects (14)
  • Water Level Controller (45)

Circuit Calculators

  • AWG to Millimeter Converter
  • Battery Back up Time Calculator
  • Capacitance Reactance Calculator
  • IC 555 Astable Calculator
  • IC 555 Monostable Calculator
  • Inductance Calculator
  • LC Resonance Calculator
  • LM317, LM338, LM396 Calculator
  • Ohm’s Law Calculator
  • Phase Angle Phase Shift Calculator
  • Power Factor (PF) Calculator
  • Reactance Calculator
  • Small Signal Transistor(BJT) and Diode Quick Datasheet
  • Transistor Astable Calculator
  • Transistor base Resistor Calculator
  • Voltage Divider Calculator
  • Wire Current Calculator
  • Zener Diode Calculator

Facebook
Twitter
YouTube
Instagram
My Facebook-Page
Quora

© 2022 · Swagatam Innovations

We use cookies on our website to give you the best experience.
Cookie settingsAccept All
Privacy & Cookies Policy

Privacy Overview

This website uses cookies to improve your experience while you navigate through the website. Please visit the Privacy Policy Page for more info.
Necessary
Always Enabled
Necessary cookies are absolutely essential for the website to function properly. This category only includes cookies that ensures basic functionalities and security features of the website. These cookies do not store any personal information.
Non-necessary
Any cookies that may not be particularly necessary for the website to function and is used specifically to collect user personal data via analytics, ads, other embedded contents are termed as non-necessary cookies. It is mandatory to procure user consent prior to running these cookies on your website.
SAVE & ACCEPT
