LM35 Pinout, Datasheet, Application Circuit

Last Updated on January 1, 2020 by Swagatam 12 Comments

The post explains how to make an LM35 application circuit by understanding its datasheet, pinouts and other technical specifications.

By: SS kopparthy

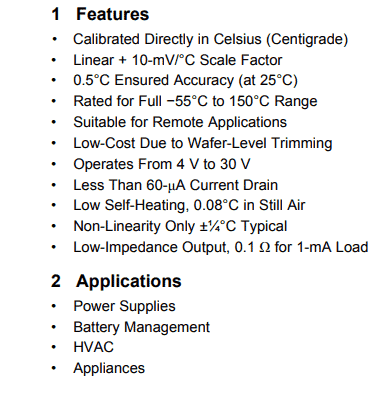

LM35 Main Specifications

The IC LM35 is a temperature measuring device that looks like a transistor (most popular package is TO-92 package).

This device is found in most of the circuits that need to measure temperature as this device is a low-cost, reliable and with an accuracy as high as +-3/4 degrees Celsius.

The low cost of the sensor is because of its wafer-level trimming and calibration.

This IC is much better than the thermistor due to the accuracy in temperature measurement.

LM35 pinout diagram

Pinout Details

As you can see in the above figure, the LM35 IC consists of three pins out of which two are for powering the sensor and the other one is the output signal pin. The sensor can work anywhere from -55 to 150 degrees Celsius.

The output temperature is directly proportional to the temperature change in Celsius. Also the other variant LM35C is available and its temperature range is -40 to 110 degrees Celsius.

Technical Specifications and Features

This device gives out 10mV per degree Celsius rise in temperature.

This device consumes just 60µA current. So it does not drain much of power from the battery or power source.

Also, due to this low current, self heating of the device is as low as 0.1°C.

Other variants of this device that have different packages are also available such as TO-46 and TO-220.

These work same as the traditional one but differ in their usage areas and feasibility for a particular application.

For example, TO-46 metal package can be used to measure surface temperature as the metal package can be directly kept in contact with the surface whose temperature needs to be measured, while the TO-92 package could not as the device measures the temperature mostly based on the temperature of the terminals of the device as metal terminals conduct more temperature than the plastic casing.

Hence the TO-92 packaged LM35 is used to measure air temperatures in most of the circuits.

Block Diagram and Internal Functioning

LM35 block diagram

The above image shows the internal block diagram of the IC LM35. Here we can see that the IC is internally configured around a couple of opamps A1 and A2. The first opamp A1 is configured as an accurate temperature sensor through a feedback loop formed by a couple of BJTs configured as a current mirror.

The current mirror ensures a perfectly linear and a stabilized rate of temperature detection and prevents false triggering or inaccurate temperature readings at the output.

The sensed temperature is produced at the emitter side of the current mirror at a rate of 8.8mV per degree Celsius.

The output is applied to a buffer stage using another opamp A2 which is configured as a high impedance voltage follower.

This A2 stage acts as a buffer to reinforce the temperature to voltage conversion, and presents it at the final output pin of the IC via another high impedance BJT stage configured as an emitter follower.

The final output thus becomes highly isolated from the actual temperature sensor stage and delivers highly accurate temperature sensing response, which can be used by the user with an external switching stage such as a relay driver stage or a triac.

Using a Heatsink

The LM35 sensor IC can also be soldered to a heatsink fin to increase the accuracy and to decrease the sensing and response time in slowly moving air.

To understand much better, let’s take a look at the following circuit that uses LM35 to give an indication when the temperature is above the specified level:

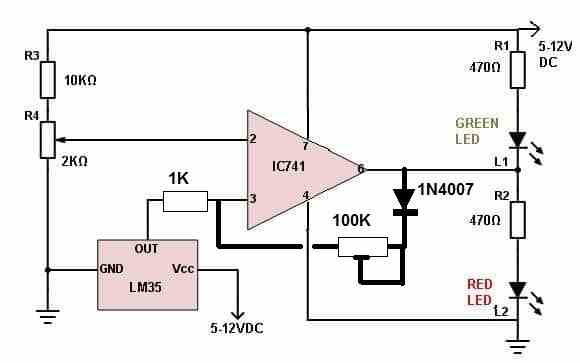

LM35 circuit uses an op-amp IC741 to give an indication

Temperature Detector Circuit Using LM35 IC

The LM35 circuit uses an op-amp IC741 as comparator. The op-amp is configured as an non-inverting amplifier.

That means when the LM35 detects high temperature, the output of the op-amp becomes +ve and the red LED lights up and the temperature falls below the specified level, the output of op-amp becomes –ve and the green LED lights up.

The high temperature level can be set with the help of preset in the circuit.

To set the temperature level for which the red LED lights up, you need to know the actual temperature where the circuit is being tested. For that you can use a multimeter.

As we know that the LM35’s output voltage increases 10mV per degree Celsius rise in temperature, we can use the multimeter to measure the output voltage and for example the voltage is 322mV, then the temperature at the place is 32.2°C.

You can even test the IC if it’s working or not using the above procedure. You can measure the actual temperature using an atmospheric thermometer and compare it with the values obtained with the LM35. You might not get the exact values but you should get close values.

LM35 Relay Control Circuit

An accurate LM35 based temperature controller can be built for controlling an external load such as a heater or a fan by attaching a relay driver stage to our previous as shown below:

After understanding how the above LM35 circuit works, you should have understood how LM35 works practically in circuits.




Previous: Speed Dependent Brake Light Circuit
Next: Motorcycle Accident Alarm Circuit

About Swagatam

I am an electronic engineer (dipIETE ), hobbyist, inventor, schematic/PCB designer, manufacturer. I am also the founder of the website: https://www.homemade-circuits.com/, where I love sharing my innovative circuit ideas and tutorials.
If you have any circuit related query, you may interact through comments, I'll be most happy to help!

You'll also like:

  • 1.  IC LM321 Datasheet – IC 741 Equivalent
  • 2.  Make this EMF Pump Circuit and Go Ghost Hunting
  • 3.  2 Simple Voltage to Frequency Converter Circuits Explained
  • 4.  CMOS IC LMC555 Datasheet – Works with 1.5 V Supply
  • 5.  Battery Current Indicator Circuit – Current Triggered Charging Cut off
  • 6.  Understanding Capacitor Codes and Markings

Please Subscribe (Only if you are Genuinely Interested in our Newsletters)




Reader Interactions

Comments

    Your Comments are too Valuable! But please see that they are related to the above article, and are not off-topic! Cancel reply

    Your email address will not be published. Required fields are marked *

  1. Search Related Posts for Commenting

  2. Pooja says

    Is it complicated to design lm35 sensor circuit n if we design, how much efficiency we could get n whether any changes in output compared to lm35 sensor

    Reply
    • Swagatam says

      It is very simple to build a temperature sensor with LM35, and the efficiency can be expected to be optimum and as per the expected results. The output tripping will be very accurate if the op amp is set correctly.

      Reply
  3. ALIYU YAKUBU says

    please i a student i want make a temperature control standing fan but i was thinking of using thermistor as a sensor but i come across this site while searching on google i need some advice of the the sensor choice my regard

    Reply
    • Swagatam says

      You can try the last circuit from the above article. Adjust the preset until the relay just clicks ON at the desired warm atmospheric temperature. Now keep the unit near a fast moving fan and check whether the relay clicks OFF or not.

      Reply
      • Aliyu NASIR YAKUBA says

        Thanks I did it with LM35 and everything is working also as stated LM35 output is exactly 10mv per centigrade and there is no heating at all and very sensitive

        Reply
        • Swagatam says

          Glad you could solve it….hope you enjoy the circuit now!

          Reply
  4. Samoethong says

    Why lm35 is very easy damaged during testing at first I used 5 volt input and measured wit DMM at output was millivolt 10mv/c° was corrected, after I tested many times output voltage became many thousands millivolt and not correct.

    Reply
    • Swagatam says

      Sorry, that shouldn’t happen. At 5V across pin#1 and #3 can never damage the IC no matter how many times you connect as long as the polarity is right. Sometimes the device is duplicate in quality and may cause such problems.

      Reply
  5. Aneesh ms says

    I make this circuit and working fine.but in few seconds the ic75 become too hot.what is the reason?i used 12 volt 1amp transformer supply .and converted it in to dc

    Reply
    • Swag says

      That is strange, because the IC is rated to easily work with 12V….try using a 7812 IC for the whole circuit and check again.

      Reply
  6. Emmet Romo says

    The circuit doesn´t work.

    Reply
    • Swag says

      find the mistake in your circuit, it will surely work…do it stagewise

      Reply
