Simple Adjustable Industrial Timer Circuit

Last Updated on February 23, 2020 by Swagatam 31 Comments

caution electricity can be dangerous

The post discusses a simple and effective industrial timer circuit which can be universally used for most industrial and home timer based applications. The idea was requested by Mr. Vasilis K.

Technical Specifications

I have a question regarding the 4060 ic wired as "one shot timer." If it can power on the two monostables from the pellet burner circuit, output will be taken from pin #3 which is the last to count to the C1 stage, will that work?

When power is applied to the circuit, the first 2 stages should stay low until the time has elapsed. Pin #3 should be set to activate the cycle, so when I leave home in the morning, I will be starting the timer via the thermostat.

Then when I get home, the burner should be running.

To be more precise, as per the circuit design there are 2 monostable circuits (Stage 1&2) when power is applied via a room thermostat it activates the cycle (Stage 1&2),

My request is when power is applied after the predetermined time of the 4060 has elapsed, is to activate the cycle (Stage 1&2), as there is no need for the burner to run when no one is around, plus this would be ideal as it takes about an hour for the water temperature to reach at 75 Celsius.

The Design

The IC 4060 is an excellent option when it comes to any timer based industrial or home project. This chip being a CMOS device is highly accurate, and is able to generate time delay periods of as high as upto 10 hours with reasonably good accuracy, after this limit the accuracy tends to drift a bit.

Although the IC 4060 generates a fixed 50% duty cycle astable type of oscillations at its various outputs, it can be configured as a one shot timer, as explained in the present article.

Referring to the shown simple industrial adjustable timer circuit, we can see the IC being the central main component of the whole design.

When power is applied or switched ON, C2 momentarily pulses pin#12 of the IC and resets the timing so that the internal oscillator begins counting from zero, moreover the IC can be reset at any moment during the counting period by pressing the given reset switch.

While the IC counts, the output which is being used (pin#3 here) is held at a low logic level or a zero voltage, which keeps the TIP122 switched OFF

Now as per the setting or selection of  R2, P1 and C1, as soon as the set timing elapses, pin#3 goes high, switching ON the transistor and allowing the power to pass to the connected circuit, which now activates.

The feedback diode from pin#3 to pin#11 instantly locks the internal oscillator and latches the circuit so that the circuit freezes in that position until the reset switch is pressed for initiating a new cycle.

Circuit Diagram

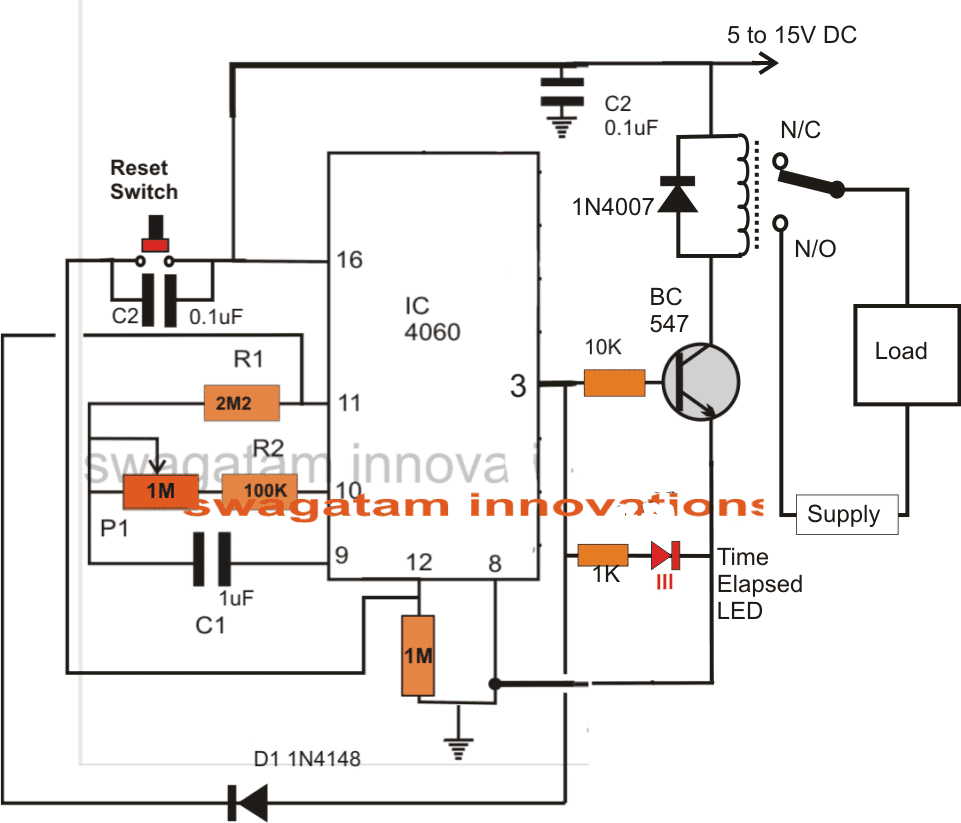

For heavier loads, the above circuit may be upgraded with a relay for identical results but with much higher load current handling capabilities.



Feedback from Mr. Vasilis:

Vasilis Karastergios

Hello swagatam!

TESTED & WORKING, really happy with the outcome, i used the 2nd circuit with the relay as i didn't have that specific transistor, that would be my last request for you, i hope i wasn't that much of a pain, again really thankful for all the help and effort, god bless you!!

Regards

Vasilis K.

You'll also like:

  • 1.  Making a Center Speaker Box C80 for Surround Sound Systems
  • 2.  GSM Pump Motor Controller Circuit using Arduino
  • 3.  Ultraviolet (UV) Sanitizer Circuit for Disinfecting Home Materials
  • 4.  Simple Digital Water Flow Meter Circuit using Arduino
  • 5.  Control Two Submersible Pumps Alternately
  • 6.  Make this Simple Buzzer Circuit with Transistor and Piezo

About Swagatam

I am an electronic engineer (dipIETE ), hobbyist, inventor, schematic/PCB designer, manufacturer. I am also the founder of the website: https://www.homemade-circuits.com/, where I love sharing my innovative circuit ideas and tutorials.
If you have any circuit related query, you may interact through comments, I'll be most happy to help!

Reader Interactions

Comments

    Have Questions? Please post your comments below for quick replies! Comments should be related to the above artcile Cancel reply

    Your email address will not be published. Required fields are marked *

  1. Suresh says

    March 10, 2021

    Hi
    I assembled the circuit with relayoutput,its working for my application ,thanks for ur help,wish u all the best

    Reply
    • Swagatam says

      March 10, 2021

      Sounds great, glad it worked for you!

      Reply
  2. ramesh says

    June 15, 2019

    what is the circuit diagram for cyclic timer switch with adjustable on timing and off timing using potentio meter .

    Reply
    • Swagatam says

      June 16, 2019

      you can try this concept:

      https://www.homemade-circuits.com/how-to-make-simple-programmable-timer/

      Reply
  3. Sunshine says

    May 15, 2019

    Engr.Swag. you have not answered my question, hope all is well. I need to make a RF switching circuit..or any wireless circuit

    Reply
    • Swagatam says

      May 15, 2019

      Sunshine, which question are you reffering to? there are plenty of wireless circuits in this blog, please use the search box on top and type “wireless”

      Reply
  4. Sunshine says

    May 7, 2019

    good day sir….thanks for helping, but engineer Swagatam how will someone show you appreciation? perhaps by giving you gift or any thing..please I need a circuit that will turn ON a relay by 6pm and turn OFF the relay by 6am please help

    Reply
    • Swagatam says

      May 7, 2019

      Thanks sunshine, No problem, I am happy to help without any gifts!

      For a 12 hour accurate timer circuit you can perhaps try the following design:

      https://www.homemade-circuits.com/how-to-make-long-duration-timer-circuit/

      Reply
  5. Tanaka says

    March 20, 2019

    Hi Swagatam,
    I have simulated your design plan on proteus, but it does not run.
    Can you see if I have simulated properly?
    https://imgur.com/n4Ub9Yx

    Reply
    • Swagatam says

      March 20, 2019

      Hi Tanaka, I have tested this circuit practically, for me it worked perfectly. By the way I don’t use simulators, instead I use my knowledge and practical verification for confirming a circuit. Sometimes circuits don’t work initially due to some minor mistake, which we have to troubleshoot with little effort to make them work…

      Reply
      • Tanaka says

        March 20, 2019

        Thanks, i Will try again.

        Reply
  6. Godson says

    September 4, 2017

    Hello sir Swagatam,
    I have connected the circuit as shown in the post with the indicator LED for testing but rather than staying off, the LED keeps blinking before staying on and then resumes blinking again, and then stay on. The process continues indefinitely. What could be the problem sir?

    Reply
    • Swagatam says

      September 4, 2017

      Hello Godson, that shouldn’t happen, because initially the red LED must stay OFF, and as soon as pin#3 goes high after the elapsed period the positive from this pin should latch pin#11 stopping the counting and causing the LED to become solid (pin#3 latched at permanent high).

      you can try changing the pin#12 0.1uF cap with a higher value capacitor and see if it helps…also while testing power the circuit from a good 12V DC power supply.

      Reply
  7. Godson Ugo says

    August 30, 2017

    Thank you very much for this post sir. I have been looking for it for some time now. I want to design mine in such a way that I won’t be needing the reset button. I want it to work in such a way that anytime power is applied to it, it activates the Relay for 3hours and then deactivate the relay after three hours until the power source is removed. And when the power source is applied again, the process repeats itself. Here are my questions,
    1. In the comment, you said that in order to keep the relay activated during the timing period, the BC547 should be replaced with BC557 and that the emitter should be connected to the positive supply and relay-diode assembly should be connected between the collector of BC557 and GND. Please I need you to confirm that sir.
    2. What value of P1 and C1 should I used in order to achieve 3hours of timing? If there is a formula for it, kindly help me with it.
    Thank you for all your efforts sir.

    Reply
    • Swagatam says

      August 30, 2017

      Hi Godson, yes that’ correct, use PNP to initiate the relay with power switch ON, the push button is for resetting the timer to zero, it is not required to start the timing, the timer will automatically start as soon as power is switched ON. the reset button can be used to reset the timing to zero anytime.

      Reply
      • Swagatam says

        August 30, 2017

        use any small arbitrary value for C1, note the timing delay for this C1 practically and then divide 3 hours with this delay value.

        make sure to convert 3 hours to seconds if the delay value was in seconds.

        the answer will be your new C1

        Reply
        • Godson Ugo says

          August 30, 2017

          Thank you very much for the response sir. I’ll do as you said. In the case of using a PNP transistor, how will the “time elapsed LED” be connected?

          Reply
          • Swagatam says

            August 30, 2017

            connect the LED through a 1K resistor from positive to the pin of the IC associated with the BC557 base

            Reply
  8. andrea says

    January 13, 2017

    hi swagatam,
    is possible obtain a opposte one-shot timer, in other words, when i press the button the load is swicth on for a preset time, elapsed this time, the load switch off and the timer remain in wait for next push.
    thank you so much

    Reply
    • Swagatam says

      January 14, 2017

      Hi andrea,

      you can achieve it through the first two circuit shown in the following article

      https://www.homemade-circuits.com/2012/05/simple-delay-timer-circuits-explained.html

      or this

      https://www.homemade-circuits.com/2014/11/long-duration-timer-circuit-using.html

      or you can also use a IC555 monostable circuit design

      Reply
  9. Sriram Kp says

    June 5, 2016

    Thank u. waiting for the circuit…

    Reply
  10. Swagatam says

    May 20, 2015

    you are corect june, in order to get an opposite response, you can try replacing the BC547 with a BC557 and connect its emitter to the positive supply while the relay/diode assembly across the collector/ground of the circuit, this will invert the response of the relay as per your preference

    Reply
    • Asadul Huq says

      April 10, 2019

      You can use 2 NPN transistors instead of one PNP transistor.

      Reply
      • Swagatam says

        April 10, 2019

        yes that’s possible!

        Reply
  11. Swagatam says

    May 19, 2015

    Hi June,

    you can achieve up to more than 10 hours of delay with reasonable accuracy with this IC.

    P1 and C1 are the two components which directly determine the delay durations, increasing their values will increase the delay length and vice versa. the results will be very linear so it's just a matter of some trial and error until you are able to calibrate the P1 knob dial with the related delay magnitudes (numbers)

    Reply
  12. Boyet Raquel says

    May 3, 2014

    gud day can you please post an effective PWM for my HHO. 12v, 60 A.

    thanks a lot in advance

    Reply
    • Swagatam says

      May 4, 2014

      you can try the one given in the following link, the motor points may be used as the supply for the electrodes

      https://www.homemade-circuits.com/2012/05/make-this-pwm-based-dc-motor-speed.html

      Reply
  13. jason bobis says

    March 21, 2014

    Sir.. Can you please design for me a circuit that counts down from 30 seconds to 0,that has a reset button which brings back the timer to 30. And also a pause button,this circuit will serve as a 30 second shot clock for amateur basketball. This is what I need for my school project.
    Thank you sir in advance.
    Hoping for your help.

    Reply
    • Swagatam says

      March 21, 2014

      Hi Jason, I'll try to do it soon.

      Reply
  14. uel man says

    October 22, 2013

    sir i already emailed you the diagram.

    Reply
  15. Swagatam says

    October 16, 2013

    Helo lwn2012

    You will have to show me the diagram that you have constructed only then i would be able to provide an appropriate suggestion.

    Reply
