Solar Powered Induction Heater Circuit

Last Updated on April 13, 2022 by Swagatam 28 Comments

electricity is dangerous warning message

In this post we discuss an induction cooker/heater design which may be powered from a solar panel voltage. The idea was requested by Mr. Vamshee

Technical Specifications

My name is Vamshee and i am from hyderabad , India I am a small time entrepreneur looking to promote and sell new age products into the market .

Right now really interested in renewable energy resources .

After reading your blog and being following it from a while I would really appreciate your interest being hired by me if you are interested in the project about induction cooking with solar panel at a very very cheaper cost .( would like to introduce it to the poor ) with the help of govt schemes here in my state .

Specs what i was looking was about

180w solar panel

transformerless inverter ( built inside the induction cooker)

max output of 500W induction stove ( Coil type )

Usage for : heating water,milk , make one time meal in a day .

I am sorry if the specs i gave you might be wrong as i am not from a science background ,but just some calculations reading from the internet . so i have no idea about this , but just have the concept and can sell the product .

I have gone through 12v cooking pans and stuff like those on google but in vain to find any solutions .

I hope to hear from you soon about this project and make it prospective to talk about a bright future .

Regards

Vamshee

The Design

As per the specifications a 500 watt output is intended to be achieved from a 180 watt solar panel which may not be feasible in the practical world, therefore the correct solar panel parameter for the proposed solar induction heating system should be approximately 600 watt, or two 180 watt panel in parallel can also be tried for optimal results, this won't be cheap, though.

The panel specs could be anywhere from 30 to 44 V and the amp rating between 20 and 10 amps, and will require a buck regulator in order to step down the voltage to the required levels for the induction heater circuit.

A suitable induction heater circuit can seen below which uses a half bridge driver topology, the schematic is pretty straightforward and may be understood as follows:

Circuit Diagram

The circuit is driven from a 24 V DC supply, at current ranging up to 15 amps. A 7812 voltage regulator drops the input voltage to 12V for the driver IC which is a standard half bridge driver IC IRS2153 or any other similar.

The push pull output from the IC drives a pair of mosfets which in turn forwards the oscillations to the main work coil of the induction heater via a DC blocking capacitor and an impedance matching inductor.

The blocking capacitor prevents excessive current from passing through the work coil and stops damaging the mosfets while the inductor makes sure no disturbing harmonics get into the line and induce inefficiencies into the system.

The 376 nF tank capacitors are used to achieve a resonance with the work coil at about 210 kHz frequency which is set by the R/C network across pin2 and pin3 of the driver IC. The 33k resistor could be made variable for fine tuning or optimizing the resonance effect.

The Work Coil Size

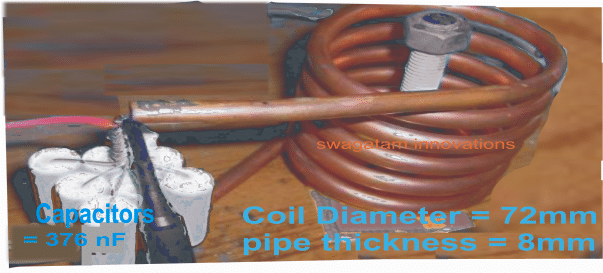

The work coil dimensions and the resonant capacitor arrangement are provided in the image below:

Buck Converter Specifications

A buck converter for converting the panel high voltage to the required 24 V for the induction heater may be built with the help of the following diagram:

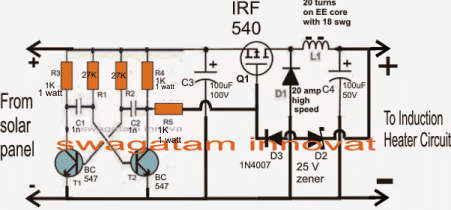

T1, T2 together with C1, C2 and the associated resistors form a classic astable multivibrator (AMV) with a set frequency of around 30 kHz.

The panel volatge is fed to the above AMV and oscillated at the said frequency before feeding it to the buck converter stage made by employing a mosfet and an associated diode, inductor stage.

During the switch OFF periods an equivalent amount voltage is delivered from L1 in the from of back EMFs which is appropriately filtered and supplied to the connected induction heater circuit across the output terminals.

C4 makes sure the converted bucked voltage is free from any ripples and helps in producing a cleaner DC for the induction heater circuit.

The regulated 24 V DC at the outputs may be achieved by roughly winding the correct number of turns for L1 through some trial and error and also by the incorporation of D2 which ultimately stabilizes the output voltage to the required levels.

You'll also like:

  • 1.  Simple Thermostat Circuit Using Transistors
  • 2.  Simple Temperature Indicator using Thermistors
  • 3.  Solar Cellphone Charger Circuit
  • 4.  Solar Drip Irrigation Circuit for Indoor Gardens
  • 5.  Using Treadmill Exercise Bike to Charge Batteries
  • 6.  Temperature to Voltage Converter Circuit

About Swagatam

I am an electronic engineer (dipIETE ), hobbyist, inventor, schematic/PCB designer, manufacturer. I am also the founder of the website: https://www.homemade-circuits.com/, where I love sharing my innovative circuit ideas and tutorials.
If you have any circuit related query, you may interact through comments, I'll be most happy to help!

Subscribe for the Latest Posts




Reader Interactions

Comments

    Your Comments are too Valuable! But please see that they are related to the above article, and are not off-topic! Cancel reply

    Your email address will not be published. Required fields are marked *

  1. Vinay Rao says

    HI Swagatam,

    Can we use 2 12v Tubular Batteries(which is used for inverters)as a input for this induction heating coil circuit?

    Reply
    • Swagatam says

      Hi Vinay, yes you can use 12V tubular batteries but make sure these are rated at minimum 150AH combined

      Reply
  2. angelajohn says

    hi sir,

    i would like to implement a smaller version of this one as my mini project…like for a 8W/12V DC solar panel…what changes will i have to make in the circuit…

    Reply
    • Swagatam says

      Hi angela, 8 watt is very less, I don't think you can make anything red hot with this power.

      still you can try, by using thinner wires for the work coil, and reduce its diameter slightly, also you can tweak the 33k resistor a bit and find the optimal frequency to increase the efficiency

      Reply
  3. Unknown says

    Hi Swagatam,
    I will try this circuit. All i need to know is a bit detail about how to make the work coil. Is it made with a hollow copper pipe?

    Reply
    • Swagatam says

      Hi, yes it needs to be made using hollow copper tube for facilitating water cooling through the pipe if required

      Reply
      • Keith says

        Hi I have just joined. This is a brilliant website and i have been looking for a while but stumbled across this 1. My name is Keith and I wondering if i could use the induction heater at the starting point of copper pipe to heat the whole pipe so water flows through from a further distance to have more heating time?

        Reply
        • Swagatam says

          Hi, thank you for liking the website, I appreciate it. You can definitely build the intended project for heating water through pipe, however I would recommend the following circuit instead, since it is a tested design:

          https://www.homemade-circuits.com/simple-induction-heater-circuit-hot/

          Reply
  4. mehul k. dudhat says

    Hi,
    I am looking 9v battery or AA battery water heater for boil of 100ml water. Please suggest me how to do this?

    Reply
    • Swagatam says

      Hi, you can try the following concept:

      https://www.homemade-circuits.com/2016/05/small-induction-heater-circuit-for.html

      but 9V PP3 batt will not work…you may have use many number AAA cells for getting the results.

      Reply
  5. Aayushi Aggarwal says

    Hello sir!! We (me and my team) are looking forward to develop a solar induction stove to be used in households on regular basis. So can you please tell us that what specifications are required for the same so that cost also remains minimized?

    Contact No.-9971650252

    Reply
    • Swagatam says

      Hello Aayushi,

      Induction heater is a difficult project which will need to be practically built and experimented for finalizing an optimized design, I would recommend you to build the following simplest induction heater circuit:

      https://www.homemade-circuits.com/2013/10/simple-induction-heater-circuit-hot.html

      and then gradually modify its coil so that it can take the shape of a cook top induction heater.

      A detailed video is presented on youtube using the above circuit, you can watch that for a detailed guidance.

      Reply
  6. Mmdoh 554 says

    Hello Sir, I hope you put the whole fitter and planning for such work but runs on 12-volt battery and AMP to not more than 5 per hour and we are waiting for your response sir

    Reply
    • Swagatam says

      hello Mmdoh, I have explained it here

      https://www.homemade-circuits.com/2016/09/designing-induction-heater-circuit.html

      Reply
  7. mwa daniel okocha says

    Y’ello Swagatam,
    Am just a beginner and not well vast in electronic and induction,but i want to make a cooker which…………
    > uses a 6v or 12v batteries
    > can cook for a day
    Am sorry if my description is not good,so can you help me with its schemetic and how should i work on it
    thanks

    Reply
    • Swag says

      Hi mwa, you can try the concept which is explained in the above article. But you can achieve your plans only after gaining good practical experience with these circuits. First try to build a small sample circuit, if you succeed then you can proceed slowly with bigger ones.

      Reply
  8. kushal says

    what inverter topology have you used in this circuit ?

    Reply
    • Swag says

      first one is half-bridge, second one is buck converter

      Reply
      • kushal says

        half bridge with quasi or series converter topology ?

        Reply
        • Swag says

          it is a series resonant topology

          Reply
  9. Carlos Duque says

    Dear, I am from Ecuador, my name is Carlos Duque, I am looking for 60Volts 100 amp, induction circuit for induction cooking, I produce DC infrared cooker, but induction is more efficient, please if you can contact me for starting this business, please let me know
    regards

    Reply
    • Swagatam says

      I am really sorry Carlos, I only have a theoretical knowledge regarding induction heating, practical knowledge is not good. So it will difficult for me to guide you in this regard with confidence.

      Reply
  10. Varun Mishra says

    Hello Sir, How to make a 1000watt DC induction cooker which can be operated by Solar Panel. Can you provide us circuits? please guide us…

    Reply
    • Swagatam says

      Hello Varun, you can use the 1st concept presented in the link below

      https://www.homemade-circuits.com/simple-induction-heater-circuit-hot/

      use a 30 V 40 amp solar panel, and make sure to use good heatsinks for the MOSFeTs

      Reply
  11. J K BARIK says

    hello
    can i use 100uH coil in place of 1.5uH. what changes required?
    how to use cooker coil in DC?

    Reply
    • Swagatam says

      100uH cannot be used in place of 1.5uH

      Reply
  12. soparkar sanjay says

    sir i tried solar powered induction heater, it is not working, whats wrong i cannot trace, i think 6th pin of ic should be connected at the junction of drain source of mosfet where the DC blocking cap is placed.

    Reply
    • Swagatam says

      Sanjay, you are right pin#6 must go the junction of the drain source of the mosfets and the blocking capacitor. I will correct the diagram soon.

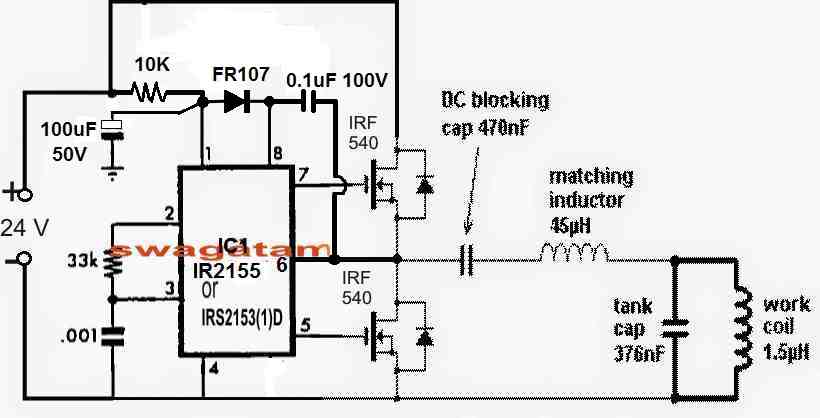

      I think the diagram should be designed in the following manner, as suggested in the datasheet of the IC:
