How to Make a RFID based Attendance System

Last Updated on December 5, 2024 by Swagatam 19 Comments

In this post I will show how to construct a RFID based attendance system, which can record attendance of 12 students / staffs for a given time window and this system can record up to 255 attendances per person.

What is RFID Attendance System

We don't need any introduction regarding the RFID based attendance system, it is being used in colleges, office, libraries to know how many times a person or how many number of people has come in and out at what time.

In this project we will be constructing a simplest RFID based attendance system which does not overcomplicate the project.

In this project we will be using RTC module, which is utilized for enabling and disabling the attendance system within a given time period, so that we can keep the late comers at bay.

The RFID module “RFID-RC522” which can do read and write operations on NXP based RFID tags. NXP is lead producer of RFID tags in the world and we can get them on online and offline stores easily.

A 16 x 2 LCD display is used, which is to showcase information such as time, date, number of attendance, etc.

And finally an Arduino board is utilized which is the brain of the project. You may choose any version of board.

Now let’s move on to schematic diagrams:

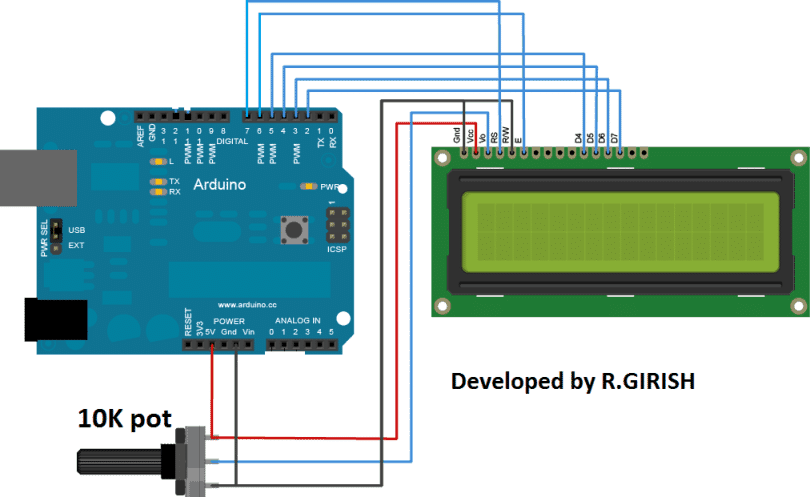

Arduino to LCD display connection:

Just connect the wiring as per the below diagram and use 10 kilo ohm potentiometer to adjust the contrast.

LCD

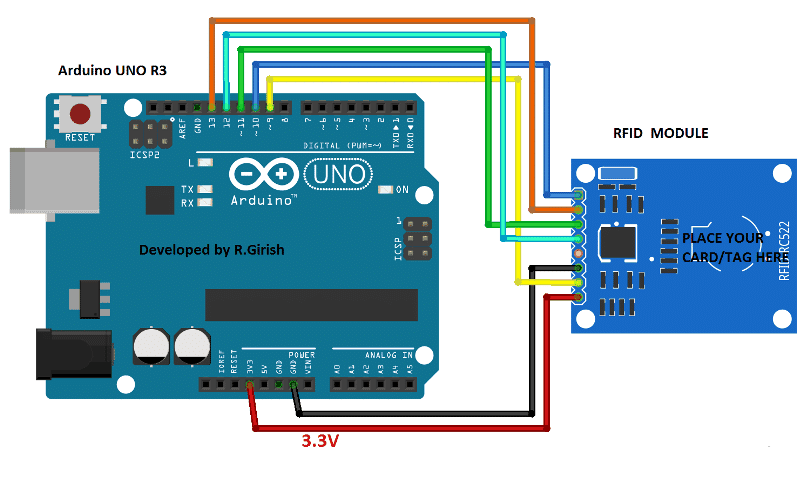

Arduino to RFID module connection:

RFID

The RFID module must be powered by 3.3V and 5V can damage the on board components. The RFID-RC522 module works on SPI communication protocol while communicating with Arduino.

Rest of the circuit:

The Arduino can be powered from 9V wall adapter. There is a buzzer and LED to indicate that the card is detected. There are 4 buttons provided for viewing the attendance, clearing the memory and “yes” and “no” buttons.

That concludes the hardware part.

Please download the following library files:

Link1: github.com/PaulStoffregen/DS1307RTC

Link2: github.com/PaulStoffregen/Time

Link3: github.com/miguelbalboa/rfid.git

Now we have to set the correct time to RTC module to do this, follow the below steps with completed hardware setup.

  • Open the Arduino IDE.
  • Navigate to File> Examples> DS1307RTC> SetTime.
  • Upload the code.

Once the code is uploaded to Arduino, open the serial monitor. Now the RTC is synchronized with the time of your computer.

Now you have to find UID or unique identification number of all 12 RFID cards/tags. To find UID, upload the below code and open the serial monitor.

//-------------------------Program developed by R.Girish------------------//
#include <SPI.h>
#include <MFRC522.h>
#define SS_PIN 10
#define RST_PIN 9
MFRC522 rfid(SS_PIN, RST_PIN);
MFRC522::MIFARE_Key key;
void setup()
{
Serial.begin(9600);
SPI.begin();
rfid.PCD_Init();
}
void loop() {
if ( ! rfid.PICC_IsNewCardPresent())
return;
if ( ! rfid.PICC_ReadCardSerial())
return;
MFRC522::PICC_Type piccType = rfid.PICC_GetType(rfid.uid.sak);
if (piccType != MFRC522::PICC_TYPE_MIFARE_MINI &&
piccType != MFRC522::PICC_TYPE_MIFARE_1K &&
piccType != MFRC522::PICC_TYPE_MIFARE_4K)
{
Serial.println(F("Your tag is not of type MIFARE Classic, your card/tag can't be read :("));
return;
}
String StrID = "" ;
for (byte i = 0; i < 4; i ++)
{
StrID +=
(rfid.uid.uidByte[i] < 0x10 ? "0" : "") +
String(rfid.uid.uidByte[i], HEX) +
(i != 3 ? ":" : "" );
}
StrID.toUpperCase();
Serial.print("Your card's UID: ");
Serial.println(StrID);
rfid.PICC_HaltA ();
rfid.PCD_StopCrypto1 ();
}
//-------------------------Program developed by R.Girish------------------//

  • Open serial monitor.
  • Scan the card/tag on RFID module.
  • Now you will see some hexadecimal code for each card.
  • Write it down, we will be entering those data in the next program.

The main program:

//-------------------------Program developed by R.Girish------------------//
#include <LiquidCrystal.h>
#include <EEPROM.h>
#include <SPI.h>
#include <MFRC522.h>
#include <Wire.h>
#include <TimeLib.h>
#include <DS1307RTC.h>
#define SS_PIN 10
#define RST_PIN 9
MFRC522 rfid(SS_PIN, RST_PIN);
MFRC522::MIFARE_Key key;
const int rs = 7;
const int en = 6;
const int d4 = 5;
const int d5 = 4;
const int d6 = 3;
const int d7 = 2;
const int LED = 8;
boolean ok = false;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);
const int list = A0;
const int CLM = A1;
const int yes = A2;
const int no = A3;
int H = 0;
int M = 0;
int S = 0;
int i = 0;
int ID1 = 0;
int ID2 = 0;
int ID3 = 0;
int ID4 = 0;
int ID5 = 0;
int ID6 = 0;
int ID7 = 0;
int ID8 = 0;
int ID9 = 0;
int ID10 = 0;
int ID11 = 0;
int ID12 = 0;
char UID[] = "";
// **************************** SETTINGS ************************ //
// ------ From -------- // (Set the time range for attendance in hours 0 to 23)
int h = 21; // Hrs
int m = 00; // Min
// ------- To ------- //
int h1 = 21; // Hrs
int m1 = 50; //Min
// ---------------- SET UIDs ----------------- //
char UID1[] = "F6:97:ED:70";
char UID2[] = "45:B8:AF:C0";
char UID3[] = "15:9F:A5:C0";
char UID4[] = "C5:E4:AD:C0";
char UID5[] = "65:1D:AF:C0";
char UID6[] = "45:8A:AF:C0";
char UID7[] = "15:9F:A4:C0";
char UID8[] = "55:CB:AF:C0";
char UID9[] = "65:7D:AF:C0";
char UID10[] = "05:2C:AA:04";
char UID11[] = "55:7D:AA:04";
char UID12[] = "BD:8A:16:0B";
// -------------- NAMES -----------------------//
char Name1[] = "Student1";
char Name2[] = "Student2";
char Name3[] = "Student3";
char Name4[] = "Student4";
char Name5[] = "Student5";
char Name6[] = "Student6";
char Name7[] = "Student7";
char Name8[] = "Student8";
char Name9[] = "Student9";
char Name10[] = "Student10";
char Name11[] = "Student11";
char Name12[] = "Student12";
// ********************************************************** //
void setup()
{
Serial.begin(9600);
lcd.begin(16, 2);
SPI.begin();
rfid.PCD_Init();
pinMode(yes, INPUT);
pinMode(no, INPUT);
pinMode(list, INPUT);
pinMode(LED, OUTPUT);
pinMode(CLM, INPUT);
digitalWrite(CLM, HIGH);
digitalWrite(LED, LOW);
digitalWrite(yes, HIGH);
digitalWrite(no, HIGH);
digitalWrite(list, HIGH);
}
void loop()
{
if (digitalRead(list) == LOW)
{
Read_data();
}
if (digitalRead(CLM) == LOW)
{
clear_Memory();
}
tmElements_t tm;
if (RTC.read(tm))
{
lcd.clear();
H = tm.Hour;
M = tm.Minute;
S = tm.Second;
lcd.setCursor(0, 0);
lcd.print("TIME:");
lcd.print(tm.Hour);
lcd.print(":");
lcd.print(tm.Minute);
lcd.print(":");
lcd.print(tm.Second);
lcd.setCursor(0, 1);
lcd.print("DATE:");
lcd.print(tm.Day);
lcd.print("/");
lcd.print(tm.Month);
lcd.print("/");
lcd.print(tmYearToCalendar(tm.Year));
delay(1000);
} else {
if (RTC.chipPresent())
{
lcd.setCursor(0, 0);
lcd.print("RTC stopped!!!");
lcd.setCursor(0, 1);
lcd.print("Run SetTime code");
} else {
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Read error!");
lcd.setCursor(0, 1);
lcd.print("Check circuitry!");
}
}
if (H == h)
{
if (M == m)
{
ok = true;
}
}
if (H == h1)
{
if (M == m1)
{
ok = false;
}
}
if ( ! rfid.PICC_IsNewCardPresent())
return;
if ( ! rfid.PICC_ReadCardSerial())
return;
MFRC522::PICC_Type piccType = rfid.PICC_GetType(rfid.uid.sak);
if (piccType != MFRC522::PICC_TYPE_MIFARE_MINI &&
piccType != MFRC522::PICC_TYPE_MIFARE_1K &&
piccType != MFRC522::PICC_TYPE_MIFARE_4K)
{
Serial.println(F("Your tag is not of type MIFARE Classic, your card/tag can't be read :("));
}
String StrID = "" ;
for (byte i = 0; i < 4; i ++)
{
StrID +=
(rfid.uid.uidByte[i] < 0x10 ? "0" : "") +
String(rfid.uid.uidByte[i], HEX) +
(i != 3 ? ":" : "" );
}
StrID.toUpperCase();
if (ok == false)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Attendance is");
lcd.setCursor(0, 1);
lcd.print("Closed.");
delay(1000);
}
if (ok)
{
//-----------------------------------//
if (StrID == UID1)
{
ID1 = EEPROM.read(1);
ID1 = ID1 + 1;
if (ID1 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID1 != 256)
{
EEPROM.write(1, ID1);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID2)
{
ID2 = EEPROM.read(2);
ID2 = ID2 + 1;
if (ID2 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID2 != 256)
{
EEPROM.write(2, ID2);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID3)
{
ID3 = EEPROM.read(3);
ID3 = ID3 + 1;
if (ID3 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID3 != 256)
{
EEPROM.write(3, ID3);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID4)
{
ID4 = EEPROM.read(4);
ID4 = ID4 + 1;
if (ID4 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID4 != 256)
{
EEPROM.write(4, ID4);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID5)
{
ID5 = EEPROM.read(5);
ID5 = ID5 + 1;
if (ID5 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID5 != 256)
{
EEPROM.write(5, ID5);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID6)
{
ID6 = EEPROM.read(6);
ID6 = ID6 + 1;
if (ID6 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID6 != 256)
{
EEPROM.write(6, ID6);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID7)
{
ID7 = EEPROM.read(7);
ID7 = ID7 + 1;
if (ID7 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID7 != 256)
{
EEPROM.write(7, ID7);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID8)
{
ID8 = EEPROM.read(8);
ID8 = ID1 + 1;
if (ID8 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID8 != 256)
{
EEPROM.write(8, ID8);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID9)
{
ID9 = EEPROM.read(9);
ID9 = ID9 + 1;
if (ID9 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID9 != 256)
{
EEPROM.write(9, ID9);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID10)
{
ID10 = EEPROM.read(10);
ID10 = ID10 + 1;
if (ID10 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID10 != 256)
{
EEPROM.write(10, ID10);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID11)
{
ID11 = EEPROM.read(11);
ID11 = ID11 + 1;
if (ID11 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID11 != 256)
{
EEPROM.write(11, ID11);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
//-----------------------------------//
if (StrID == UID12)
{
ID12 = EEPROM.read(12);
ID12 = ID12 + 1;
if (ID12 == 256)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Memory is Full");
lcd.setCursor(0, 1);
lcd.print("Please Clear All.");
for (i = 0; i < 20; i++)
{
digitalWrite(LED, HIGH);
delay(100);
digitalWrite(LED, LOW);
delay(100);
}
i = 0;
return;
}
if (ID12 != 256)
{
EEPROM.write(12, ID12);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Your Attendance");
lcd.setCursor(0, 1);
lcd.print("Registered !!!");
digitalWrite(LED, HIGH);
delay(1000);
digitalWrite(LED, LOW);
return;
}
}
if (StrID != UID1 || StrID != UID2 || StrID != UID3 || StrID != UID4
|| StrID != UID5 || StrID != UID6 || StrID != UID7 || StrID != UID8
|| StrID != UID9 || StrID != UID10 || StrID != UID11 || StrID != UID12)
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Unknown RFID");
lcd.setCursor(0, 1);
lcd.print("Card !!!");
for (i = 0; i < 3; i++)
{
digitalWrite(LED, HIGH);
delay(200);
digitalWrite(LED, LOW);
delay(200);
}
}
rfid.PICC_HaltA ();
rfid.PCD_StopCrypto1();
}
}
void Read_data()
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print(Name1);
lcd.print(":");
lcd.print(EEPROM.read(1));
lcd.setCursor(0, 1);
lcd.print(Name2);
lcd.print(":");
lcd.print(EEPROM.read(2));
delay(2000);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print(Name3);
lcd.print(":");
lcd.print(EEPROM.read(3));
lcd.setCursor(0, 1);
lcd.print(Name4);
lcd.print(":");
lcd.print(EEPROM.read(4));
delay(2000);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print(Name5);
lcd.print(":");
lcd.print(EEPROM.read(5));
lcd.setCursor(0, 1);
lcd.print(Name6);
lcd.print(":");
lcd.print(EEPROM.read(6));
delay(2000);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print(Name7);
lcd.print(":");
lcd.print(EEPROM.read(7));
lcd.setCursor(0, 1);
lcd.print(Name8);
lcd.print(":");
lcd.print(EEPROM.read(8));
delay(2000);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print(Name9);
lcd.print(":");
lcd.print(EEPROM.read(9));
lcd.setCursor(0, 1);
lcd.print(Name10);
lcd.print(":");
lcd.print(EEPROM.read(10));
delay(2000);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print(Name11);
lcd.print(":");
lcd.print(EEPROM.read(11));
lcd.setCursor(0, 1);
lcd.print(Name12);
lcd.print(":");
lcd.print(EEPROM.read(12));
delay(2000);
}
void clear_Memory()
{
lcd.clear();
lcd.print(0, 0);
lcd.print(F("Clear All Data?"));
lcd.setCursor(0, 1);
lcd.print(F("Long press: Y/N"));
delay(2500);
Serial.print("YES");
if (digitalRead(yes) == LOW)
{
EEPROM.write(1, 0);
EEPROM.write(2, 0);
EEPROM.write(3, 0);
EEPROM.write(4, 0);
EEPROM.write(5, 0);
EEPROM.write(6, 0);
EEPROM.write(7, 0);
EEPROM.write(8, 0);
EEPROM.write(9, 0);
EEPROM.write(10, 0);
EEPROM.write(11, 0);
EEPROM.write(12, 0);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print(F("All Data Cleared"));
lcd.setCursor(0, 1);
lcd.print(F("****************"));
delay(1500);
}
if (digitalRead(no) == LOW);
{
return;
}
}
//-------------------------Program developed by R.Girish------------------//

// ---------------- SET UIDs ----------------- //

char UID1[] = "F6:97:ED:70";

char UID2[] = "45:B8:AF:C0";

char UID3[] = "15:9F:A5:C0";

char UID4[] = "C5:E4:AD:C0";

char UID5[] = "65:1D:AF:C0";

char UID6[] = "45:8A:AF:C0";

char UID7[] = "15:9F:A4:C0";

char UID8[] = "55:CB:AF:C0";

char UID9[] = "65:7D:AF:C0";

char UID10[] = "05:2C:AA:04";

char UID11[] = "55:7D:AA:04";

char UID12[] = "BD:8A:16:0B";

//----------------------------------------------//

You have place names here:

// -------------- NAMES -----------------------//

char Name1[] = "Student1";

char Name2[] = "Student2";

char Name3[] = "Student3";

char Name4[] = "Student4";

char Name5[] = "Student5";

char Name6[] = "Student6";

char Name7[] = "Student7";

char Name8[] = "Student8";

char Name9[] = "Student9";

char Name10[] = "Student10";

char Name11[] = "Student11";

char Name12[] = "Student12";

//--------------------------------------------//

Replace student1, student2 with any name you wish or leave it as it is.

You have to set the time from when to when the attendance system should be active, rest of the time the system won’t register the attendance when we scan RFID tag/card:

// ------ From -------- //

int h = 21; // Hrs

int m = 00; // Min

// ------- To ------- //

int h1 = 21; // Hrs

int m1 = 50; //Min

//-------------------------//

The upper part is starting time and the lower part is ending time. You have to enter time in hours from 0 to 23 and minutes from 00 to 59.

Author’s prototype:

Webp.net compress image

If you have any questions regarding this project, feel free to express in the comment section, you may receive a quick reply.

You'll also like:

  • 1.  Interface Accelerometer ADXL335 with LED and Arduino (Circuit Diagram)
  • 2.  How to Make Arduino on Breadboard – Step by Step Instructions
  • 3.  Introduction to I2C LCD Adapter Module
  • 4.  Incubator Using Arduino with Automatic Temperature and Humidity control
  • 5.  Arduino Mains Failure Battery Backup Circuit
  • 6.  Arduino Tachometer Circuit for Precise Readings

About Swagatam

I am an electronics engineer with over 15 years of hands-on experience. I am passionate about inventing, designing electronic circuits and PCBs, and helping hobbyists bring their projects to life. That is why I founded homemade-circuits.com, a website where I share innovative circuit ideas and tutorials. Have a circuit related question? Leave a comment.... I guarantee a reply!

Previous Post: « Arduino Automatic School/College Bell System
Next Post: 3D Moon-Sphere LED Driver with Charger and Dimmer Circuit »

Reader Interactions

Comments

  1. Boby says

    December 27, 2018 at 5:09 pm

    Please help me for ”Attendance is close problem”.

    Reply
    • Swagatam says

      December 27, 2018 at 5:35 pm

      sorry, I won’t be able to suggest much regarding Arduino circuits, since I am not good with it….

      Reply
  2. vijaya says

    July 7, 2018 at 6:12 pm

    sir,
    i constructed the above project by following the steps line by line as u mentioned,but at time of running it. the project is displaying only time and date its not accessing the RFID part please can u help what may be the solution??

    Reply
    • Swagatam says

      July 7, 2018 at 8:54 pm

      Vijaya, I have forwarded the question to Mr. GR, he may reply you soon.

      Reply
    • GR says

      July 7, 2018 at 11:11 pm

      Hi Vijaya,

      My best prediction is that you forget to place the timing.

      // —— From ——– //
      int h = 21; // Hrs
      int m = 00; // Min
      // ——- To ——- //
      int h1 = 21; // Hrs
      int m1 = 50; //Min
      //————————-//

      You have to enter the timing, otherwise the card will ignore if scaned out the set time.
      You have to enter time in hours from 0 to 23 and minutes from 00 to 59.

      While testing set the time from now to next 15 mins. After this particular span time all cards will be ignored.
      Also change your UID and name as per the instruction, if you haven’t.

      Regards

      Reply
    • GR says

      July 7, 2018 at 11:17 pm

      Did you check your RFID tag / RFID reader works properly?

      If not click here and check whether your RFID reader can read “UID” code from your tag : https://www.homemade-circuits.com/make-this-rfid-circuit-using-arduino/

      Regards

      Reply
      • vijaya says

        July 9, 2018 at 2:22 pm

        thank you ir now the project is working absolutely fine .bu i have some doubts regarding project.
        1:the rtc module is setting time according to GMT , i need to set to the local time(+5hours:30minutes) how can i do that??
        2:where is the stored data can be collected ? example: if i placed the tag and my attendance is registered n so does the others how can i get how many tags attendance is registered??
        do we need to extend project for that to collect the whole data of absenties ,presenties and all??

        Reply
        • GR says

          July 9, 2018 at 8:09 pm

          Hi vijaya,

          To get your local time, make sure that your PC is set to local time and upload the RTC time setting code, Instructions are given in this project.

          The attendance data is stored in EEPROM of Arduino, press the button connected to “A0” you can see the attendance registered of all 12 students. All 4 buttons are mandatory for this circuit don’t skip.

          No external project is need to collect attendance data.

          Regards

          Regards

          Reply
  3. Angelo Espada says

    July 1, 2018 at 4:29 pm

    Where is the attendance data stored? Is it possible to view the attendance data?

    Reply
    • Swagatam says

      July 1, 2018 at 7:20 pm

      I am sorry Angelo, I won’t be able to provide help regarding Arduino related circuits since it was written and compiled by another author.

      Reply
    • GR says

      July 7, 2018 at 11:19 pm

      Hi Angelo,

      The attendance data is stored in EEPROM of Arduino and you can view on the LCD, to know more read the full project.

      Regards

      Reply
  4. prabhat says

    April 23, 2018 at 1:17 am

    Can we also interface gsm module in this project , so that each time when rfid card is read then a message can be sent on a mobile no.?

    Reply
    • Swagatam says

      April 23, 2018 at 9:38 am

      Prabhat,

      It may be possible, however customized designs will require a fee for the designing.

      Reply
  5. JHEANVIEL says

    February 12, 2018 at 9:55 am

    WHAT ARE THE COMPONENTS OF THIS PROJECT

    Reply
  6. Rashaka Lufuno says

    February 3, 2018 at 11:56 am

    Nice project , I will be constructing the project, Is it possible to take it further to data logging where the attendance register data can latter stored and reviewed and or printed from the computer
    Thanks for help

    Reply
    • Swagatam says

      February 3, 2018 at 2:08 pm

      Thanks Rashaka,

      We will think about it, and if possible post the modifications in the article.

      Reply
  7. Swagatam says

    December 21, 2017 at 1:41 pm

    Thanks so much Abbey, Do you intend to have an adjustable timer circuit that would dispense the fragrance through some mechanism at given time intervals? please elaborate a bit so that I may get a clear idea of the device….

    Reply
    • Abbey says

      December 22, 2017 at 4:41 am

      Kudos Swag, here is the idea. there are several of it in the open market. mine is manually fill into a manufacture container with spray gun, you press it it realeases. what I want to achieve is how possible to get a container which is more of plastic not sealed container like flit. a plastic type manually refill with a device to mounted on the mouth that can spray at an interver using battery. hope you got it

      Reply
      • Swagatam says

        December 22, 2017 at 10:50 am

        OK thanks, I have understood, possibly I’ll try to design it and publish the article in my website soon….

        Reply

Need Help? Please Leave a Comment! We value your input—Kindly keep it relevant to the above topic! Cancel reply

Your email address will not be published. Required fields are marked *

Primary Sidebar

Subscribe to New Circuit Ideas

Categories

  • Arduino Projects (87)
  • Audio and Amplifier Projects (132)
  • Automation Projects (17)
  • Automobile Electronics (101)
  • Battery Charger Circuits (82)
  • Datasheets and Components (102)
  • Electronics Theory (143)
  • Free Energy (37)
  • Games and Sports Projects (11)
  • Grid and 3-Phase (19)
  • Health related Projects (25)
  • Home Electrical Circuits (12)
  • Indicator Circuits (14)
  • Inverter Circuits (87)
  • Lamps and Lights (142)
  • Meters and Testers (69)
  • Mini Projects (46)
  • Motor Controller (64)
  • Oscillator Circuits (27)
  • Pets and Pests (15)
  • Power Supply Circuits (108)
  • Remote Control Circuits (50)
  • Security and Alarm (64)
  • Sensors and Detectors (100)
  • Solar Controller Circuits (59)
  • Temperature Controllers (42)
  • Timer and Delay Relay (49)
  • Transmitter Circuits (29)
  • Voltage Control and Protection (37)
  • Water Controller (36)

Calculators

  • Battery Back up Time Calculator
  • Capacitance Reactance Calculator
  • IC 555 Astable Calculator
  • IC 555 Monostable Calculator
  • Inductance Calculator
  • LC Resonance Calculator
  • LM317, LM338, LM396 Calculator
  • Ohm’s Law Calculator
  • Phase Angle Phase Shift Calculator
  • Power Factor (PF) Calculator
  • Reactance Calculator
  • Transistor Astable Calculator
  • Transistor base Resistor Calculator
  • Voltage Divider Calculator
  • Wire Current Calculator
  • Zener Diode Calculator
  • Filter Capacitor Calculator
  • Buck Converter Calculator
  • Boost Converter Calculator
  • Solar Panel, Inverter, Battery Calculator
  • Wire Current Calculator
  • SMPS Transformer Calculator
  • IC SG3525, SG3524 Calculator
  • Inverter LC Filter Calculator

People Also Search

555 Circuits | 741 Circuits | LM324 Circuits | LM338 Circuits | 4017 Circuits | Ultrasonic Projects | SMPS Projects | Christmas Projects | MOSFETs | Radio Circuits | Laser Circuits | PIR Projects |

Recent Comments

  • Swagatam on Simple Delay Timer Circuits Explained
  • Swagatam on The Role of Inductor Coil in SMPS
  • Swagatam on 7 Modified Sine Wave Inverter Circuits Explored – 100W to 3kVA
  • Swagatam on 7 Modified Sine Wave Inverter Circuits Explored – 100W to 3kVA
  • Victor on 7 Modified Sine Wave Inverter Circuits Explored – 100W to 3kVA

Company

  • Privacy Policy
  • Cookie Policy
  • About Me
  • Contact
  • Disclaimer
  • Copyright
  • Videos
  • Sitemap

Social Profiles

  • Twitter
  • YouTube
  • Instagram
  • Pinterest
  • My Facebook-Page
  • Quora
  • Stack Exchange
  • Linkedin
  • © 2025 · Swagatam Innovations
