Pressure Cooker Whistle Counter Circuit

Last Updated on February 1, 2020 by Swagatam 36 Comments

caution electricity can be dangerous

This circuit is designed to sense the whistles from a pressure cooker and count the number over a digital display. The system relieves the user from the stress of constantly monitoring the cooker and from manually counting the whistles.

The idea was requested by Mr. P.K. Bajpai

Design Concept

In many of the Asian countries rice is the staple food and to cook rice efficiently a pressure cooker is normally employed. We all know that a pressure cooker is preferred since it is able to cook food quickly through its high steam pressure inside. This saves energy and time both for the user.

Another advantage of this special cooking vessel is the facility to adjust the cooking degree or consistency of the food ingredient through an audible alarm in the form of whistles, also created by steam pressure. The number of whistles allows the user to understand and optimize the texture and the efficiency of the food inside the cooker, and if this is not correctly estimated results in a bad quality food or sometimes even complete destruction of the food.

Electronic Counter for Counting Whistles

As per the request I have designed a simple and cheap whistle counter circuit that will relatively accurately respond to cooker whistles and trigger a digital counter for generating the data over the display.

Pressure Cooker whistle counter circuit
IC 4033 Pinout Details

How the Circuit Works

Referring the image above, the design is basically built using two stages, a sound sensor circuit comprising T1, T2, T3, and a digital clock counter circuit using IC 4033.

The original circuit of the sound sensor was actually an ordinary MIC based amplifier designed to pick all sorts of sounds, and therefore the same design did not appear desirable for this particular project, since here I needed the device to sense only the high pitched whistles and not any other form of sound disturbances.

To modify the sound sensor into a customized whistle sensor I initially thought of applying LM 567 concept so that it filtered only the specific sound frequency.

However I did not want to make the design too complex, rather wanted to keep it simple and cheap, yet reasonably accurate.

This led me to think of an alternate solution using an opamp based high pass filter, but even this could have made the design complex, therefore ultimately I ended up designing a passive high pass filter using a capacitor and the resistor network for accomplishing the purpose.

You can see this inserted in the form C2/R7. This network makes sure that the only the high pitched, high frequency noise is able to pass through T2 and reach T3 for further amplification.

Other lower frequencies will be simply cut off and not allowed to cross the C2/R7 stage.

Before drawing the schematic I confirmed the result by imitating and  creating sharp verbal hissing sounds over the MIC, I was happy to see the connected LED effectively turned ON only to these noises, whereas the other normal loud sounds hardly succeeded to produce any effect. This confirmed the sound filter stage perfectly.

However the counter is not practically checked by me, but I can assure that it will work, since the design is a standard IC 4033 digital counter application design.

Parts List

  • R1 = 5k6,
  • R3 = 3M3,
  • R4, R8 = 33K,
  • R5 = 330 OHMS,
  • R6, R2 = 2K2,
  • R7 = 470K,
  • R9 = 10K,
  • R10 = 1K,
  • R11 = 470 Ohms,
  • C1 = 0.1uF,
  • C2 = 330pF,
  • C3, C5 = 0.1uF ceramic
  • T1, T2 = BC547,
  • T3 = BC557,
  • IC1 = 4033
  • Mic = electret condenser MIC.
  • Display = 7 Segment Common Cathode Type,
  • Push Button = Push to ON type,
  • Battery = 9V PP3 with switch

The Circuit was Successfully Tested and Built by Mr. Pradeep Bajpai. The images of the built prototype can be witnessed below:

whistle counter prototype image

Video Clip: The working proof of the above whistle sensor can be seen in the video which was also contributed by Mr. Pradeep Bajpai.

You'll also like:

  • 1.  Alcohol Detector Meter Circuit using MQ-3 Sensor Module
  • 2.  Surge Arrestor Circuit with Measuring Facility
  • 3.  3 Best Joule Thief Circuits
  • 4.  How to Repair Mosquito Swatter Bats
  • 5.  Wireless Music Level Indicator Circuit
  • 6.  Ultrasonic Smart Automatic ON/OFF Switch Circuit

About Swagatam

I am an electronic engineer (dipIETE ), hobbyist, inventor, schematic/PCB designer, manufacturer. I am also the founder of the website: https://www.homemade-circuits.com/, where I love sharing my innovative circuit ideas and tutorials.
If you have any circuit related query, you may interact through comments, I'll be most happy to help!

Reader Interactions

Comments

    Have Questions? Please post your comments below for quick replies! Comments should be related to the above artcile Cancel reply

    Your email address will not be published. Required fields are marked *

  1. Tushar Parekh says

    November 1, 2021

    Congratulations for a good invention. How can I buy this. Can you please share your number in my mail sevaserve@gmail.com

    Reply
    • Swagatam says

      November 2, 2021

      thank you!! and glad you liked the project, however,I am sorry we don’t sell electronic product from this website

      Reply
      • Yugesh says

        February 24, 2022

        Hi Swag,
        Thank you for sharing this beautiful circuit, I want to keep a buzzer where it should raise alarm when cooker whistle count reaches 5.
        I want to set the whistle count and also once it reaches the count, it starts alarming.

        Please help me to complete the above features.

        Reply
        • Swagatam says

          February 25, 2022

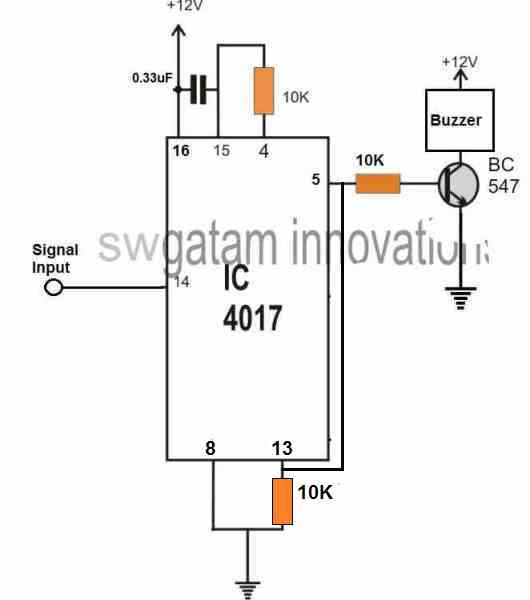

          Thank you Yugesh, you can add the following circuit with the main circuit. Connect pin14 with the collector of T3. Also please connect a 10K resistor across pin14 and ground, which I forgot to show in the following diagram:
