No Load Detector and Cut-off Circuit for Inverters

Last Updated on August 3, 2020 by Swagatam 76 Comments

The post discusses a relay cut-off circuit which may be included in inverters to ensures that under a no load at the output the condition is quickly detected and the supply cut off, preventing the inverter from operating unnecessarily. The idea was requested by Mr. Rajath.

Technical Specifications

I need to adopt a no load auto cutoff system into my inverter, do you have any suitable design, which could help me. or else can you give any idea on how to achieve ,as i need to shut down the output of the inverter when ever there is no current drawn from it. please help me ,here.

Regards Rajath

The Design

In a few of ay previous posts we have learned how to make overload cut off circuit such as:

Low Battery Cut-off and Overload Protection Circuit.

Motor over current protector circuit

However, the present concept deals with an opposite situation wherein a no load condition is supposed to be detected and cut off for persisting, that is we discuss a circuit for preventing a no load condition for inverters.

As shown in the above figure, a no load detector and cut of procedure can be initiated by incorporating this design in any inverter circuit.

The operational details may be understood with the following explanation:

The circuit comprises two stage, namely the current amplifier and sensor stage using the T3/T4 Darlington pair, and a simple delay ON stage using T1, T2 and the associated components.

As soon SW1 is switched ON, the delay-ON timer counting is initiated through C1 which begins charging via R2 and D5 keeping T1 switched off in the process. With T1 switched T2 is switched ON which in turn switches ON the relay.

The relay enables the positive from the battery to get connected with the inverter so that the inverter is able to start and generate the required AC mains to the intended appliances.

With the presence of a load at the output the battery undergoes a proportionate amount current consumption, and in the course Rx experiences a current flow through it.

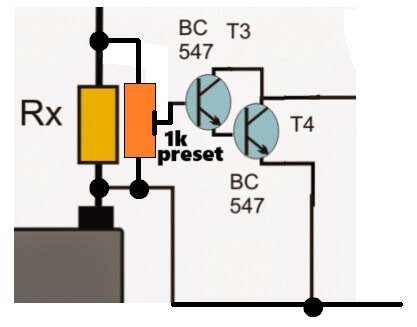

This current is transformed into a proportionate amount of voltage across Rx which is sensed by the T3/T4 Darlington pair and it is forced to switch ON.

With T3/T4 switched ON, C1 is instantly inhibited from getting charged, which leads to an immediate disabling of the delay ON timer, making sure that the output of the inverter continues to supply the voltage to the load.

However, suppose the output of the inverter is devoid of any load (no load condition), T3/T4 is then unable to switch ON, which allows C1 to get charged gradually until the potential across it becomes sufficient to trigger T1.

Once T1 is triggered, T2 is cut off and so is the relay. With the relay contacts cut off and shifted from N/O to the N/C contact, the positive to the inverter is also cut off, the system comes to a stand still.




Previous: Simple Pneumatic Timer Circuit
Next: How to Make a Classroom Debate Timer Circuit

About Swagatam

I am an electronic engineer (dipIETE ), hobbyist, inventor, schematic/PCB designer, manufacturer. I am also the founder of the website: https://www.homemade-circuits.com/, where I love sharing my innovative circuit ideas and tutorials.
If you have any circuit related query, you may interact through comments, I'll be most happy to help!

You'll also like:

  • 1.  3 Simple Battery Voltage Monitor Circuits
  • 2.  Flashing LED Battery Low Indicator Circuit
  • 3.  Simple 3 Phase Inverter Circuit
  • 4.  Cellphone Detector Circuit
  • 5.  How to Design a Solar Inverter Circuit
  • 6.  Designing a Grid-Tie Inverter Circuit

Please Subscribe (Only if you are Genuinely Interested in our Newsletters)




Reader Interactions

Comments

    Your Comments are too Valuable! But please see that they are related to the above article, and are not off-topic! Cancel reply

    Your email address will not be published. Required fields are marked *

  1. Search Related Posts for Commenting

  2. Mahasetra says

    Hello, thank you for your diagram, it is very enriching. I would like to use it to automatically turn off a solar inverter when not in use (no load). Do I have to choose a high-current relay if I plan to draw about 100A from the battery when the inverter is on? Thank you in advance

    Reply
    • Swagatam says

      Thank you, yes the relay contact current rating should be ideally two times more than the intended maximum load current

      Reply
  3. sir says

    hello sir
    i try this circuit but when i disceonect the load and connect it again the relay dosnt switsh on

    Reply
    • Swagatam says

      The load should be high enough to create at least 1 V across Rx and enable T3/T4 conduction. If this does not happen, the relay will not activate

      Reply
      • sir says

        Hello Sir
        -The battery is a12V 8Ah lithium ion
        -The inverter is 12 TO 220V based on transistor astable 60Hz circuit with 2 irf640 mosfet connected to 300 watt center tape toroidal transformer
        -The minimum load is 220V 9W bulbs consuming 0.340 A
        -The system consume 0.16A with no load connected
        -The system consume in total with the bulb connected 0.5 A

        +what i need :
        -The relay to switch on every time i switch on the bulb
        -The relay to switch off every time i switch off the bulb
        How i can make the circuit work with this system ?

        Reply
  4. Godfrey says

    Hello sir pliz help me build a1500watts inverter,I have no idea on how to make one, pliz show me the simplest circuit

    Reply
    • Swagatam says

      Hello Godfrey, you can select any inverter circuit presented in this website and replace the MOSFETs with two parallel IRF540 for each channel. For battery use a 24 V 300 Ah battery, make sure to operate the oscillator circuit through a 7812 IC, and replace the transformer with a 24-0-24v, 70 amp transformer

      Reply
  5. Nikhil says

    Hi,
    I think for battery-powered applications relays are not a good choice, because of high coil current when energized. Can you suggest a good efficient replacement?. My considerations are p-channel power MOSFET or solid-state relays.
    Thanks
    Nikhil

    Reply
    • Swagatam says

      Hi, a relay is much better since it will allow the inverter to work with 100% battery power. The coil consumption will be negligible, may be 1 or 2% of the total inverter consumption. A MOSFET or SSR will dissipate energy causing the inverter to work with lower efficiency.

      Reply
      • Nikhil says

        Thank you, sir, for the reply.
        I have one more doubt.
        There is a chance for a slight increase in the voltage of a battery when a load is disconnected from the battery. Due to this, there is a chance for the relay to switch on again if the no-load battery voltage is above cut-off voltage. So a couple of switchings will occur before a stable state is reached.
        Is this possible ?.
        if possible, then how to solve this?.

        Thanks & regards,
        Nikhil

        Reply
        • Swagatam says

          Thanks Nikhil, The circuit is not voltage dependent, it’s current dependent. Voltage fluctuations will not affect the relay circuit, its the load current that will affect the circuit.

          Reply
  6. Apurva deepak says

    Because there has no center tape transformer will be used for output supply

    Reply
    • Swag says

      You can try this:

      https://www.homemade-circuits.com/2014/01/simplest-full-bridge-inverter-circuit.html

      This is the only recommended design

      Reply
  7. Engr bashir says

    ok Sir i will let u now when i am done

    Reply
  8. Engr bashir says

    CORRECTIONS
    Rx=0.2/0.4(400mA) =0.5ohm

    hence 0.2x5A=1watt

    therefore Rx=0.5 ohm 1 watt
    did i do it correct??

    Reply
    • Swag says

      yes that looks OK to me, use a wirewound type resistor preferably.

      Reply
  9. Engr bashir says

    That mean 0.5x5A=2.5 watt, therefore =0.5ohm 2.5watt resistor?? OR

    0.5x 10A=5 watt, therefore =0.5ohm 2 watt resistor??

    Reply
    • Swag says

      It is not 0.5V it is 0.2 or 0.3V, please check again….

      Reply
  10. Engr bashir says

    ok sir as i did calculate it here

    0.2/0.2=1ohm resisor,
    0.2x.0.2=0.04 watt
    That mean my resistor current must be 0.04watt am i correct???

    Reply
    • Swag says

      it should be:

      Rx = 0.2/0.4 (400 mAmps) = 0.5 ohms

      wattage = 0.2 ohms x inverter maximum current.

      inverter maximum current could be 5 amps or 10 amps as per inverter wattage

      Reply
  11. Engr bashir says

    GOOD MORNING SIR, i hv made this circuit today but the problem is that the Rx resistor is burning why?? it is 1 ohm 1/4w Check the image here

    https://mobile.facebook.com/photo.php?fbid=1835553799874433&id=100002594924040&set=p.1835553799874433&source=47&ref=opera_speed_dial_freefb&__tn__=R

    Reply
    • Swag says

      The formula for wattage will be: voltage drop across the resistor multiplied by the maximum current rating from the inverter battery.

      Here the voltage across the resistor is supposed to be 0.2 or 0.3V, so multiply this by the maximum current draw of the inverter…..that will give you the wattage of the resistor.

      Reply
  12. Engr bashir says

    thank u sir

    Reply
  13. Engr Bashir says

    sir if i got you right that mean if my threshold is 400mA that mean i should calculate the Rx like this:- 0.2/0.2=1ohm resisor,
    0.2x.0.2=0.04 watt

    Reply
    • Swag says

      It should be Rx = 0.2/0.4 = 0.5 ohms, in this case if the load is consuming below 400mA, the relay will switch OFF the inverter

      Reply
  14. Swapnil says

    Sir
    I need to construct the circuit to store combined electricity from solar and piezoelectric in battery and this battery will be used for inverter input .
    It can be possible sir?

    Reply
    • Swag says

      Swapnil, how much voltage and current are you getting from your piezo source???

      Reply
  15. Techie says

    Doesn’t make sense. Even if the inverter is off you are losing the power at Rx resister

    Reply
    • Swag says

      “losing power at Rx?” How? if the relay is switched OFF how will the inverter consume power??

      Reply
  16. Rick says

    Hello Swagatam,

    Everything is 100% clear now!

    Thanks a ton for your time and dedication to explain the formula in detail.

    Very much appreciated!

    Success and regards,
    Rick

    Reply
    • Swagatam says

      You are most welcome Rick!!

      Reply
  17. Swagatam says

    sorry, the answer should be 0.02 watts

    …however 0.1 amps cannot be considered for calculating the Rx wattage, because 0.1 is the minimum current value, we would want it to be multiplied with the max current limit, which could be say for example 2 amps.

    so Rx wattage for this example would be 0.2 x 2 = 0.4 watts

    Reply
  18. Swagatam says

    for example let's assume the current threshold to be 100mA
    T3/T4 triggering potential to be 0.2V, the Rx will be

    0.2/0.1 = 2 ohm

    wattage will be 0.2 x 0.1 = 0.04 watts

    Reply
  19. Swagatam says

    Hi Rick,

    the formula for calculating RX is T3/T4 minimum triggering level divided by the desired current threshold, and the wattage will be the desired current threshold multiplied by the triggering level.
    I hope you got the relationship

    Reply
  20. Rick says

    Hi Swagatam,
    Trying my luck again…
    Ohms value calculation of Rx is clear, but what about Watts?

    Thanks for your help,
    Rick

    Reply
    • Swagatam says

      Hi Rick, I have clarified it in the above comment….

      Reply
  21. Gilligan says

    Thank you for your reply. Do you sell parts? If not, do you have a parts list?

    Reply
    • Swagatam says

      sorry I don't sell parts
      the parts are already specified in the diagram, please click to enlarge it, and copy down the numbers as mentioned in the diagram…all the parts are standard type and does not need any consideration.

      Reply
  22. Gilligan says

    Hi, I came across this post and the concept of your circuit is exactly what I am looking for. I have a 4k 110v AC inverter powered by 4 6v batteries wired in series for 12v. The inverter has a power saver mode built in (25 watts) but it will sense and turn on my 110v AC refrigerator. However, when I open the door, the light bulb is enough to trigger the inverter to power on. Also, the power sensor pulses every 3 seconds which I'm afraid might damage the compressor. So my question is, is the load in your circuit adjustable and how would I do that to sense a low load. Thank you in advance for your reply.

    Reply
    • Swagatam says

      Hi, the resistor Rx value can be altered as per the required specifications, and the inverter can be enabled to switched ON or OFF at any desired load conditions. Higher values will allow the inverter to operate with higher loads only and vice versa,

      Reply
  23. Bady Badru says

    hellow sir i have this 60watts inverter what will be the value of Rx at full load and how can i obtain this minimum load current?

    Reply
    • Swagatam says

      hello Bady, you can use the same value that's indicated in the diagram.

      Reply
  24. Bady Badru says

    hello sir, i would like to ask some few question about this project
    1)the darlington transistor are connected at the negative terminal of the battery how is that possible to work? i cant a clear picture about the current flow of this circuit
    2)if there are designing calculation for the circuit analysis pleas help me with them
    thanks in advance

    Reply
    • Swagatam says

      hello Bady, the Rx resistor needs to be in series with the supply, regardless of the position a voltage will be developed across it whenever the load is switched ON, in the shown design since the current is entering from top of the Rx, the (+) voltage is developed at the base of the associated T3 transistor.

      Reply
  25. Summon Skull says

    Can this circuit work along side your Low Battery Cut-off and Overload Protection Circuit on an inverter, since both circuits would be on the dc side of the inverter.

    Reply
    • Swagatam says

      yes both can work together, the second sensing resistor could be added in series with the above Rx for sensing overload.

      Reply
  26. Angelous Chavez says

    your welcome sir.

    What is the purpose of the Rx?

    what is the right value for the Rx sir?

    Reply
    • Swagatam says

      Rx is for generating the triggering voltage for the associated Darlington transistor

      Rx could be 0.2/1amp = 0.2 ohm

      Reply
  27. Angelous Chavez says

    Sir, one more question what will be the the value of Rx?

    I don't have an idea about that hope you could help me.

    Thanks in advance…

    Reply
    • Swagatam says

      Angelous, The formula for evaluating Rx is given in the diagram..

      Reply
  28. Angelous Chavez says

    Sir what a really good circuit.
    When this circuit conected to the inverter, it can't affect the efficiency and working performance of the inverter?

    Reply
    • Swagatam says

      Thanks Angelous, No it will not affect the inverter performance…

      Reply
  29. Chandan Parashar says

    dear swagatam,
    i have a 10 kv inverter wih 15 batteries ie , 180volts.
    can you suggest me the switch, relay and Rx rating

    Reply
    • Swagatam says

      dear chandan,

      10000/180 = 55 amps, therefore the switch and the relay wil need to be rated at 60 amp minimum…T2 will need to be upgraded to TIP122

      Rx will depend upon the intended minimum wattage at which the inverter may be required to be operative.

      Reply
  30. mexzony says

    Hello sir
    Can I pass a weak pwm signal into a MOSFET driver like a tc4427 and then use it to drive another full bridge driver IC like the ir2110.
    Basically can I drive a MOSFET driver with another MOSFET driver?

    Reply
    • Swagatam says

      no that won't be a good idea…I not able to simulate it in my mind.

      Reply
  31. mexzony says

    By the way it will have a 24v supply for the inverter

    Reply
  32. mexzony says

    Hello sir
    Also I have been trying to see if I can come up with an overload/ surge circuit using the delay circuit concept above. Here what I intend to achieve
    1) the circuit should have a standard 1500w (full load)reference current or voltage.
    Then when we power up a load that is higher than 1500w say 1505w or 1550. As a matter of fact anything from 1501w, instead of indicating an overload immediately it should allow for a minimum amount of time maybe 10secs and then if the load is still at a wattage higher than 1500w it then trips off.

    Remember I said I wanted surge ability for loads that require more starting current so now if we power a load that will go as high as say 3000w surge technically it is higher than 1500w and so the circuit delays tripping off overload signal for maybe as usual 10secs and then if after 10secs the load has not droped to its normal power consumption of say 500w then it trips off.
    Hope you get what am trying to do here.
    Am hoping the circuit can have like a reset button too.

    Reply
    • Swagatam says

      Helo Michael, you can incorporate any of the shown techniques in the following article, and add a 100uF capacitor across base/emitter of the transistor for the delay effect:

      https://homemade-circuits.com/2014/06/simple-current-sensor-circuit-modules.html

      Reply
  33. mexzony says

    Hello sir
    For this delay circuit I can use a 24vdc input I will only increase the relay rating and double the value of the resistors to limit current?
    I then use a 12v regulator to power the circuit after the relay.

    Reply
    • Swagatam says

      Hello Michael, that will do.

      Reply
  34. mexzony says

    Hello sir
    Sir if I input 24v to the lm338 and set an output voltage of 12v.if the voltage falls to 20v will the ouptut 12v from the regulator also fall?

    Reply
    • Swagatam says

      Hello Micheal, no that'll not happen…as long as the input is at least 3V above the set output voltage, you can be sure of the getting a constant voltage as per the set level.

      Reply
  35. mexzony says

    Also sir
    Pls what software do you use to draw those schematics?

    Reply
    • Swagatam says

      I use coreldraw

      Reply
    • mexzony says

      Hello sir
      Question about gate resistors.
      If I use say a 10 ohm resistor say for a push pull and I have just one resistor on each side.
      Now if I parallel say 3 resistors on each side does that mean I use 30 ohm resistors for each mosfet so that the each three MOSFETs in parrell now have 10 ohm resistors when we use the parallel resistor formulae.

      Reply
    • mexzony says

      Also sir
      How many IC's can a 780X regulator power at a time.

      Reply
    • Swagatam says

      Hello Michael,

      you'll need to connect 10 ohm individual resistors in series with each gate of the mosfets…it does not have to be 30 ohms

      780X are rated to deliver 1 amp…so you can can divide this with IC's current specs to get the

      Reply
  36. mexzony says

    Hello sir
    I am looking at this IC hip4081A it's a full bridge driver as I don't want to use two ir2110.
    Sir do you have any experience with this driver?
    It can give out up to 2.5A peak current.

    Reply
    • Swagatam says

      Hello Michael, I have not yet studied this IC so I won't be able to suggest much about its operational details, by the way did you check out its datasheet?

      You can see it here:

      https://www.intersil.com/content/dam/Intersil/documents/hip4/hip4081a.pdf

      Reply
  37. odudu johnson says

    Morning sir, I am a final yr undergraduate am working on an automatic changeover switch with wireless generator control abilities.. Please I need information thankzzz….. oduduj@gmail.com

    Reply
    • Swagatam says

      Hi Odudu, please provide more info regarding your requirement, by the way i may be having this circuit already in my blog….

      Reply
  38. mexzony says

    Hello Sir,
    So if am right by your explanation then it means that
    When the circuit is on T1 base voltage is grounded due to the capacitor charging and this allows a base voltage at T2 thereby switching it on and allowing the really to be switched on.
    Now when load is significant voltage is present at T3 and T4 base which then halts the capacitor charging.
    2) the delay time formulae is t = 1.1RC right?
    3) I also noticed that C has to be large enough to effectively ground voltage at base of T1?

    Reply
    • Swagatam says

      Hello Michael,

      yes that's correct, but a "significant" voltage or current is not required, the operation can be assumed to initiate even with a small load at the output, and that's what the circuit is intended to be like. This can be set by calculating Rx correctly.

      I have not yet checked the formula, it could be correct, but is not important as the value of R2, C1 can be fixed with a little trial and error.

      C does not have to be large, because we want the changeover to take place quickly so basically it should be relatively smaller.

      Reply
  39. mexzony says

    Hello sir,
    Nice and simple concept
    I have a few questions though. While mind simulating the circuit I want to ask
    1) "under signigicant load" when huge currents flow through Rx which converts to proportional voltage and then the Darlington pair(T3 and T4) is triggered with sufficient voltage at its base this should ground the voltage at the base of T1 which leads to having a voltage at the base of T2 which triggers T2 and therefore stops the relay from working right?
    2) how will the capacitor trigger T1 though the diode

    Reply
    • Swagatam says

      Hello Michael,

      thanks!

      1) with T1 switched OFF, T2 is allowed to be switch ON, which in turn keeps the relay ON. The relay contacts in this situation connect across the N/O allowing the inverter to operate.

      so in the presence of load, the relay is allowed to remain activated.

      2) the capacitor while charging pulls the T2 base voltage to the ground level, until it has charged to a point where the base voltage at T1 is able to reach above the 0.6V mark, and at this point T1 switches ON.

      Reply


  40. COMMENT BOX IS MOVED AT THE TOP


Primary Sidebar

Electronic Projects Categories

  • 3-Phase Power (15)
  • 324 IC Circuits (19)
  • 4017 IC Circuits (51)
  • 4060 IC Circuits (25)
  • 555 IC Circuits (92)
  • 741 IC Circuits (18)
  • Amplifiers (48)
  • Arduino Engineering Projects (82)
  • Audio Projects (83)
  • Battery Chargers (75)
  • Car and Motorcycle (87)
  • Datasheets (44)
  • Decorative Lighting (Diwali, Christmas) (31)
  • DIY LED Projects (81)
  • Electronic Components (96)
  • Electronic Devices and Circuit Theory (34)
  • Electronics Tutorial (99)
  • Fish Aquarium (5)
  • Free Energy (34)
  • Games (2)
  • GSM Projects (9)
  • Health Related (16)
  • Heater Controllers (23)
  • Home Electrical Circuits (98)
  • Incubator Related (6)
  • Industrial Electronics (25)
  • Infrared (IR) (39)
  • Inverter Circuits (93)
  • Laser Projects (10)
  • LM317/LM338 (21)
  • LM3915 IC (24)
  • Meters and Testers (52)
  • Mini Projects (152)
  • Motor Controller (64)
  • MPPT (7)
  • Oscillator Circuits (12)
  • PIR (Passive Infrared) (8)
  • Power Electronics (32)
  • Power Supply Circuits (64)
  • Radio Circuits (9)
  • Remote Control (46)
  • Security and Alarm (54)
  • Sensors and Detectors (114)
  • SG3525 IC (4)
  • Simple Circuits (72)
  • SMPS (30)
  • Solar Controllers (60)
  • Timer and Delay Relay (51)
  • TL494 IC (5)
  • Transformerless Power Supply (8)
  • Transmitter Circuits (36)
  • Ultrasonic Projects (12)
  • Water Level Controller (45)

Follow Homemade Circuits

Facebook
Twitter
YouTube
Instagram
My Facebook-Page
Quora

Feeds

Post RSS
Comment RSS

Circuit Calculators

  • AWG to Millimeter Converter
  • Battery Back up Time Calculator
  • Capacitance Reactance Calculator
  • IC 555 Astable Calculator
  • IC 555 Monostable Calculator
  • Inductance Calculator
  • LC Resonance Calculator
  • LM317, LM338, LM396 Calculator
  • Ohm’s Law Calculator
  • Phase Angle Phase Shift Calculator
  • Power Factor (PF) Calculator
  • Reactance Calculator
  • Small Signal Transistor(BJT) and Diode Quick Datasheet
  • Transistor Astable Calculator
  • Transistor base Resistor Calculator
  • Voltage Divider Calculator
  • Wire Current Calculator
  • Zener Diode Calculator

© 2021 · Swagatam Innovations

We use cookies to ensure that we give you the best experience on our website. If you continue to use this site we will assume that you are happy with it.Ok
