TSOP1738 Infrared Sensor IC Datasheet, Pinout, Working

Last Updated on January 1, 2020 by Swagatam 7 Comments

The TSOP17XX series of ICs are infrared sensor devices designed for sensing infrared frequencies only with a specific range of modulated frequency, and interpreting them into a proportionate magnitude of electrical pulses at the output.

This is specifically done to make the sensor immune to other forms of infrared signals present in the atmosphere such as from sunlight, fluorescent tube lights etc. This feature allows the device to be used in various forms of remote control applications without worrying about any form of external false triggering.

The TSOP 1738 series ICs are commonly used in many infrared remote control systems, such TV, remote handsets, or setop box remote controls etc.

The lead frame is used to assemble the preamplifier and PIN diode along with the IR filter which is a design of the epoxy package.

A microprocessor is used to decode the output signal directly which is demodulated in an easy way. The TSOP 1738 series is considered as the standard series for the infrared remote control receiver which in turn supports all the important transmission codes.

Remote IR Sensor Pinout Details

caution electricity can be dangerous

Available IR Sensor Types

TSOP1730 - 30 kHz TSOP1733 - 33 kHzTSOP1736 - 36 kHz TSOP1737 - 36.7 kHzTSOP1738 - 38 kHz TSOP1740 - 40 kHzTSOP1756 - 56 kHz

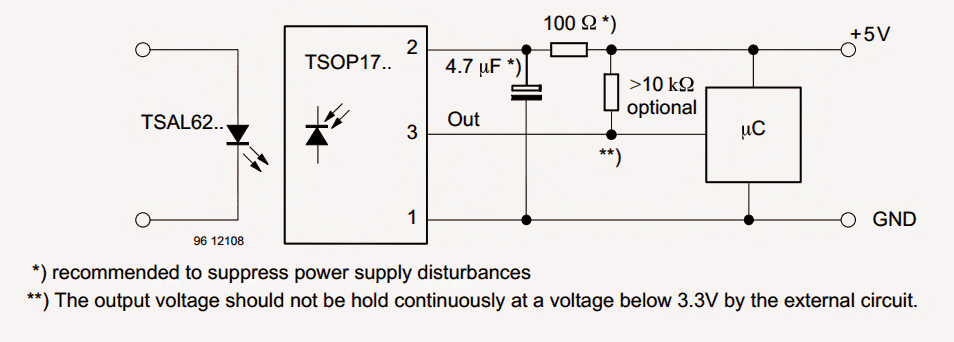

Typical application circuit and connections are shown below

Main Electrical Specifications

The TSOP 17XX series provides two benefits of preamplifier an photo detector in a single package

An internal filter is present for the facilitation of PCM frequency

TSOP 17XX series provides an enhanced shielding against the disturbances produced by the various kinds of electrical fields

It is also compatible to TTL and CMOS

The output active given by the TSOP 17… series is low

It consumes low power

The immunity provided by TSOP 17… series against ambient light is high

TSOP 17XX series enables a continuous data transmission of up to 2400 bps

The device provides 10 cycles/burst which is considered as the most appropriate burst length

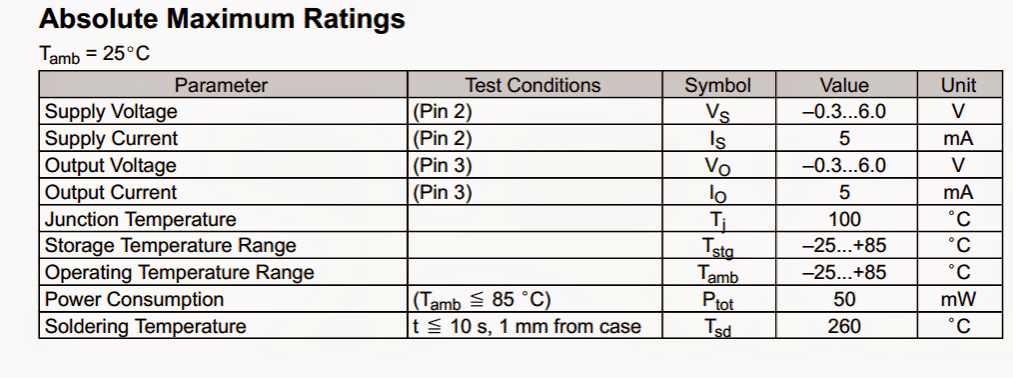

Absolute Maximum Rating

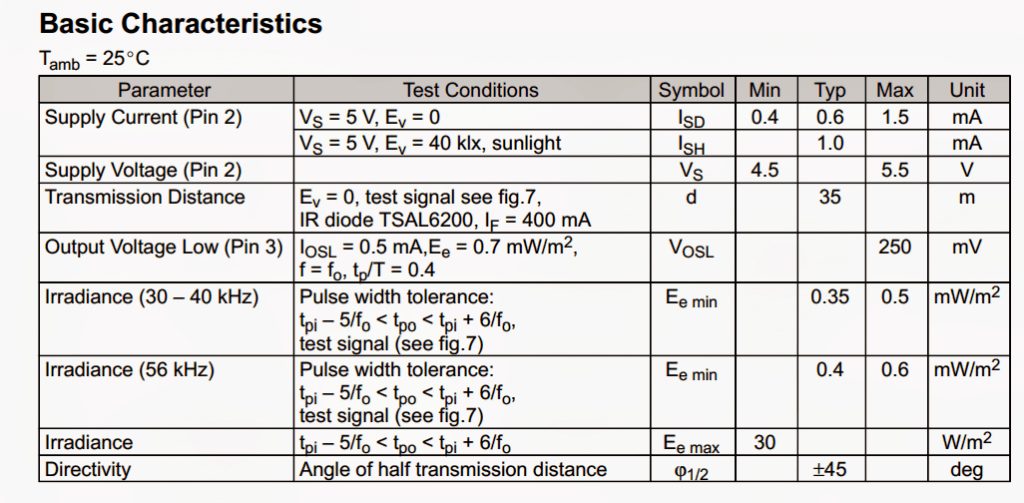

Basic Characteristics

Testing with 38 kHz Frequency - Video

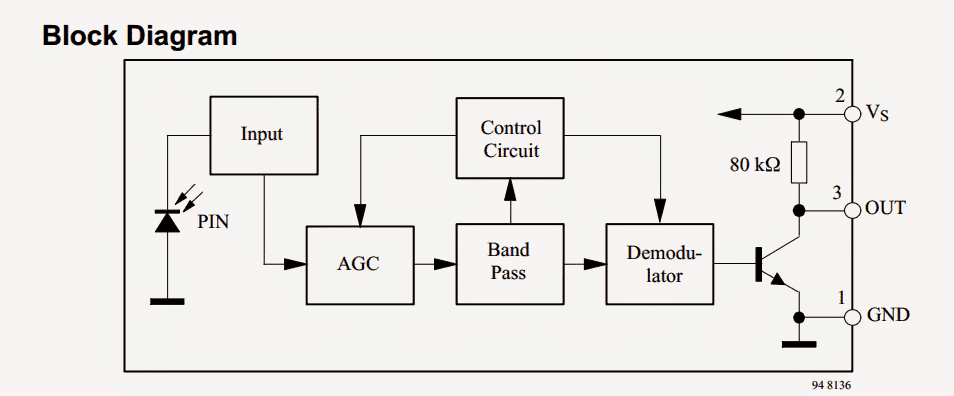

How TSOP1738 IC Works

The circuit design of the TSOP 1738 series has been designed to work in such a way that it avoids any kind of output pulses which occurs unexpectedly due to the signal disturbances and noise.

In order to suppress or avoid this noise and signal disturbances, the TSOP 1738 series works by using different applications such as an integrator stage, a bandpassfilter, and an automatic gain control.

The distinction between a disturbance signal and a data signal can be carried out by reading the burst length, carrier frequency, and the duty cycle.

The criteria or conditions which a data signal needs to fulfill are as follows:

The carrier frequency of the data signal needs to be close to the bandpassfilter’s center frequency such as at a frequency of 38kHz

The burst length of a data signal must be either 10 cycles/burst or longer than that

A gap time after each burst which usually ranges between 10 cycles to 70 cycles for a data signal should necessarily be at the minimum of 14 cycles.

For every burst of the data signal which occurs for duration of more than 1.8ms, the corresponding gap time is essential at some time of the process within the data stream. The length of this gap time must be at least equal to the burst length.

In a data signal, approximately 1400 short burst can be received every second on a continuous basis

The various data formats which are considered suitable are: Toshiba Micom Format, NEC Code, RC5 Code, R-2000 Code, Sharp Code, RC6 code, and SIRCS (Sony Format).

The data signal can be received in a TSOP 17xx series even when a disturbance signal is applied to the TSOP 17xx series. But, the sensitivity in this case is reduced to a specific level where the occurrences of unexpected pulses can happen. The different disturbance signals, which can be suppressed when TSOP 17xx series is used, are:

DC light which can range from a simple tungsten ball to the more powerful natural resource of sunlight

The signal which are continuously received at 38kHz or signal received at frequency other than 38kHz

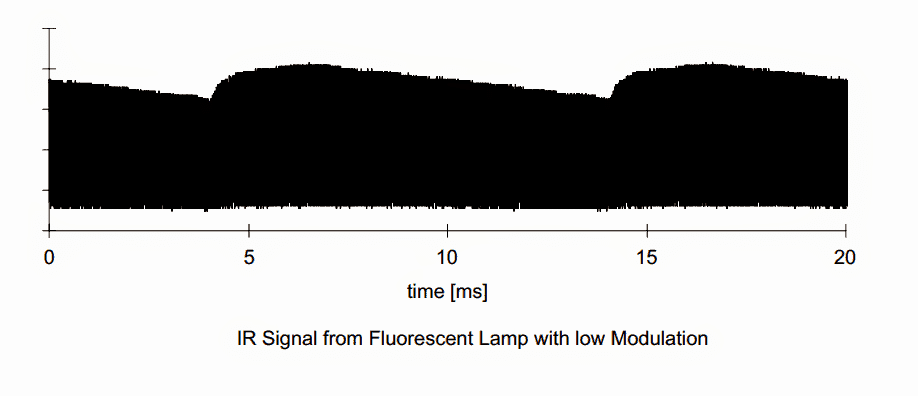

The signals which are received from fluorescent lamps which consist of electronic ballast. The figure given below shows a sample of how the signal modulation occurs.

Get New Circuit Diagrams in your Email

You'll also like:

  • 1.  Understanding IC 4043B, IC 4044B CMOS Quad 3-State R/S Latch – Working and Pinouts
  • 2.  Make this TV Remote Jammer Circuit
  • 3.  IC TDA 7560 Datasheet – 4 x 45W QUAD BRIDGE CAR RADIO AMPLIFIER PLUS HSD
  • 4.  IRF510 Datasheet [100V, 5.6 Amp, N-Channel MOSFET]
  • 5.  Infrared Remote Control Safe Lock Circuit
  • 6.  FM Wireless Microphone Circuit – Construction Details

About Swagatam

Swagatam is an electronic engineer, hobbyist, inventor, schematic/PCB designer, manufacturer. He is also the founder and the author of the website: https://www.homemade-circuits.com/, where he loves sharing his innovative circuit ideas and tutorials.
If you have any circuit related queries, you may interact through comments, and get guaranteed replies from the author.

Reader Interactions

Comments

  1. Norman D Kelley says

    February 11, 2023

    Hi Swagatam,
    I am working with a TSOP 34838 circuit and wonder if it is possible to connect more than one TSOP 34838 in a circuit to cover a 360 degree area. If so, do I need blocking diode to protect one TSOP 34838 from the other TSOP 34838? I am limited by space and would prefer not to use any blocking diodes. Thanks!

    Reply
    • Swagatam says

      February 11, 2023

      Hi Norman,
      If you are connecting the devices in parallel then I think only the OUT pin of the TSOP sensors will require a 1N4148 diode for isolation across each other. Cathode will go to the OUT pin and anode will terminate as the output.

      Reply
  2. Deepqk Nagdev says

    August 12, 2021

    Hello
    Sir my name is Deepak from pune, I want remote control decoder and apply the same frequency on the same device, and it works on mostly on 36 khz to 40 khz.
    Is it possible to make remote that works on any ir gadget.
    If yes please let me know.

    Reply
    • Swagatam says

      August 12, 2021

      Deepak, the TSOP will only respond only to frequencies around 38 kHz, if you want the receiver to respond to all IR frequencies, then you can use an ordinary photo diode instead of TSOP

      Reply
  3. blogg Henry says

    August 12, 2015

    Alguem sabe me responder qual ligação deve ser feita para que eu posso usar esse sensor como detector de obstaculo? (Vou usar no Arduíno). Obg

    Reply
  4. Siraz Shaikh says

    July 9, 2015

    on the serial monitor

    Reply
  5. Siraz Shaikh says

    May 23, 2015

    i am using tsop 1738 sensor with arduino , but every time i press the same button on the remote control , i get different sequence , what should i do so that when i press a particular button on remote , i get a particular sequence , please help me

    Reply
