How to Check a MOSFET Using a Digital Multimeter

Last Updated on June 30, 2021 by Swagatam 49 Comments

ask questions through comments

The post explains how to test mosfets using multimeter through a set of steps, which will show help you to accurately learn the good or faulty condition of a mosfet

Mosfets are Efficient but Complex Devices

MOSFETs are outstanding devices when it comes to amplifying or switching of various kinds of loads. Though transistors are also largely applied for the above purposes, both the counterparts are hugely different with their characteristics.

The amazing efficiency of mosfets are to a great extent neutralized by one drawback associated with these devices.It is the involved complexity which makes these components difficult to understand and configure.

Even the simplest of operations like testing a good mosfet from a bad one is never an easy task especially for the beginners in the field.

Though mosfets usually require sophisticated equipment for checking their conditions, a simple way using a multimeter is also considered effective most of the time for checking them.

We take the example of two types of N-channel mosfets, the K1058 and the IRFP240 and see how these mosfets can be tested using an ordinary digital multimeter through slightly different procedures.

checking mosfet with DMM

How to Check N-Channel Mosfets

1)  Set the DMM to the diode range.

2) Keep the mosfet on a dry wooden table on its metal tab, with the printed side facing you and leads pointed towards you.

3) With a screwdriver or meter probe, short the gate and drain pins of the mosfet. This will initially keep the internal capacitance of the device completely discharged.

4) Now Touch the meter black probe to source and the red probe to drain of the device.

5)You should see an "open" circuit indication on the meter.

6) Now keeping the black probe touched to the source, lift the red probe from drain and touch it to the gate of the mosfet momentarily, and bring it back to the drain of the mosfet.

7) This time the meter will show a short circuit (sorry, not short-circuit rather "continuity).

The results from the point 5 and 7 confirms that the mosfet is OK.

Repeat this procedure many times for  proper confirmation.

For repeating the above procedure each time, you will need to reset the MOSFET by shorting the gate and the drain leads using meter probe as explained earlier.

How to Check P-Channel Mosfets

For P-channel the testing steps will be as per 1,2,3,4 and 5, but the polarities of the meter will change. Here's how to do it.

1)  Set the DMM to the diode range.

2) Fix the mosfet on a dry wooden table on its metal tab, with the printed side facing you and leads pointed towards you.

3) With a any conductor or meter probe, short the gate and drain pins of the P-mosfet. This will initially enable the internal capacitance of the device to discharge, which is essential for the testing process.

4) Now Touch the meter RED probe to source and the BLACK probe to drain of the device.

5) You will find an "open" circuit reading on the meter.

6) Next, without moving the RED probe from the source, remove the black probe from drain and touch it to the gate of the mosfet for a second, and bring it back to the drain of the mosfet.

7) This time the meter will show a continuity or a low value on the meter.

That's it, this will confirm your mosfet is alright, and without any problems. Any other form of reading will indicate a faulty mosfet.

If you any further doubts regarding the procedures please feel free to express your thoughts in the comment section.

How to Test an IRF540 Mosfet

The procedures are exactly similar to the above explained N-channel mosfet testing procedures. The following video clip shows and proves how it may be implemented using an ordinary multi-meter.

Practical Video Tutorial

Simple Mosfet Tester Jig Circuit

If you are not convenient with the above mentioned testing procedure using a multimeter, then you can quickly construct the following jig for checking any N channel mosfet efficiently.

Once you make this jig, you can plug-in the relevant pins of the mosfet into the given G, D, S sockets. After this you just have to press the push button for confirming the mosfet condition.

If the LED glows only on pressing of the button, then your mosfet is fine, any other results will indicate a bad or defective mosfet.

The cathode of the LED will go to the drain side or drain socket.

For p-channel mosfet you could simply modify the design as per the following image

get free help for circuit diagrams

You'll also like:

  • 1.  2 Simple Milliohm Meter Circuits [Measure Low Resistances below 1 Ohm with these Circuits]
  • 2.  Simple ESR Meter Circuit
  • 3.  Microamp Meter Circuit
  • 4.  Arduino Frequency Meter Using 16×2 Display
  • 5.  Simple Circuit Tester Probe – PCB Fault-Finder
  • 6.  Universal BJT, JFET, MOSFET Tester Circuit

About Swagatam

I am an electronic engineer (dipIETE ), hobbyist, inventor, schematic/PCB designer, manufacturer. I am also the founder of the website: https://www.homemade-circuits.com/, where I love sharing my innovative circuit ideas and tutorials.
If you have any circuit related query, you may interact through comments, I'll be most happy to help!

Subscribe for the Latest Posts




Reader Interactions

Comments

    Have Questions? Please post your comments below for quick replies! Comments should be related to the above artcile Cancel reply

    Your email address will not be published. Required fields are marked *

  1. Godfrey says

    June 12, 2022 at 3:35 am

    Dear Sir,
    Please sir, the glow of the LED. Is it by pressing and holding the push button?
    Or just pressing it and releasing the button?

    The result I have using the tester is that the bulb glows when pressing and holding the push button, when I release the button the LED is off.

    Reply
    • Swagatam says

      June 12, 2022 at 8:42 am

      Hi Godfrey,
      Your testing procedure is correct and it shows the MOSFET is good.

      Reply
  2. Dawor says

    January 31, 2022 at 6:17 am

    Circuit for testing is extremlly simple and useful. All my problems solved in half of hour. DMM can’t test high power MOSFET like 2SK2837 but your circuit do the job. Thank you very much.

    Reply
    • Swagatam says

      January 31, 2022 at 10:23 am

      You are welcome, and glad you found the circuit useful.

      Reply
  3. Awambeng Frederick Nji says

    November 13, 2021 at 1:30 am

    Greetings sir,I fine your write very very interesting. I will to learn more about inverters the function and fault tracing. I found the diagram you design for testing p channel MOSFET and N channel very interesting. My appreciation. I like to get to you via email

    Reply
    • Swagatam says

      November 13, 2021 at 8:49 am

      Thank you Frederick, glad you liked the post!

      Reply
  4. Turan BENLİ says

    October 11, 2021 at 1:30 am

    Sayın Swagatom hocam Merhaba yaptığınız tüm çalışmalarınıza teşekkür ederim. Bizler sizlerin bu bilgi paylaşımlarınız sayesinde kendimizi geliştiriyoruz yukarıda bahsettiğiniz K1058 Mosfet transistörün Gate – Source ayakları arasında iki diyot kullanılmıştır. Bu diyotlar niçin kullanılmış
    Bu mosfet transistörün yerine muadil mosfet transistör kullansam devrede çalışır mı. Bende arızalı besleme devresi var burada 26NM60N kullanılmış bunun yerine 26NM60 kullansam çalışır mı? teşekkür ederim.

    Reply
    • Swagatam says

      October 11, 2021 at 10:17 am

      Hello Turan, Glad you found the article helpful!
      Those two diodes are placed internally on the MOSFET package, in order to protect the gate from transients.

      Yes any equivalent mosfet will work. 26NM60N and 26NM60 are probably the same, so can be exchanged

      Reply
      • Turan BENLİ says

        October 19, 2021 at 11:39 am

        Hocam Merhaba cevabınıza çok teşekkür ederim. Kolay gelsin.

        Reply
        • Swagatam says

          October 19, 2021 at 1:44 pm

          You are welcome Turan…

          Reply
  5. Murtala says

    September 16, 2021 at 10:33 pm

    Please sir how to identify the terminal when carry out a test, thanks.

    Reply
    • Swagatam says

      September 17, 2021 at 8:27 am

      You will have to refer to the datasheet of the mosfet for determining the pinouts

      Reply
  6. Rajesh Kumar Singh says

    August 20, 2021 at 6:52 pm

    Really narration is too good with very simple English and very simple schematic diagrams too.
    I would love to read the articles when ever I face problem in solving circuits.

    Reply
    • Swagatam says

      August 20, 2021 at 7:38 pm

      I am glad the article helped you!

      Reply
  7. Steve Turner says

    May 18, 2021 at 3:55 pm

    For dual gate MOSFETS, would you do the test twice swapping the gates every time

    Reply
    • Swagatam says

      May 18, 2021 at 4:20 pm

      Yes that’s correct, however dual gate mosfets are very rare nowadays

      Reply
  8. onur says

    February 10, 2021 at 11:44 pm

    what is difference between N and P channel test circuit ? It looks same .

    Reply
    • Swagatam says

      February 11, 2021 at 5:13 pm

      supply polarity and the LED polarity are opposite

      Reply
      • Onur says

        February 11, 2021 at 10:26 pm

        Ok supply polarity is different in P Channel circuit but LED has no any polarity label. Can you update it please ?

        Reply
        • Swagatam says

          February 12, 2021 at 10:15 am

          The lower diagram is for p channel, the LED polarity are indicated in this diagram. The upper diagram is for N channel mosfet, the LED pin on the drain side will have negative polarity.

          Reply
  9. nipun sana says

    December 19, 2020 at 8:44 am

    thank u sir for your tips.

    Reply
  10. Patrick says

    July 13, 2020 at 9:53 pm

    Dear sir
    Thank you so much for the above simple circuit.Cramming the above 7 steps can be challenging when one needs speedy solution to a circuit problem.I would like you showcase steps for analog testing.most electricians- (electronics) use them.Please is there such a simple circuit for testing inductance and capacitance.I have one inductor i got from scrab which i want to use in a circuit but couldnt find the value on its body.is not here i would have given you what is writen on its body.its a toroid one about 2cm or more in diameter .
    Thank you.

    Reply
    • Swagatam says

      July 14, 2020 at 10:59 am

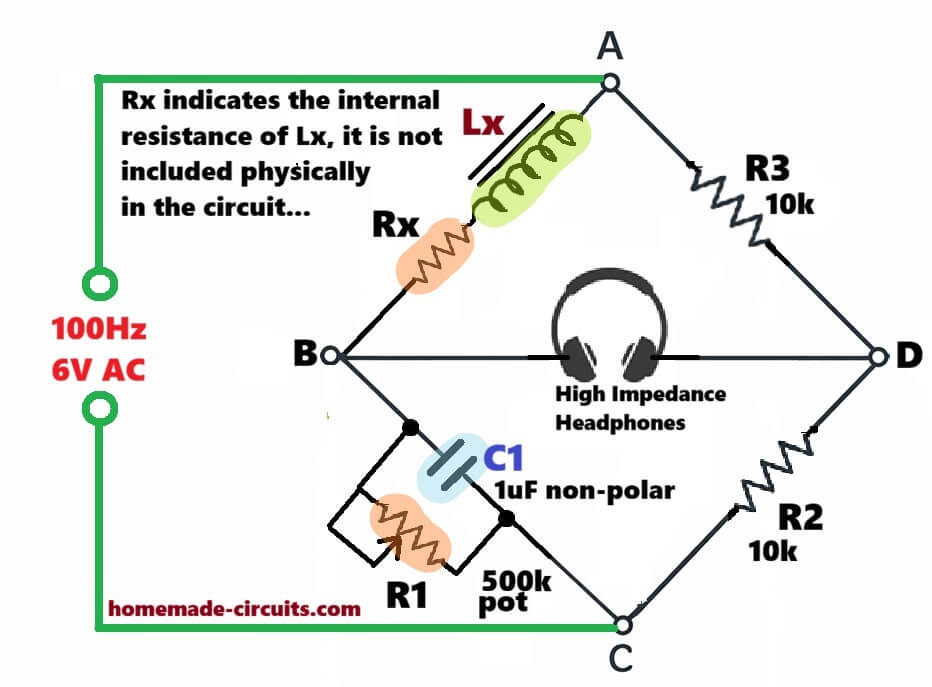

      Patrick, inductance meter and capacitance meter circuits are already published in this website, please use the search box to find them.

      Reply
  11. miracletech says

    April 16, 2020 at 7:58 pm

    Will the Circuit using the LED work for BJT too?

    Reply
    • Swagatam says

      April 16, 2020 at 8:30 pm

      Yes it will, but it won’t check the hFE

      Reply
  12. Vidit Ranka says

    April 10, 2020 at 10:16 pm

    The pic you have shown above is wrong
    its shown source as middle pin but its drain instead
    you can confirm and thank me.

    Reply
    • Swagatam says

      April 11, 2020 at 9:21 am

      Which pic are you referring to? The last two pictures indicate the wire connections only, not the pin orientation.

      Reply
  13. Irulan says

    March 8, 2020 at 11:43 pm

    Doing the test on a NPN Mosfet, I have the continuity between source and draing after having charged the gate but this configuration is quickly (within few seconds) going to a open configuration, without touching anything. My understanding is that there is a parasitic resistance that discharge the gate and thus Mosfet is faulty. Could you confirm my understanding ? For notice, my NPN Mosfet has an integrated zener diod protection.

    Reply
    • Swagatam says

      March 9, 2020 at 9:09 am

      You may be right, because any other result than the explained one indicates a faulty MOSFET, you can further confirm this using the LED jig circuit as shown at the bottom section of the article.

      Reply
  14. Aevolet Gravesd says

    January 8, 2020 at 1:05 pm

    Hello,
    We have extend this offer for you to provide us with a price quote for the item listed below:

    Extech EX350 Digital Multimeter or Compatible————186 pieces

    Payment mode ——————–Net 30

    Looking forward to doing business with your company

    N.B: This offer for quote is only for USA based companies

    Thank you.
    Sincerely yours,
    Aevolet Gravesd
    President, Student Affairs
    CITY COLLEGES OF CHICAGO
    180 N. Wabash
    Chicago, IL 60601

    Reply
    • Swagatam says

      January 8, 2020 at 1:17 pm

      Sorry, presently we are not involved with selling or manufacturing electronic items.

      Reply
  15. hery ephrem says

    July 15, 2019 at 12:38 pm

    Bonjour
    quel est le rôle de diode entre gate et source intégré dans le mosfet?

    Reply
    • Swagatam says

      July 15, 2019 at 1:41 pm

      It’s probably for safeguarding the MOSFET gate from reverse spikes and over voltages.

      Reply
  16. subha says

    July 10, 2019 at 2:08 am

    how I know n or p channel mosfet when it is connected to PCB without looking at ckt?

    Reply
    • Swagatam says

      July 10, 2019 at 8:51 am

      If the source side gets the positive then it’s a p channel.

      Reply
  17. Matthew V says

    June 10, 2019 at 5:50 am

    First you say short the gate and the drain to reset, then you say short the gate and the source to reset. I know it’s gate and drain just a small typo I’m sure.

    Reply
    • Swagatam says

      June 10, 2019 at 11:16 am

      Thank you, yes that was a typo, I have corrected it now!

      Reply
  18. Oludare says

    December 28, 2017 at 12:20 am

    Pls, I’ll like to know if the pin configuration above is same for irf840 and irf1404. Bcos I use your method to test these mosfets bUT they’re not behaving as you said. What do you think am doing wrong. I guess the pins are not in the above order. You can reply through my email if you wish Sir. Thanks.

    Reply
    • Swag says

      December 28, 2017 at 12:44 pm

      The pinout of the two mentioned mosfets are the same.

      Just now I checked the IRF540 as per the above explained instructions and I could check it perfectly, I will the upload a video soon for everybody.

      Reply
  19. Rajesh Yadav says

    July 17, 2017 at 3:19 am

    Sir,
    After connecting supply MOSFET has burning how can I check it in microtek hb1125

    Reply
    • Swagatam says

      July 17, 2017 at 8:22 am

      Rajesh, a mosfet will mostly burn due to a short circuit at the output, connect a fuse in series with the battery to verify the issue…

      Reply
  20. Olanya Kay Amos says

    September 6, 2016 at 12:37 pm

    But I think this article is talking on SO3 MOSFETs,how do I to with SO8 MOSFETs both P & N Channel II meet them on Laptop circuit boards
    Thanks,
    Amos.

    Reply
    • Swagatam says

      September 6, 2016 at 1:10 pm

      the process will be identical and will need to be done twice for the pair…

      Reply
  21. Boo says

    August 14, 2016 at 9:44 pm

    I Have Irfp260n giving me read even after I touched the gate is that mean I have to replace it ?

    Reply
    • Swagatam says

      August 15, 2016 at 11:57 am

      No, it looks OK to me..

      Reply
  22. 1 bestofyoutub3 says

    June 18, 2016 at 7:33 pm

    I cant have any institute in my country
    i need your help to give me some of method to be able to repair any device

    Reply
    • Swagatam says

      June 19, 2016 at 11:53 am

      you can feel free to ask anything about electronic circuits I will try to sort it out for you.

      Reply
  23. anbarasan durairaj says

    July 19, 2015 at 5:00 am

    Sir i want to learn inverter service ,help me to send inverter circuit diagram with service tips

    Reply
    • Swagatam says

      July 19, 2015 at 3:08 pm

      anbarasan, it's not that easy, you'll have to go an institute or a relevant coaching classes to learn it theoretically and practically

      Reply

Primary Sidebar



Categories

  • 3-Phase Power (15)
  • 324 IC Circuits (19)
  • 4017 IC Circuits (52)
  • 4060 IC Circuits (25)
  • 555 IC Circuits (98)
  • 741 IC Circuits (19)
  • Amplifiers (59)
  • Arduino Engineering Projects (83)
  • Audio Projects (94)
  • Battery Chargers (83)
  • Car and Motorcycle (94)
  • Datasheets (46)
  • Decorative Lighting (Diwali, Christmas) (32)
  • DIY LED Projects (89)
  • Electronic Components (97)
  • Electronic Devices and Circuit Theory (35)
  • Electronics Tutorial (109)
  • Fish Aquarium (5)
  • Free Energy (34)
  • Fun Projects (12)
  • GSM Projects (9)
  • Health Related (19)
  • Heater Controllers (28)
  • Home Electrical Circuits (100)
  • How to Articles (20)
  • Incubator Related (6)
  • Industrial Electronics (28)
  • Infrared (IR) (40)
  • Inverter Circuits (98)
  • Laser Projects (12)
  • LM317/LM338 (21)
  • LM3915 IC (25)
  • Meters and Testers (64)
  • Mini Projects (156)
  • Motor Controller (66)
  • MPPT (7)
  • Oscillator Circuits (24)
  • PIR (Passive Infrared) (8)
  • Power Electronics (33)
  • Power Supply Circuits (74)
  • Radio Circuits (9)
  • Remote Control (47)
  • Security and Alarm (61)
  • Sensors and Detectors (118)
  • SG3525 IC (5)
  • Simple Circuits (74)
  • SMPS (29)
  • Solar Controllers (60)
  • Timer and Delay Relay (53)
  • TL494 IC (5)
  • Transformerless Power Supply (8)
  • Transmitter Circuits (40)
  • Ultrasonic Projects (14)
  • Water Level Controller (45)


Circuit Calculators

  • AWG to Millimeter Converter
  • Battery Back up Time Calculator
  • Capacitance Reactance Calculator
  • IC 555 Astable Calculator
  • IC 555 Monostable Calculator
  • Inductance Calculator
  • LC Resonance Calculator
  • LM317, LM338, LM396 Calculator
  • Ohm’s Law Calculator
  • Phase Angle Phase Shift Calculator
  • Power Factor (PF) Calculator
  • Reactance Calculator
  • Small Signal Transistor(BJT) and Diode Quick Datasheet
  • Transistor Astable Calculator
  • Transistor base Resistor Calculator
  • Voltage Divider Calculator
  • Wire Current Calculator
  • Zener Diode Calculator


You can also Chat with me here:

Facebook
Twitter
YouTube
Instagram
My Facebook-Page
Quora



© 2022 · Swagatam Innovations

We use cookies on our website to give you the best experience.
Cookie settingsAccept All
Privacy & Cookies Policy

Privacy Overview

This website uses cookies to improve your experience while you navigate through the website. Please visit the Privacy Policy Page for more info.
Necessary
Always Enabled
Necessary cookies are absolutely essential for the website to function properly. This category only includes cookies that ensures basic functionalities and security features of the website. These cookies do not store any personal information.
Non-necessary
Any cookies that may not be particularly necessary for the website to function and is used specifically to collect user personal data via analytics, ads, other embedded contents are termed as non-necessary cookies. It is mandatory to procure user consent prior to running these cookies on your website.
SAVE & ACCEPT
