BLDC Ceiling Fan Circuit for Power Saving

Last Updated on April 29, 2019 by Swagatam 26 Comments

caution electricity can be dangerous

Within the next few years we may find all conventional capacitor-start type of ceiling fans getting replaced with BLDC ceiling fan circuits, since the concept allows the operation to be extremely efficient and save power by more than 50%.

Replacing Capacitor Start Fan with BLDC Fan

Just as the traditional incandescent lamps today are almost replaced with the much efficient LED lamps, it's now time for the ceiling fans to become smarter and more efficient.

In fact making a BLDC based ceiling fan circuit may be much easier than a capacitor-start type of fan, and could be done by even by an ordinary hobbyist having basic knowledge of electronics.

What you will Need

To achieve this, you may have to acquire or make the following modules:

1) A BLDC controller circuit.
2) An SMPS for powering the BLDC controller circuit
3) An appropriately matched BLDC motor.
4) propeller or blade fitting for the motor.

Main Specifications

The BLDC controller specs can be selected as per the available BLDC motor's specs, for example if you find it comfortable procuring a 220V or 310V BLDC you could probably go for a controller design having matching specs, such as the following circuit which was posted sometime back in this website.

Compact 3-Phase IGBT Driver IC STGIPN3H60

On the other hand if a lower rated BLDC motor in the range of 12V to 50V looks easier to obtain, one could think of selecting the following alternative design, which was also posted recently in this website:

50V 3-Phase BLDC Motor Driver Circuit

Since acquiring a 24V BLDC motor appears to be much easier than a 220V counterpart due to its easy availability in the market, we'll discus the proposed BLDC ceiling fan circuit using a 24V BLDC motor.

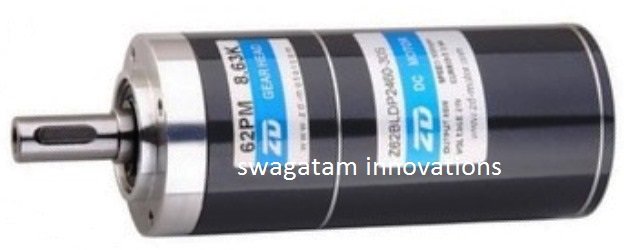

Let's assume we select a 24V 2 Amp BLDC for our ceiling fan, as shown in the following example, make sure it includes sensors with it:

To control this motor and apply it like a ceiling fan, we can use the 50V driver circuit link as indicated in the previous paragraph, and modify the attached diagram to suit the ceiling fan control parameters, as indicated below:

Circuit Diagram

The diagram looks pretty straightforward, and you just need to connect the parts as displayed in the diagram, using a well designed PCB.

The 10K pot serves as the speed control knob for the ceiling fan.

Parts List

  • C1 = 100 µF
  • C2 = 100 nF
  • C3 = 220 nF
  • CBOOT = 220 nF
  • COFF = 1 nF
  • CPUL = 10 nF
  • CREF1 = 33 nF
  • CREF2 = 100 nF
  • CEN = 5.6 nF
  • CP = 10 nF
  • D1 = 1N4148
  • D2 = 1N4148
  • Opamp = IC 741
  • R1 = 5.6 K
  • R2 = 1.8 K
  • R3 = 4.7 K
  • R4 = 1 M
  • RDD = 1 K
  • REN = 100 K
  • RP = 100
  • RSENSE = 0.3
  • ROFF = 33 K
  • RPUL = 47 K
  • RH1, RH2, RH3 = 10 K

Power Supply:

From the above shown BLDC ceiling fan controller circuit, we can understand that the circuit will require a DC power for operating, and this may be fulfilled through any standard SMPS unit, the best example being your laptop charger which can be effectively used for operating the proposed 24V BLDC motor, through the given controller circuit.

In case you decide building the SMPS yourself, you could perhaps try the concept explained in this 12V, 2 amp SMPS circuit.

Here the secondary winding ratio could be suitably doubled for getting the required 24V instead of the specified 12V in the design.

For the 5V supply you can use a 7805 IC based stage, and achieve the 5V requirement for the BLDC controller card.

Conclusion

The main objective of using a BLDC fan is to implement a capacitor less motor (or brushless motor) where the rotor does not carry any winding, which in turn ensures virtually zero friction and therefore extremely high efficiency compared to the normal capacitor type ceiling fan units. You can use any BLDC for that matter, and power the DC circuit and the motor with an SMPS. However it must be noted that motors rated with higher voltage will give higher efficiency for this particular application.

This concludes the explanation regarding the making of a simple BLDC ceiling fan circuit, if you have any related doubts let me know through your valuable comments.

You'll also like:

  • 1.  Simple Hobby Circuit Projects
  • 2.  Making a Flynn Motor
  • 3.  SCR/Triac Controlled Automatic Voltage Stabilizer Circuit
  • 4.  3 Phase Brushless (BLDC) Motor Driver Circuit
  • 5.  Neon Lamps – Working and Application Circuits
  • 6.  PIR Triggered Message Player Circuit

About Swagatam

I am an electronic engineer (dipIETE ), hobbyist, inventor, schematic/PCB designer, manufacturer. I am also the founder of the website: https://www.homemade-circuits.com/, where I love sharing my innovative circuit ideas and tutorials.
If you have any circuit related query, you may interact through comments, I'll be most happy to help!

Reader Interactions

Comments

    Have Questions? Please post your comments below for quick replies! Comments should be related to the above artcile Cancel reply

    Your email address will not be published. Required fields are marked *

  1. Purushottam says

    September 11, 2022

    Good evening Sir. Circuit diagram required for The pcb shown in photograph.
    It has only 4 3055 and one hall sensor.

    Thank you.

    Reply
    • Swagatam says

      September 11, 2022

      Hi Purushottam, I am sorry, I do not have a circuit diagram of a BLDC motor using 4nos of 2N3055 transistor and a single hall effect sensor.

      Reply
  2. Shirajul lslam says

    June 11, 2022

    Can I buy pcb for 12 v ceiling fan & what are the best price

    Reply
    • Swagatam says

      June 11, 2022

      The PCB is not available from this site, but you can search it online and check the results.

      Reply
  3. Anvesh Ananthula says

    March 25, 2021

    Can we replace rotor in an induction motor with magnets and rewind the stator to make it Bldc, can we use the existing slots for new winding, Any known issues?

    Reply
    • Swagatam says

      March 25, 2021

      I don’t think that might be feasible since the BLDC internal structure is very different from an induction motor

      Reply
  4. PANKAJ R DHAMSANIYA says

    November 25, 2020

    1 KW BLDC MOTOR CONTROL USE BIG FAN

    Reply
  5. fernando says

    June 17, 2020

    Good afternoon.
    has a BLDC ceiling fan control board with hall effect sensor, it has 4 4n60c mosfets. and the 4 resistors connected to the source output of these mosfets burst, and I can’t find the electrical diagram to perform the exchange. how do I find out the values ​​of these resistors to exchange them.

    Reply
    • Swagatam says

      June 18, 2020

      Hi, those are current limiters which are actually not too critical. You can calculate them using Ohms law. R = V/I

      the value of I will be the maximum tolerable limit of the MOSFeTs.

      Reply
  6. Nithin says

    November 22, 2019

    Haii,,,what is the number of the PCB.for 220v bldc remote operated ceiling fan

    Reply
  7. Abhaya says

    August 15, 2019

    Actually u already gave it but parts are not available in market kindly give any online vendor which can deliver to my home

    Reply
    • Swagatam says

      August 16, 2019

      You can use any BLDC circuit for building a BLDC fan, the above is only an example, there are plenty BLDC datasheet available online to choose from.

      Reply
  8. Abhaya says

    August 15, 2019

    Bro provide bldc pcb schematic diagram which can help me to repair

    Reply
    • Swagatam says

      August 16, 2019

      BLDC can be very difficult to repair because they are mostly built using SMD, and with special ICs

      Reply
  9. Manikandan says

    May 22, 2019

    Hi Swag, Good Day!!

    I am interested in innovative ideas and predominantly focusing more on the eco-friendly environment. This article is quite useful to get the basic knowledge on the bldc motor control circuit for ceiling fan. However, it would be really helpful, if you could enhance the circuit to include the speed control and is there any efficient way to reduce the power consumption. Thanks

    Reply
    • Swagatam says

      May 22, 2019

      Thanks Manikandan, The 10K pot at top right of the schematic is for controlling speed of the motor. All BLDC drivers will essentially have a feature for the speed control.

      Reply
  10. dennis rollo says

    December 19, 2018

    hi swag.please help me about all kinds of motor winding calculation,any kind that has windings.transformer and designing to desired wattages.i watched you tube,searched in any way,but i can’t find a solid foundation that i can rely on.and if you are willing to show an example of winding diagram,please do so.hope you can have one.thanx.more tutorials.

    Reply
    • Swagatam says

      December 19, 2018

      Hi Dennis, I am not so sure about motor winding, but for transformers I have a few articles published in my website which you can read below:

      https://www.homemade-circuits.com/2015/07/turns-and-voltage-ratios-total-voltage.html
      https://www.homemade-circuits.com/2018/02/how-to-make-transformers.html
      https://www.homemade-circuits.com/2012/02/how-to-design-your-own-inverter.html

      I hope this will help.

      Let me know if you have further questions 🙂

      Reply
      • dennis rollo says

        December 20, 2018

        hi swag.thanx for replying fast.it was useful and dependable for transformer.i just saved it and starting to study.i wish i could find also for motor rewinding calculations and parameters. hope you’re not getting tired of helping us.i always visit your site and i almost saved every circuit you made.simple yet unique, highly efficient,and very lucrative.i wish we had someone like you here in philippines.god bless!

        Reply
        • Swagatam says

          December 20, 2018

          Thank you Dennis, dedicated readers like you are my assets and I am always happy to help them.
          I’ll surely try to get the details for motor winding if possible, and update it here.
          Wish you all the best! God bless you!

          Reply
  11. MANOJ KUMAR PANDA says

    October 2, 2018

    I want to fit a gsm based circuit in my two wheeler to trace the location.So asimple circuit diagram may please be provided.Thanks

    Reply
    • Swagatam says

      October 2, 2018

      sorry, this kind of circuits are never simple. If you are a newcomer then I would recommend buying it readymade which will provide you the results quickly and with minimum efforts.

      Reply
  12. yasin says

    June 21, 2018

    how can i get repair circut which is not working

    Reply
    • Swagatam says

      June 21, 2018

      please give more info regrading all the parts and schematic of your circuit, I may try to help

      Reply
  13. K Premila says

    January 9, 2018

    Sir,
    From the figure of BLDC motor, the shaft seems to be 1 inch thick. Are there suitable fan blades commercially available . Or how the fan blades can be suitably fixed for domestic use can be explained

    Reply
    • Swagatam says

      January 10, 2018

      Premila, there are many different types of BLDc motor available in the market from different companies, you can chose the one which suits your requirement, alternatively you can get an external attachment fabricated for the shaft, as per your specific needs..

      Reply
