How to Build a Pyro-ignition Circuit – Electronic Pyro Igniter system

Last Updated on March 29, 2020 by Swagatam 7 Comments

The following conversation was made by Mr.Tom and me regarding the circuit idea of a pyro-iginition system. I was asked to design the particular circuit idea by Mr.Tom in Fiverr.com.

Technical Specifications

The discussion explains the details of his requirement and how it was almost fulfilled by me

Hi Swagatam,

I was wondering if you could design me a system for a simple pyrotechnic firing system.
An input trigger would (maybe 5-12v) pulse would switch on que1, another pulse would switch cue2 (binary counter).

A total of 16 channels (cues), each cue would be fired with from mosfet pair. Ideally control circuit would have independent power supply to power to cues.

It would also be nice to have a timer which could on pulse fire each cue in sequence e.g. cue1 wait 1 second cue 2 wait 1 second cue3 etc.

Either this of some kind of programmable pic (picaxe etc) so the functionality can be changed.

Kind regards
Tom

Hi Tom,
I can design the control circuit along with the timer, however I'm interested to know what would be connected to the mosfet outputs, because that looks the difficult part if I'm required to set up those.

Thanks
Swagatam

Here's the pyro-ignition control circuit:

Pyro-ignition circuit diagram
caution electricity can be dangerous

Next up is the mosfet output stage:

Pyro-ignition mosfet power

Hi Swagatam,
I don't seem to be able to get the control circuit to work.
Where does the external trigger connect to, if i connect a ground just before R5 can I use this as the trigger?
Thanks
Tom

Hi Tom,

The circuit starts sequencing the moment power is switched ON, so the "power ON" switch itself acts as the external trigger.

When power is switched OFF, the circuit resets and comes to its original state, so that when power is switched ON again, the cycle can repeats.

Thanks,
Swagatam

Hi Swagatam,
That's not what I asked for.
The external trigger should either start the timing sequence if selected or step through each output on each trigger input.
Referringback to the conversation
"
Function 1
Trigger -> Cue 1 fires (stays on for 100ms to ignite firework)
Trigger -> Cue 2 fires (stays on for 100ms)

Function 2
Trigger -> Fires all Cues in sequence (cue 1,2,3 etc) from a internal modifiable timer

Function 3
The circuit diagram also has continuity test for each cue, this should be a low enough current as not to fire igniter this is to be displayed through an led on each cue.
"

Regards
Tom

Hi Swagatam,
I've attached a circuit diagram of an open source wireless firing system, the files can be found here
http://code.google.com/p/openpyro/downloads/list.
The system will fire these http://www.category4.co.uk/igniters/technical/igniters.php
If you're just using a binary counter I think you might need to double the stages(bits) and pulse the clock after 100ms to turn off the mosfets in case of short circuit.

If you could replicate attached circuit without the wireless this would be fantastic. I'll pay for extra gigs if needed.
Thanks
Tom

Hi Tom,
From the above description what I understood is that the particular fireworks needs to be ignited in some sequence.

The fuses would be loaded across the relevant mosfets and the triggering timing would be such that the mosfets are switched only for some fraction of a second, just enough to ignite the fireworks and then shut off.
The sequence will go on repeating until the last mosfet is fired...am I correct?
If my interpretation is right then I can go ahead with the circuit and design it using ordinary discrete components, no need of any microcontrollers.

Thanks,
Swagatam

Yes,
Function 1
Trigger -> Cue 1 fires (stays on for 100ms to ignite firework)
Trigger -> Cue 2 fires (stays on for 100ms)

Function 2
Trigger -> Fires all Cues in sequence (cue 1,2,3 etc) from a internal modifiable timer

Function 3
The circuit diagram also has continuity test for each cue, this should be a low enough current as not to fire igniter this is to be displayed through an led on each cue.

Could this led be also lit when the cue is fired.
Tom

OK, function1 refers to a manual triggering option in the circuit? right?

There should be power to the circuit at all times, when a plus trigger is applied to the system it should step.

Hi Tom,
In our circuit this can be done through a simpler modification, kindly view the attachment.
Pressing S1 initiates the sequencing at any instant and releasing it stops the process.

Thanks
Swagatam.

OK let me try an explain again.
The circuit is a stepper, each trigger pulse it receives progresses the binary counter on one.
So trigger +12 v, binary counter increases one.
Trigger again +12v, binary counter increases one again.
The trigger pulse it totally separate from this circuit and comes from another source.
Easy enough, just a binary counter and outputs.

I also want another function to allow the first trigger pulse to start a timer a clock the binary counter on it's own. This time is variable. So there would be a switch to allow you to access this mode. So binary counter output 1 would feed back into the timer circuit if a switch was closed.

Hi Tom,

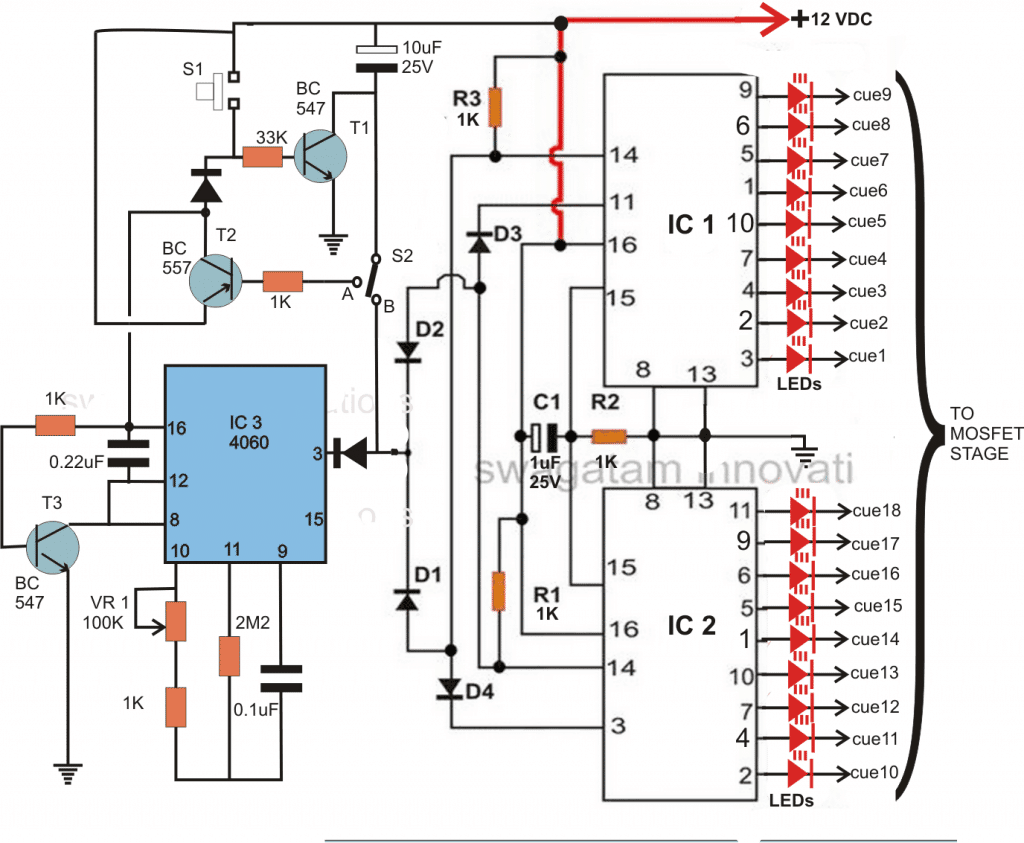

Just have a look at this modification, I hope this one works as intended.
S2 is a SPDT switch, when positioned toward B, it responds to the pressing of S1 and steps with each trigger from S1.
When S2 is moved toward A, pressing S1 does the following things:
T1 and T2 instantly latches powering the timer IC 4060 via T2 and T3.
IC 4060 starts clocking the IC 4017 for the required actions.
Putting S2 back to point B resets the circuit to its previous mode, that is to the manual mode. However to reset the IC 4017, it will need to be switched OFF and then switched ON again.
