Types of Switches, Working and Internal Details

Last Updated on January 8, 2024 by Swagatam 3 Comments

One of the key elements used in the industry of the electronics is the switches. The various different types of tasks for which the switches are used include providing the power supply to a circuit and selection of a specific element for the circuit which will be used in a given specific application or operation.

Table of Contents
  • Basics of a Switch
  • Types of Switches

By: S. Prakash

Since the early days, the electronic equipment industries are using a wide range of switches varieties. The functions of the switches essentially remain same irrespective of the type of the switch which is being used.

Basics of a Switch

The requirements of switches are of large numbers. In a situation which is ideal the resistance of the switches will be infinite while the contacts will have zero capacitance when the opening of the switch is done.

The condition changes when the switch is closed and the resistance becomes zero in this case. In the scenario when the switch is opened, a complete isolation is provided by the switch and the connectivity is completed when the switch is closed.

A switch which is practical and real is unable to achieve this. But, in most of the cases the ideal resistance levels are approximately achieved, especially for the required levels of the voltage and current by the majority of the electronic equipment.

This is false for the electrical systems of high current.

The connectivity and isolation levels provided by the mechanical switches are better in general in comparison to those of the semiconductor switches.

But one of the major disadvantages of the mechanical switches is that their life is limited and their speed is very slow.

Thus, this results in the applicability of the different technologies of the switches for a variety of applications along with a variety of uses to which the different technologies of switches can be put to.

Types of Switches

One can buy a variety of switches available in the market. As discussed above, the different applications use different types of switches and thereby the correct switch needs to be selected for a specific application.

Rotary Switch: The process of rotation is used to operate the rotary switch. In case when the requirement is for more than two positions then the rotary switches come in use for these cases. Such cases include the change of the bands in a radio receiver.



warning message: electricity is dangerous, proceed with caution
rotary switch



A rotor or a spindle is present in the rotary switches along with a number of terminals which are contacted by the circular contractor which is determined by the spindle’s position. Thus, the selection of a number of contacts or one specific contact can be done in this way.

Toggle Switch: A switch which is actuated manually through the use of rocking mechanism, handle, or a mechanical lever is known as toggle switch.

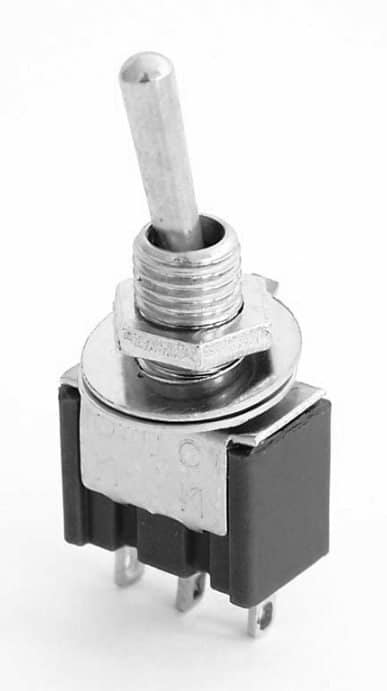

spdt toggle switch

The toggle switch generally consists of two positions. The mechanical mechanism starts functioning after the arm is actuated and holds the arm in any one of the two positions positively.

The designing of the internal mechanics are done in a manner in which the when the arm passes a specific point after the movement starts, and then the arm goes into the next position. Thus, this enables the firm holding of the switch in either of the two positions.

Rocker Switch: The rocker switch is similar to the toggle switch in many areas; especially that it also possesses two positions like the former.

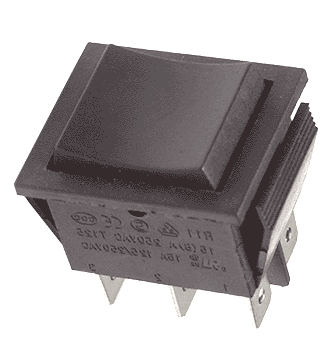

rocker switch

The switching action in the rocker switch is not positive as is in the case of the toggle switch since the former does not follow the mechanism of the latter.

Electronic Switch: The switching of the electrical and electronic circuits can be done through the use of the SCRs, bipolar transistors, and FETs.

The switches are occasionally known as “electronic switches” if the technology used is the lone semiconductor technology.

You'll also like:

  • 1.  High Voltage Transistor MJE13005 – Datasheet, Application Notes
  • 2.  40A Diode with Reverse and Overvoltage Protection
  • 3.  BC636 Transistor Datasheet [45 V 1 Amp PNP Transistor]
  • 4.  How to Connect IC 4066 in a Circuit
  • 5.  BJT 2N2222, 2N2222A Datasheet and Application Notes
  • 6.  Types of Resistors and their Working Differences Explored

Filed Under: Datasheets and Components Tagged With: Details, Internal, Switches, Types, Working

About Swagatam

I am an electronics engineer and doing practical hands-on work from more than 15 years now. Building real circuits, testing them and also making PCB layouts by myself. I really love doing all these things like inventing something new, designing electronics and also helping other people like hobby guys who want to make their own cool circuits at home.

And that is the main reason why I started this website homemade-circuits.com, to share different types of circuit ideas..

If you are having any kind of doubt or question related to circuits then just write down your question in the comment box below, I am like always checking, so I guarantee I will reply you for sure!

Previous Post: « Types of Inductors Explored
Next Post: SMD Resistors – Introduction and Working »

Reader Interactions

Comments

  1. manjunath says

    July 26, 2016 at 9:20 am

    SIR I NEED AN SWITCH THAT SHOULD BE USE FOR DUAL POWER THAT MEANS I SHOULD USE SOLAR POWER(6VOLT DC) AND ELECTRIC DC POWER(6VOLT DC ) . IF SWITCH ON THE SWITCH SOLAR POWER SHOULD SUPPLY AND ELECTRIC POWER SHOULD OFF.
    AND VISA VERSA THANK YOU

    Reply
    • Swagatam says

      July 27, 2016 at 2:00 am

      Manjunath, you can use an SPDT switch, connect the center lead to load, the upper lead to solar DC, and the lower lead to mains DC.

      connect all the negatives in common.

      Reply
    • manjunath says

      July 27, 2016 at 6:59 am

      thank you guruji

      Reply
