This calculator helps us to:
- Find the resonant frequency if we know the capacitance and inductance values.
- Or find the capacitance if we know the frequency and inductance.
- Or find the inductance if we know the frequency and capacitance.
What is LC Resonance

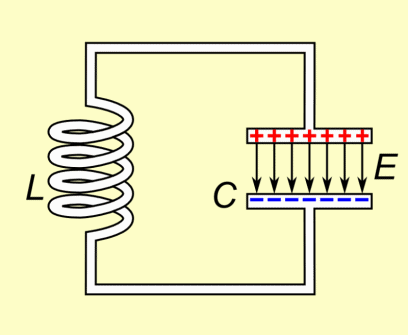

So LC resonance happens when we connect a capacitor (C) and an inductor (L) together in a circuit either in series or in parallel. This thing starts to behave like a kind of natural oscillator. It keeps charging and discharging energy between the capacitor and coil, back and forth like a swinging pendulum.
That swinging frequency where this energy goes round and round perfectly, is called the resonant frequency.
At this point both C and L cancel out each other’s reactance and the circuit allows signals to pass super efficiently at that one special frequency.
Breakdown:
- Capacitor stores energy as electric field.
- Inductor stores energy as magnetic field.
- When you connect them, one throws the energy to the other and back again.
- This creates a natural oscillation at one fixed frequency.
LC Resonance Calculator
How to Use This Calculator
So just do this step-by-step:
Step 1: Choose what you already know
Like:
Do you already have a capacitor and coil? Then pick:
- Value 1: 0.1
- Unit 1: Capacitance (µF)
- Value 2: 10
- Unit 2: Inductance (µH)
Or maybe:
You want a frequency of 100 kHz and you have a 0.01 µF cap? Then do:
- Value 1: 100000
- Unit 1: Frequency (Hz)
- Value 2: 0.01
- Unit 2: Capacitance (µF)
Step 2: Press "Calculate Unknown" button
Then it will show:
- If you gave L and C, it gives you Frequency.
- If you gave f and L, it gives you Capacitance.
- If you gave f and C, it gives you Inductance.
What Formula It Uses
Here is the main thing, this calculator uses this famous LC resonance formula:
f = 1 / (2π√(L × C))Where:
- f is frequency in Hertz.
- L is inductance in Henry.
- C is capacitance in Farad..
It rearranges this formula based on what values you give.
For example:
- If you want to find C then:
C = 1 / (4π²f²L)If you want to find L then:
L = 1 / (4π²f²C)Units Supported:
| Quantity | Supported Units |
|---|---|
| Frequency | Hz (default) |
| Capacitance | µF (default, auto to F) |
| Inductance | µH (default, auto to H) |
You can manually convert other units like nF or mH outside if needed.
Tips & Notes to Remember
- Always give only 2 inputs, so 3rd one will be calculated.
- Never give both inputs of the same type (like Cap and Cap)... it will show error.
- If your result comes in exponential (like 2.3e-7 F) then that means it is very small value, just multiply and convert:
- Example:
2.3e-7 F = 0.23 µF
- Example:
- Capacitance values usually go in µF, nF, or pF.
- Inductance values are in µH or mH for small coils.
- Use ceramic or film caps for high freq LC tanks.
- Avoid electrolytic caps in resonance circuits.
